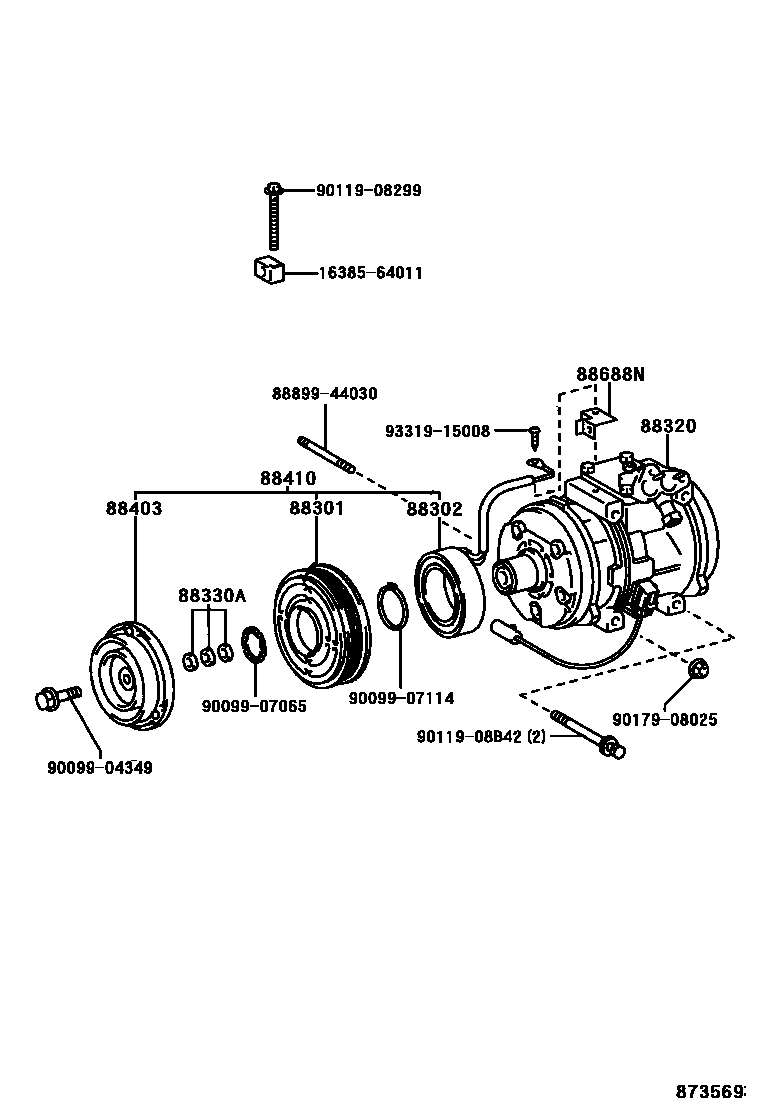

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-44050iSXM10199908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iSXM10199908

88320COMPRESSOR ASSY, COOLER

main88320-48040iSXM10199908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iSXM10199908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iSXM10199908

88410CLUTCH ASSY, MAGNET

main88410-44050iSXM10199908

88688NBRACKET, COOLER

main88688-32670iSXM10199908

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908299

main90119-08299

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

16 parts on this diagram · 1 diagram in section
