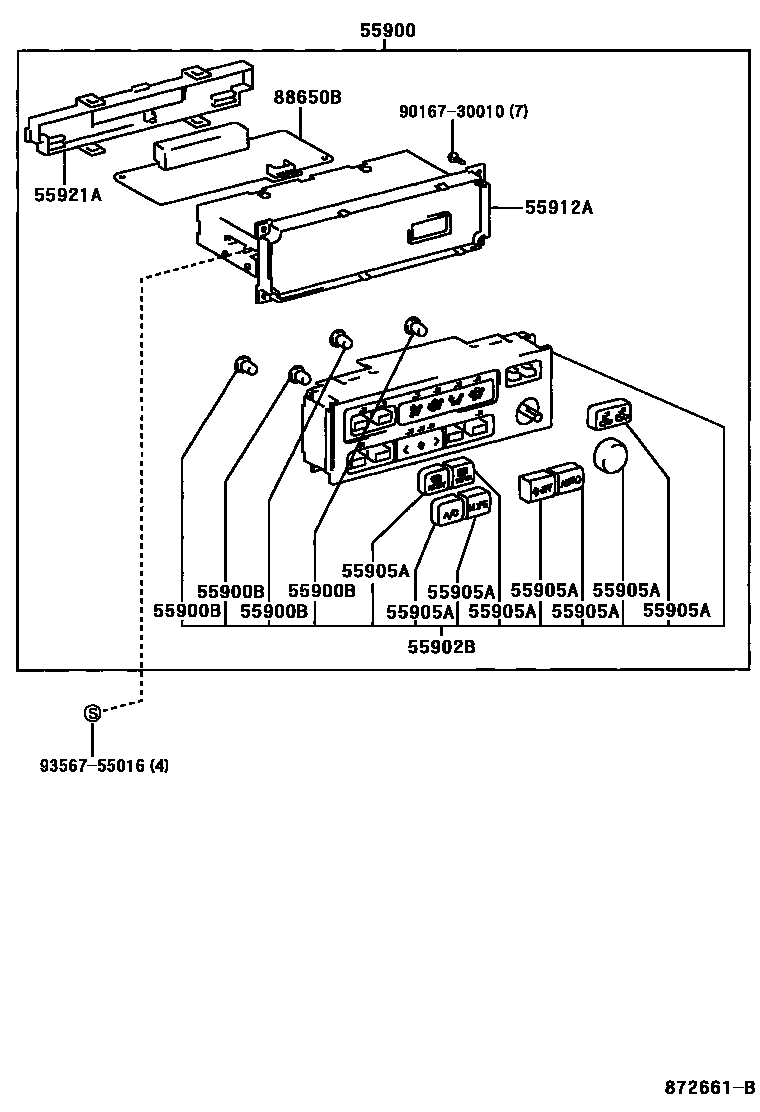

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1FRONT DUCT 0003 1REAR DUCT 0004 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-44090iSXM10199908

55900BBULB, AIR CONDITIONER CONTROL

main90010-05101iSXM10199908

14V1.12W,W/GREEN CAP

55902BCONTROL SUB-ASSY, HEATER

main55902-22120iSXM10199908

55905AKNOB, HEATER CONTROL

main55905-60170iSXM10199908

TEMP

main55905-60180iSXM10199908

A/C

main55905-60190iSXM10199908

FRONT DFFOGER

main55905-60200iSXM10199908

REAR DEF

main55905-60210iSXM10199908

MODE

main55905-60220iSXM10199908

OFF

main55905-60230iSXM10199908

RECIRC/FRESH

main55905-60240iSXM10199908

AUTO

55912AHOUSING, HEATER CONTROL

main55912-22020iSXM10199908

55921ARETAINER, HEATER CONTROL

main55921-22070iSXM10199908

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-44110iSXM10199908

9016730010

main90167-30010

9356755016

main93567-55016

9 parts on this diagram · 4 diagrams in section
