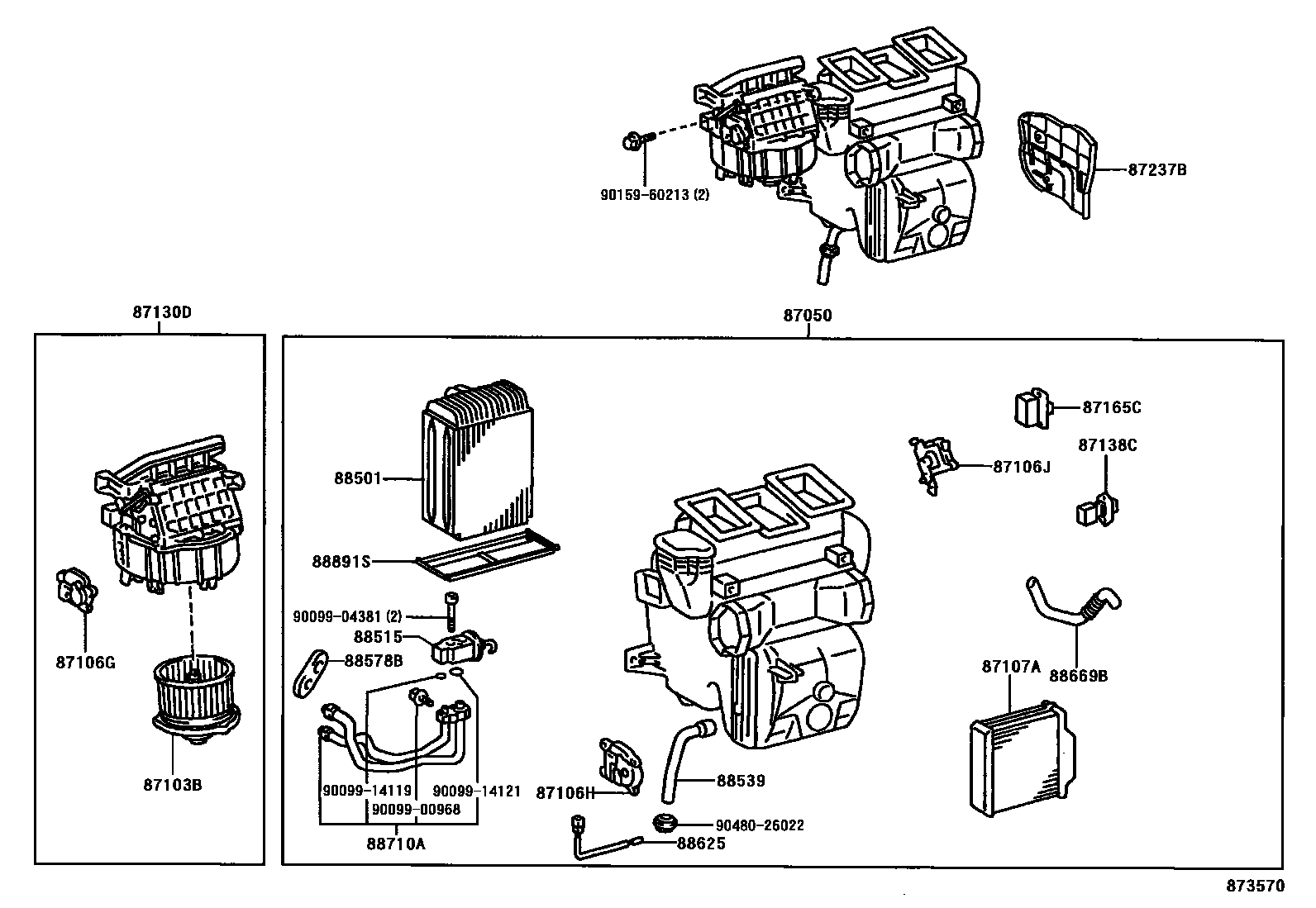

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR 0003 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-44120iSXM10199908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33041iSXM10199908

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-44010iSXM10199908

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-20350iSXM10199908

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-20220iSXM10199908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-44010iSXM10199908

87130DBLOWER ASSY

main87130-44010iSXM10199908

87138CRESISTOR, BLOWER

main87138-50010iSXM10199908

87165CCONTROL, BLOWER MOTOR

main87165-32010iSXM10199908

87237BCOVER, HEATER PIPING

main87237-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub87237-44010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20291iSXM10199908

88515VALVE, COOLER EXPANSION

main88515-22240iSXM10199908

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-44020iSXM10199908

88578BPACKING, COOLING UNIT, NO.1

main88578-20590iSXM10199908

FRONT

main88578-44040iSXM10199908

REAR

88625THERMISTOR, COOLER, NO.1

main88625-3A090iSXM10199908

88669BHOSE, COOLER AIR

main88669-33050iSXM10199908

sub88669-28030

88710ATUBE ASSY, AIR CONDITIONER

main88710-44280iSXM10199908

88891SCOVER, COOLER, NO.1

main88891-20160iSXM10199908

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9015960213

main90159-60213

9048026022

main90480-26022

24 parts on this diagram · 3 diagrams in section
