CLEARANCE & BACK SONAR

86650FBUZZER ASSY

main86650-28040iSXM10199908

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-44010iSXM10199908

89341ASENSOR, ULTRASONIC, NO.1

main89341-44011×4iSXM10199908

sub89341-44140

89341BSENSOR, ULTRASONIC, NO.2

main89341-44021iSXM10199908

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010iSXM10199908

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-44010iSXM10199908

9016750046

main90167-50046

9356715016

main93567-15016

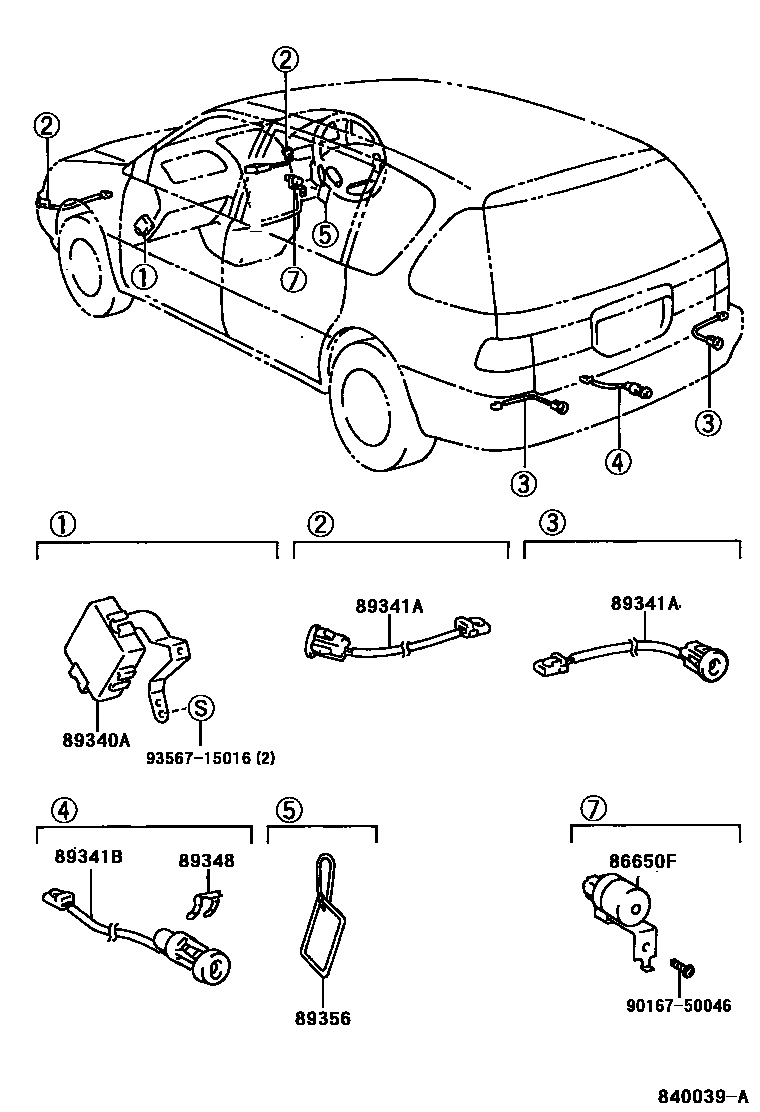

8 parts on this diagram · 1 diagram in section
