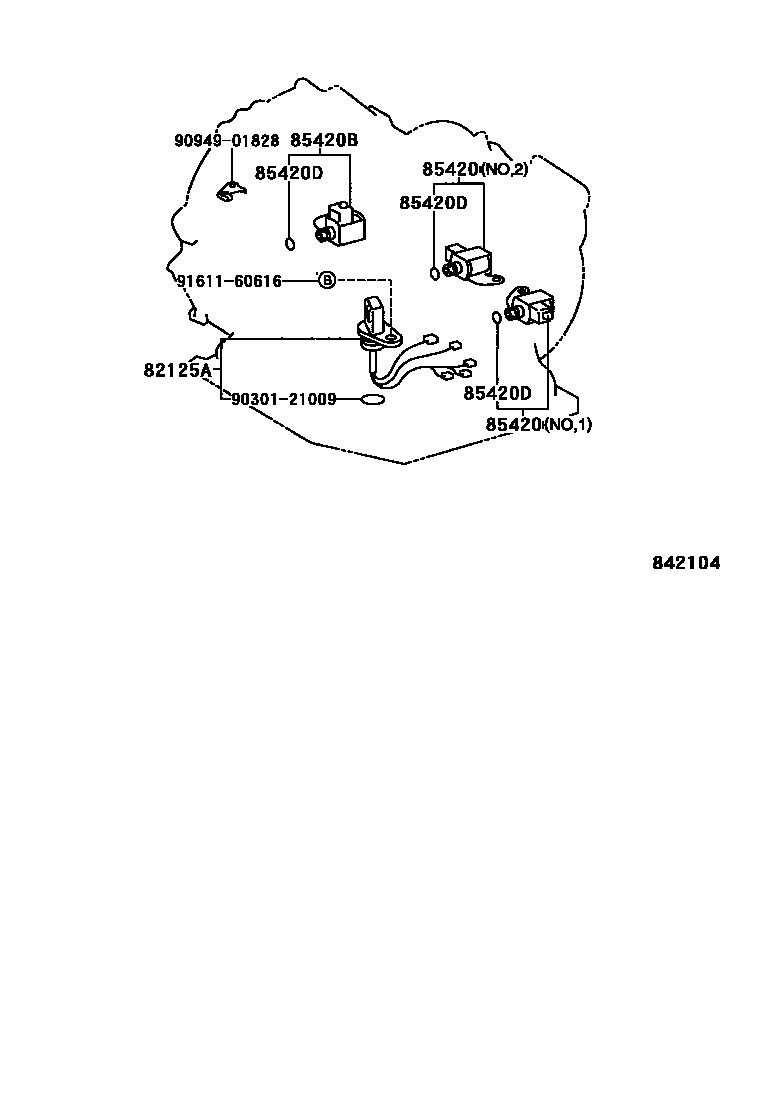

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-12350iSXM10199908

85420SOLENOID ASSY, TRANSMISSION

main85420-21010iSXM10199908

NO.1,DENSO

main85420-21020iSXM10199908

NO.1,AISIN

main85420-21030iSXM10199908

NO.2,DENSO

main85420-21040iSXM10199908

NO.2,AISIN

85420BSOLENOID ASSY, TRANSMISSION

main85420-21060iSXM10199908

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iSXM10199908

9030121009

main90301-21009

9094901828

main90949-01828

9161160616

main91611-60616

7 parts on this diagram · 1 diagram in section
