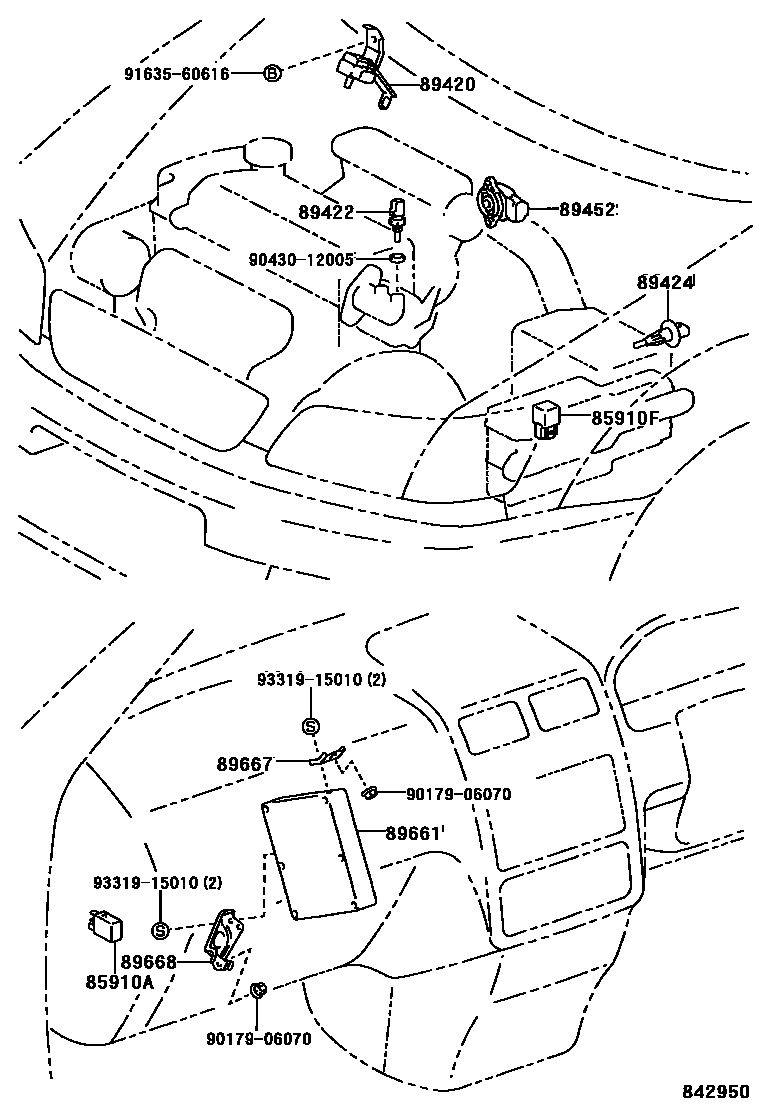

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iSXM10199908

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iSXM10199908

89420SENSOR ASSY, VACUUM

main89420-44040iSXM10199908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSXM10199908

DENSO

main89422-22030iSXM10199908

NTC

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSXM10199908-200105

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iSXM10199908

89661COMPUTER, ENGINE CONTROL

main89661-44190iSXM10199908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-44030iSXM10199908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44030iSXM10199908

9017906070

main90179-06070

9043012005

main90430-12005

9163560616

main91635-60616

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
