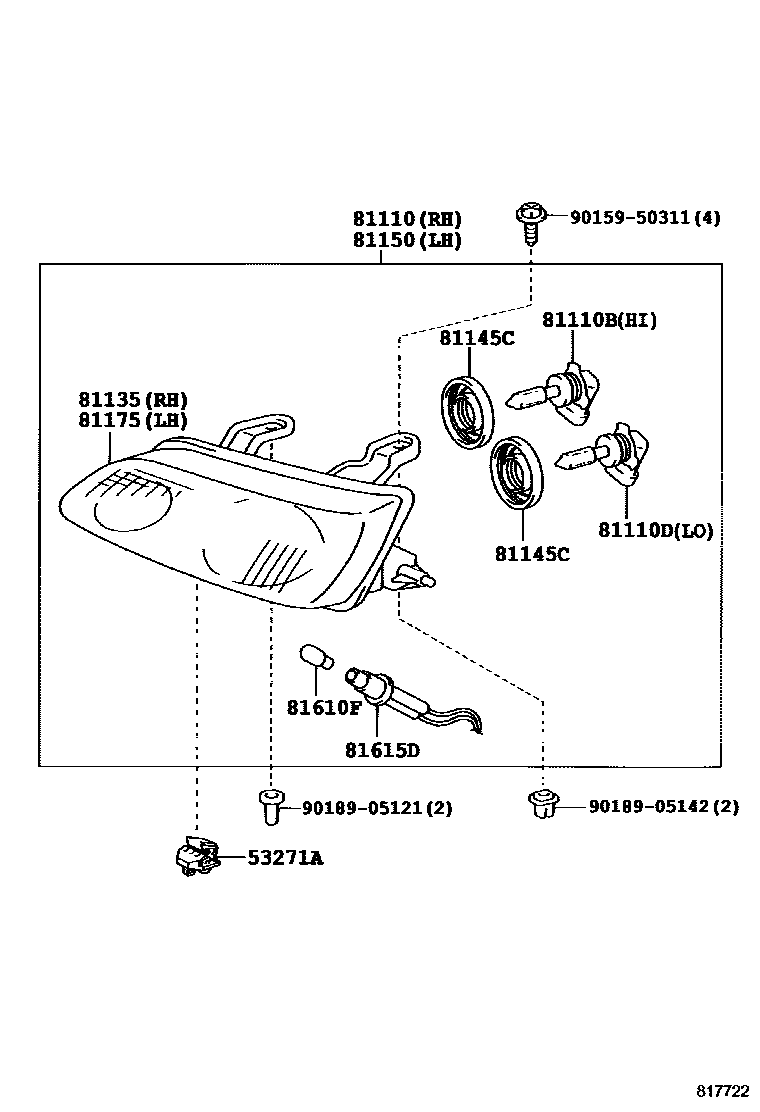

HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iSXM10199908

81110HEADLAMP ASSY, RH

main81110-44090iSXM10199908

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iSXM10199908

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iSXM10199908

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-44090iSXM10199908

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006×4iSXM10199908

81150HEADLAMP ASSY, LH

main81150-44090iSXM10199908

81175UNIT ASSY, HEADLAMP, LH

main81170-44090iSXM10199908

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iSXM10199908

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60020×2iSXM10199908

9015950311

main90159-50311

9018905121

main90189-05121

9018905142

main90189-05142

13 parts on this diagram · 1 diagram in section
