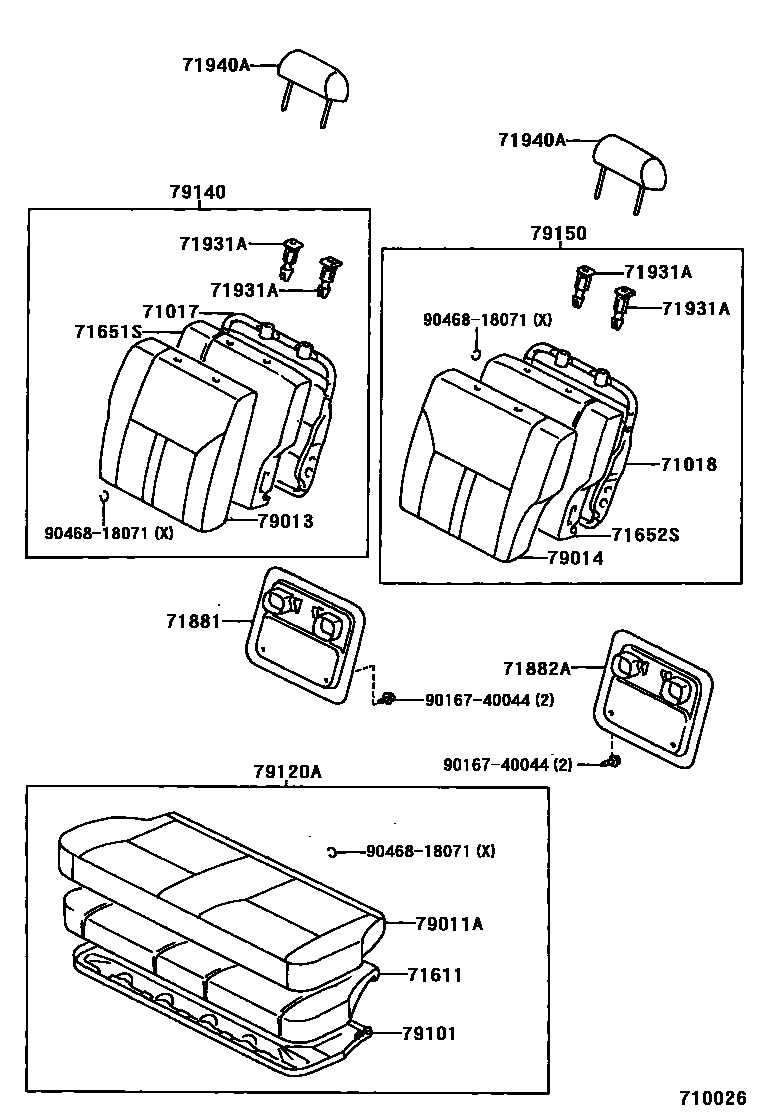

REAR SEAT & SEAT TRACK

0001 1NO.1 SEAT 0002 1NO.1 SEAT 0003 1NO.2 SEAT 0004 1NO.2 SEAT

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main79103-44010iSXM10199908

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main79104-44010iSXM10199908

71611PAD, REAR SEAT CUSHION

main79135-44010iSXM10199908

sub79135-44090

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main79175-44010iSXM10199908

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main79185-44010iSXM10199908

71881BOARD, REAR SEATBACK, RH

main71881-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub71881-44010

71882ABOARD, REAR SEATBACK, LH

main71881-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub71881-44010

71931ASUPPORT, REAR SEAT HEADREST

main71930-44010-B0iSXM10199908-200105

W(LOCK),BLUE GRAY,TRIM1#

sub71930-44010

main71931-28030-B5iSXM10199908-200105

W/O(LOCK),BLUISH GRAY,TRIM1#

sub71931-28030

71940AHEADREST ASSY, REAR SEAT

main71910-44022-B3iSXM10199908-199909

MEDIUM MOON MIST,TRIM1#

main71910-44023-B7iSXM10199909-200105

MD. MOON MIST,TRIM1#

79011ACOVER SUB-ASSY, NO.1 SEAT CUSHION

main79011-44022-B6iSXM10199908-199909

MEDIUM MOON MIST,TRIM1#

sub79011-44023

main79011-44023-B6iSXM10199909

MEDIUM MOON MIST,TRIM1#

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-44022-B6iSXM10199908-199909

MEDIUM MOON MIST,TRIM1#

sub79013-44023

main79013-44023-B6iSXM10199909

MEDIUM MOON MIST,TRIM1#

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main79014-44022-B6iSXM10199908-199909

MEDIUM MOON MIST,TRIM1#

sub79014-44023

main79014-44023-B6iSXM10199909

MEDIUM MOON MIST,TRIM1#

79101FRAME SUB-ASSY, NO.1 SEAT CUSHION

main79101-44010iSXM10199908

79120ACUSHION ASSY, NO.1 SEAT

main79120-44022-B2iSXM10199908-199909

***,MEDIUM MOON MIST,TRIM1#

sub79120-44023

main79120-44023-B4iSXM10199909

***,MD. MOON MIST,TRIM1#

79140BACK ASSY, NO.1 SEAT, RH

main79140-44022-B2iSXM10199908-199909

***,MEDIUM MOON MIST,TRIM1#

sub79140-44023

main79140-44023-B4iSXM10199909

***,MD. MOON MIST,TRIM1#

79150BACK ASSY, NO.1 SEAT, LH

main79150-44022-B2iSXM10199908-199909

***,MEDIUM MOON MIST,TRIM1#

sub79150-44023

main79150-44023-B4iSXM10199909

***,MD.MOON MIST,TRIM1#

9016740044

main90167-40044

9046818071

main90468-18071

18 parts on this diagram · 4 diagrams in section
