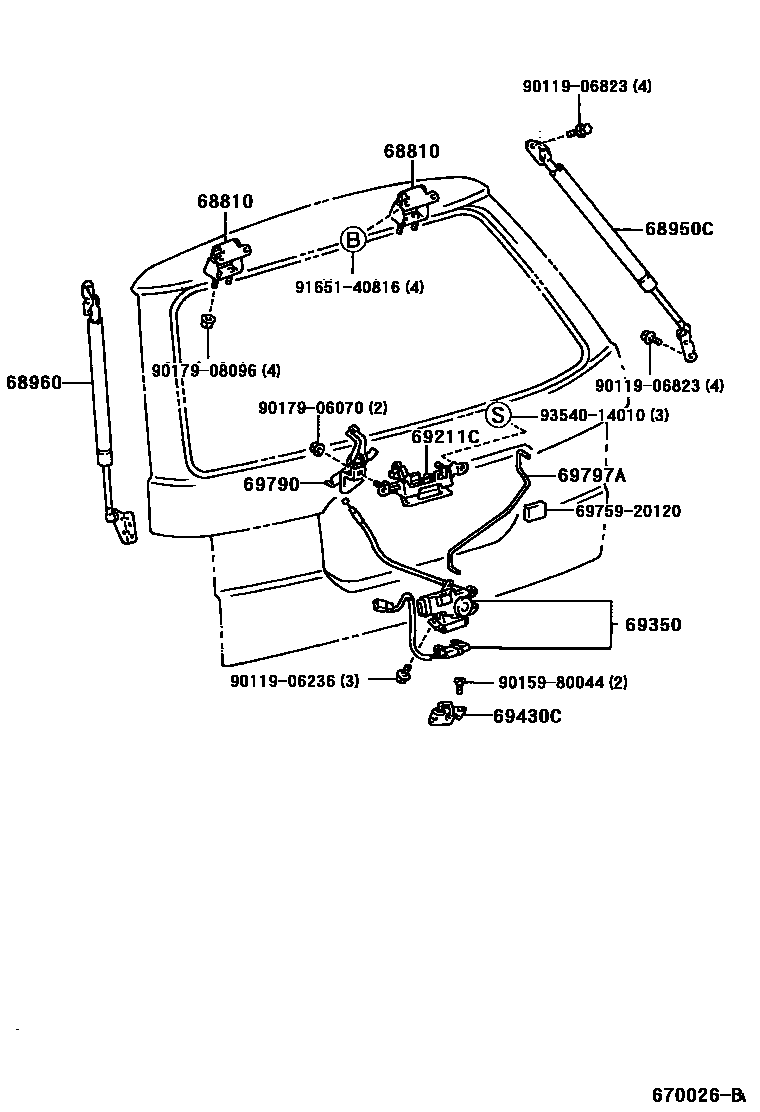

BACK DOOR LOCK & HANDLE
68810HINGE ASSY, BACK DOOR, UPPER
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
sub69430-13010
69790CONTROL ASSY, BACK DOOR LOCK
69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL
6975920120SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-20120
9011906236
main90119-06236
9011906823
main90119-06823
9015980044
main90159-80044
9017906070
main90179-06070
9017908096
main90179-08096
9165140816
main91651-40816
9354014010
main93540-14010
16 parts on this diagram · 1 diagram in section
