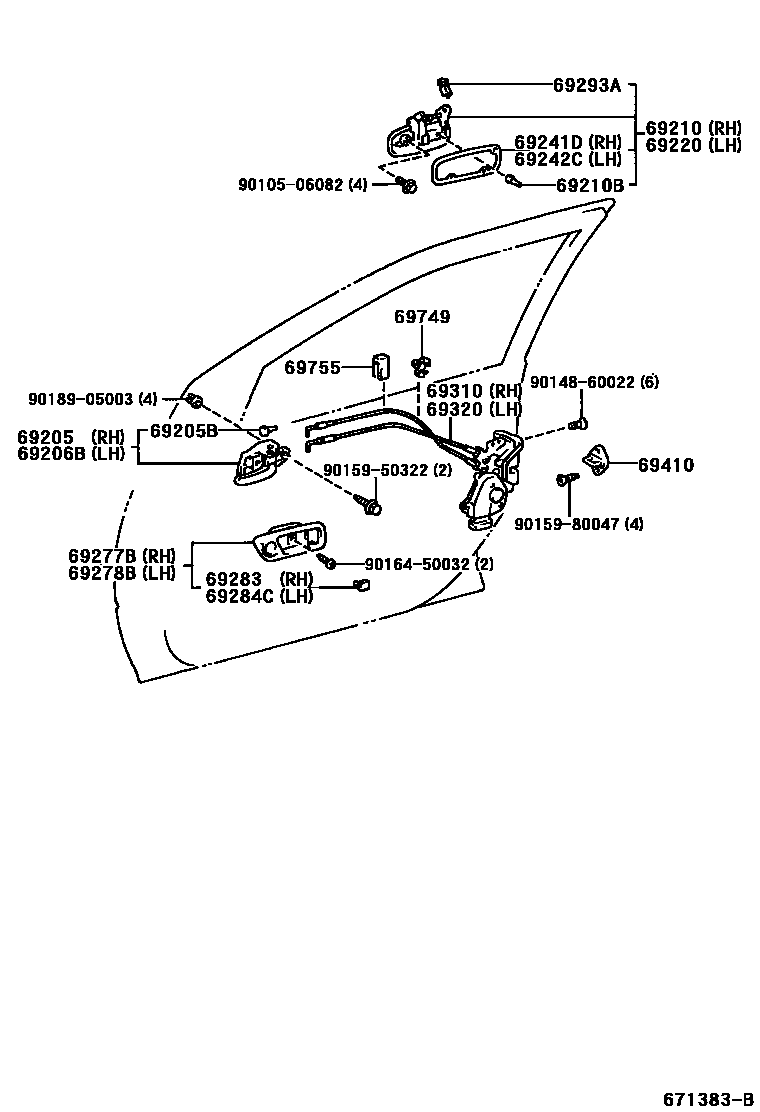

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MD.MOON MIST,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MD.MOON MIST,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
MD.MOON MIST,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
MD.MOON MIST,TRIM1#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
MD.MOON MIST,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
MD.MOON MIST,TRIM1#
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
9010506082
main90105-06082
9014860022
main90148-60022
9015950322
main90159-50322
9015980047
main90159-80047
9016450032
main90164-50032
9018905003
main90189-05003
24 parts on this diagram · 1 diagram in section
