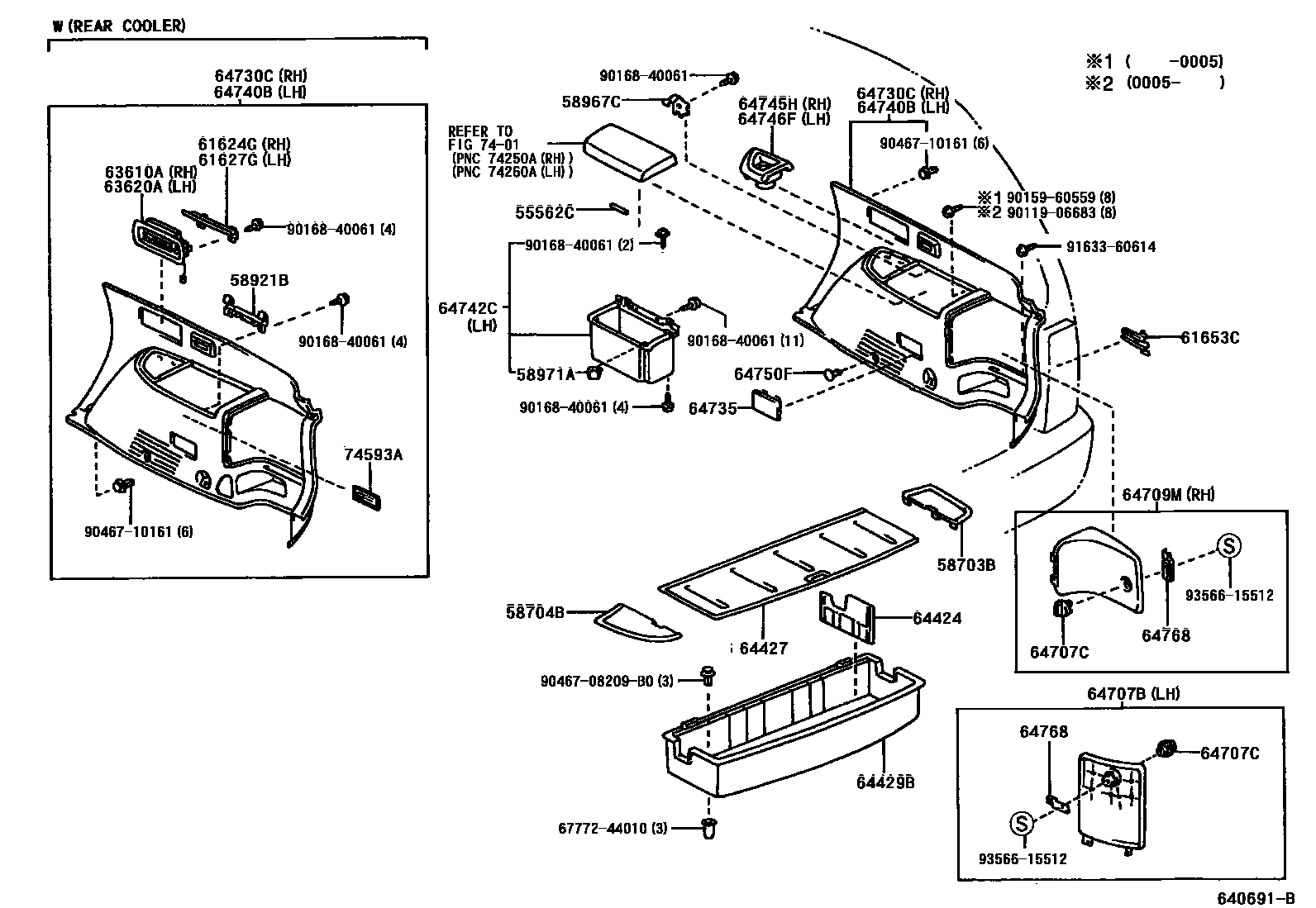

DECK BOARD & DECK TRIM COVER
55562CPIN, DECK TRIM DOOR LOCK
58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58921BPLATE, DECK TRIM DOOR LOCK
58967CSPRING, DECK SIDE BOX DOOR STOPPER
58971ALOCK, CONSOLE COMPARTMENT DOOR
61624GBRACKET, DECK SIDE TRIM UPPER, RH
61627GBRACKET, DECK SIDE TRIM UPPER, LH
61653CBRACKET, DECK SIDE TRIM, RH
63610AREGISTER ASSY, AIR OUTLET, RH
63620AREGISTER ASSY, AIR OUTLET, LH
64424SEPARATOR, LUGGAGE ROOM BOX
64427LID, LUGGAGE ROOM BOX
MD.MOON MIST,TRIM1#
64429BBOX, LUGGAGE ROOM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
MD.MOON MIST,TRIM1#
64707CKNOB, JACK COVER
64709MCOVER SUB-ASSY, DECK TRIM POCKET
64730CBOARD, DECK TRIM SIDE, RH
MD.MOON MIST,TRIM1#
64735COVER, DECK TRIM SIDE SERVICE HOLE
64740BBOARD, DECK TRIM SIDE, LH
MD.MOON MIST,TRIM1#
64742CBOX, DECK SIDE TRIM, LH
MD.MOON MIST,TRIM1#
64745HHOLDER, DECK SIDE TRIM CUP, RH
MD.MOON MIST,TRIM1#
64746FHOLDER, DECK SIDE TRIM CUP, LH
MD.MOON MIST,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64768STOPPER, JACK COVER
7401
74593ALABEL, DECK TRIM SIDE
6777244010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-44010
9011906683
main90119-06683
9015960559
main90159-60559
9016840061
main90168-40061
9046708209B0
main90467-08209B0
9046710161
main90467-10161
9163360614
main91633-60614
9356615512
main93566-15512
35 parts on this diagram · 1 diagram in section
