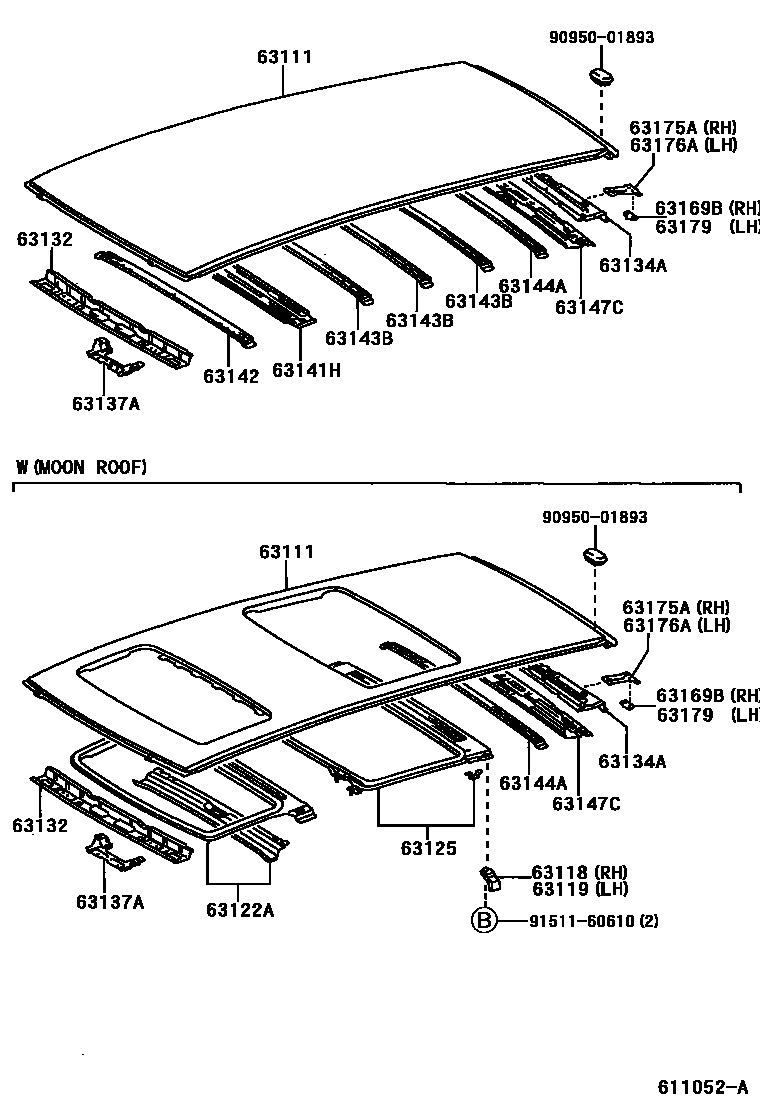

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(ROOF RAIL) 0003 1W(TILT ROOF & MOON ROOF)

63111PANEL, ROOF

main63111-44010iSXM10199908

main63111-44020iSXM10199908

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-44010iSXM10199908

63119SUPPORT, ROOF PANEL, LH

main63118-44010iSXM10199908

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63103-44010iSXM10199908

63125REINFORCEMENT, ROOF PANEL, NO.2

main63104-44010iSXM10199908

63132PANEL, WINDSHIELD HEADER, INNER

main63132-44010iSXM10199908

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-44010iSXM10199908

63137ABRACKET, DOME LAMP, NO.1

main63137-44010iSXM10199908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-44010iSXM10199908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-44010iSXM10199908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-44010×3iSXM10199908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-44010iSXM10199908

63147CREINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER

main63147-44010iSXM10199908

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-44010iSXM10199908

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-44010iSXM10199908

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-44010iSXM10199908

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-44010iSXM10199908

9095001893

main90950-01893

9151160610

main91511-60610

19 parts on this diagram · 3 diagrams in section
