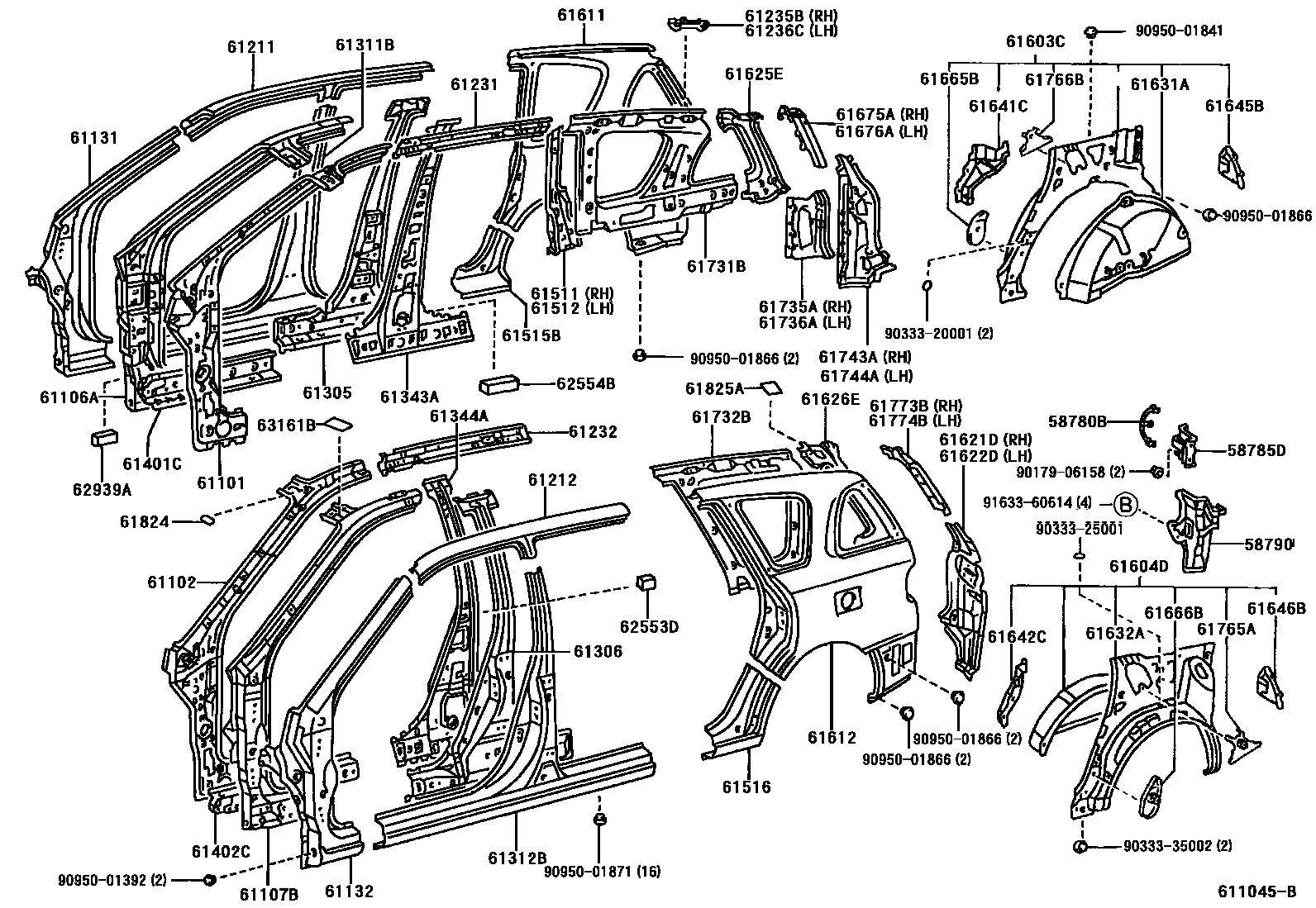

SIDE MEMBER
58780BBAND ASSY, TOOL BOX
58785DBRACKET, TOOL BAG BAND
58790CARRIER ASSY, JACK
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61235BBRACKET, ASSIST GRIP
61236CBRACKET, ASSIST GRIP
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61402CPANEL SUB-ASSY, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61515BEXTENSION, QUARTER LOCK PILLAR, RH
61516EXTENSION, QUARTER LOCK PILLAR, LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
61774BFRAME, BACK DOOR OPENING SIDE, UPPER LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
62553DPAD, PILLAR, NO.3
sub61824-12090
62554BPAD, PILLAR, NO.4
sub61824-12130
62939ASILENCER, QUARTER VENT
63161BPLATE, ROOF HEADER PANEL, NO.1
9017906158
main90179-06158
9033320001
main90333-20001
9033325001
main90333-25001
9033335002
main90333-35002
9095001392
main90950-01392
9095001841
main90950-01841
9095001866
main90950-01866
9095001871
main90950-01871
9163360614
main91633-60614
70 parts on this diagram · 1 diagram in section
