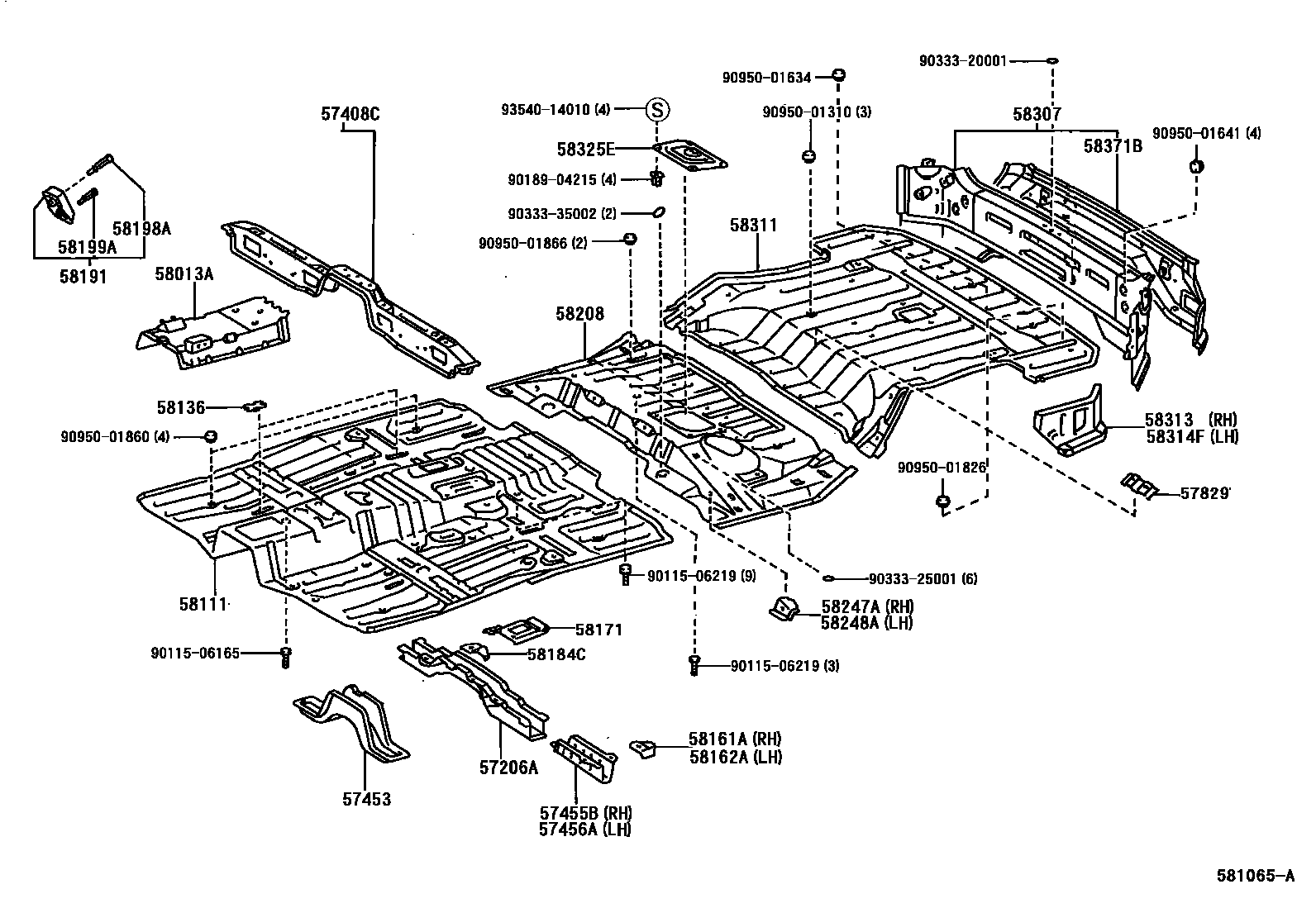

FLOOR PAN & LOWER BACK PANEL
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
sub57408-44902
57453MEMBER, FRONT FLOOR CROSS, NO.3
57455BGUSSET, FRONT FLOOR CROSSMEMBER, RH
57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH
57829REINFORCEMENT, SEAT LEG
58013APANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58161AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58162AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58371BPANEL, BODY LOWER BACK, OUTER
9011506165
main90115-06165
9011506219
main90115-06219
9018904215
main90189-04215
9033320001
main90333-20001
9033325001
main90333-25001
9033335002
main90333-35002
9095001310
main90950-01310
9095001634
main90950-01634
9095001641
main90950-01641
9095001826
main90950-01826
9095001860
main90950-01860
9095001866
main90950-01866
9354014010
main93540-14010
38 parts on this diagram · 1 diagram in section
