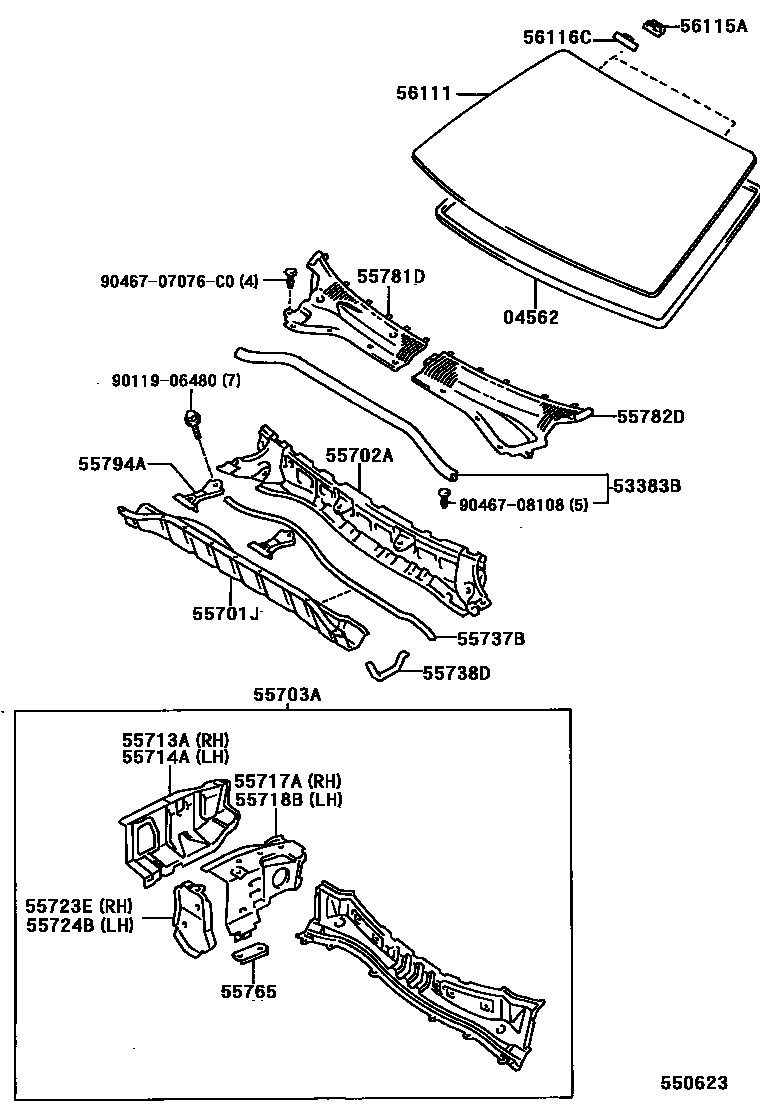

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-26010iSXM10199908

53383BSEAL, HOOD TO COWL TOP

main53383-44010iSXM10199908-199909

sub53383-44012

main53383-44012iSXM10199909

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55712-44010iSXM10199908

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-44010iSXM10199908

sub55702-44020

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-44900iSXM10199908

55713APANEL, COWL TOP SIDE, RH

main55713-44010iSXM10199908

55714APANEL, COWL TOP SIDE, LH

main55714-44010iSXM10199908

55717APANEL, COWL TOP SIDE, INNER RH

main55717-44010iSXM10199908

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-44010iSXM10199908

55723EGUSSET, FRONT PANEL, RH

main55723-44010iSXM10199908

55724BGUSSET, FRONT PANEL, LH

main55724-44010iSXM10199908

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-44010iSXM10199908

sub55737-48010

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-44010iSXM10199908

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iSXM10199908

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-44010iSXM10199908

sub55708-44020

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-44010iSXM10199908

sub55709-44020

55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2

main55794-44010iSXM10199908

56111GLASS, WINDSHIELD

main56111-44010iSXM10199908

*TL,T=4.7,BRONZE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iSXM10199908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iSXM10199908

9011906480

main90119-06480

9046707076C0

main90467-07076C0

9046708108

main90467-08108

23 parts on this diagram · 1 diagram in section
