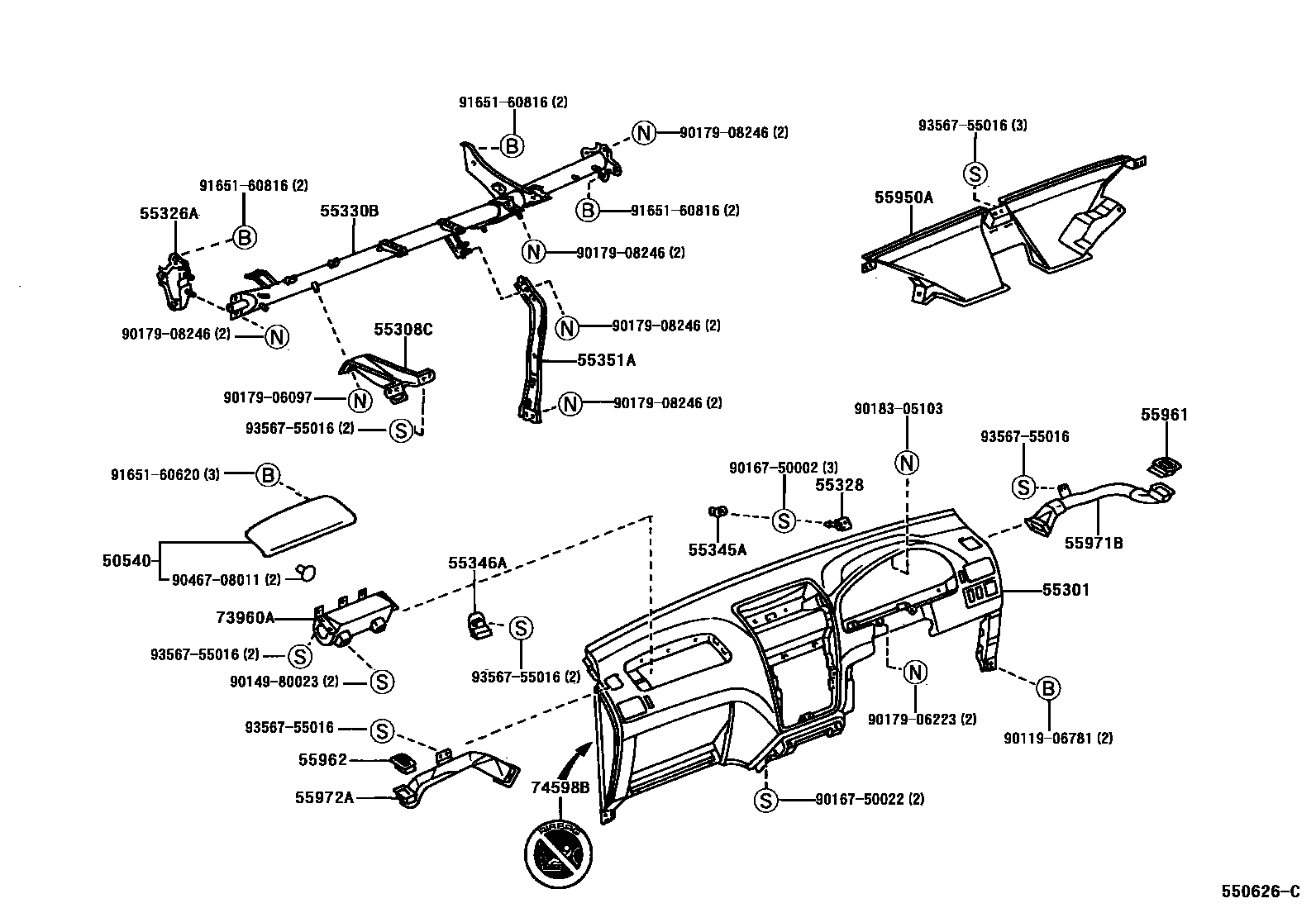

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-44011-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub50540-44011¥7,500

55301PANEL SUB-ASSY, INSTRUMENT

main55311-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-44010iSXM10¥1,330199908

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-44010iSXM10¥1,450199908

55328PIN, INSTRUMENT PANEL, NO.1

main55328-44010iSXM10¥320199908

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-44030iSXM10¥18,400199908

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-44010iSXM10¥220199908

55346ACLIP, INSTRUMENT PANEL, NO.2

main55346-44010iSXM10¥440199908

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-44010iSXM10¥2,650199908

55950ANOZZLE ASSY, DEFROSTER

main55950-44010iSXM10¥7,600199908

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub55961-44010¥710

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-44010-B0iSXM10199908

MD.MOON MIST,TRIM1#

sub55962-44010¥710

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-44010iSXM10¥1,820199908

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-44010iSXM10¥1,820199908

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-44050iSXM10¥120,000199908

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iSXM10¥90199908

9011906781

main90119-06781¥110

9014980023

main90149-80023¥120

9016750002

main90167-50002¥120

9016750022

main90167-50022¥70

9017906097

main90179-06097¥320

9017906223

main90179-06223¥120

9017908246

main90179-08246¥130

9018305103

main90183-05103¥90

9046708011

main90467-08011¥100

9165160620

main91651-60620¥80

9165160816

main91651-60816¥100

9356755016

main93567-55016¥110

28 parts on this diagram · 2 diagrams in section
