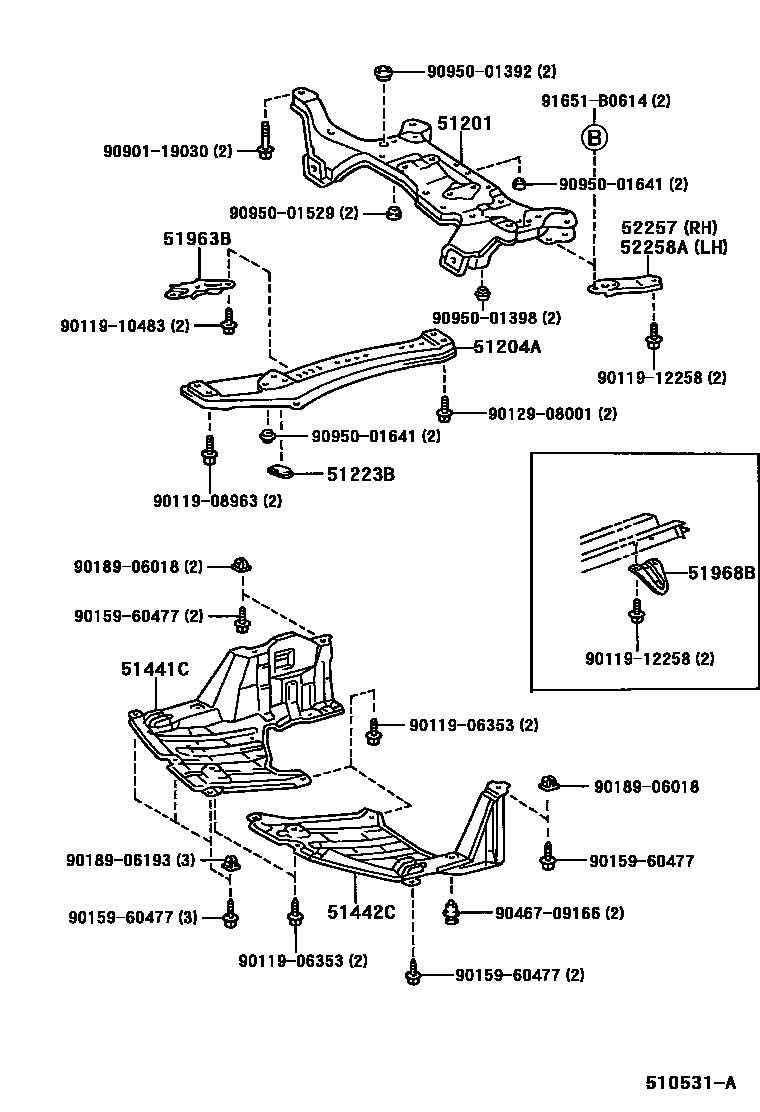

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20320iSXM10199908

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20111iSXM10199908

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iSXM10199908

51441CCOVER, ENGINE UNDER, RH

main51441-20380iSXM10199908

51442CCOVER, ENGINE UNDER, LH

main51442-20450iSXM10199908

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iSXM10199908

51968BHOOK, TRANSPORT, REAR LH

main51968-44010iSXM10199908

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-44010iSXM10199908

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-44010iSXM10199908

9011906353

main90119-06353

9011908963

main90119-08963

9011910483

main90119-10483

9011912258

main90119-12258

9012908001

main90129-08001

9015960477

main90159-60477

9018906018

main90189-06018

9018906193

main90189-06193

9046709166

main90467-09166

9090119030

main90901-19030

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91651B0614

main91651-B0614

24 parts on this diagram · 1 diagram in section
