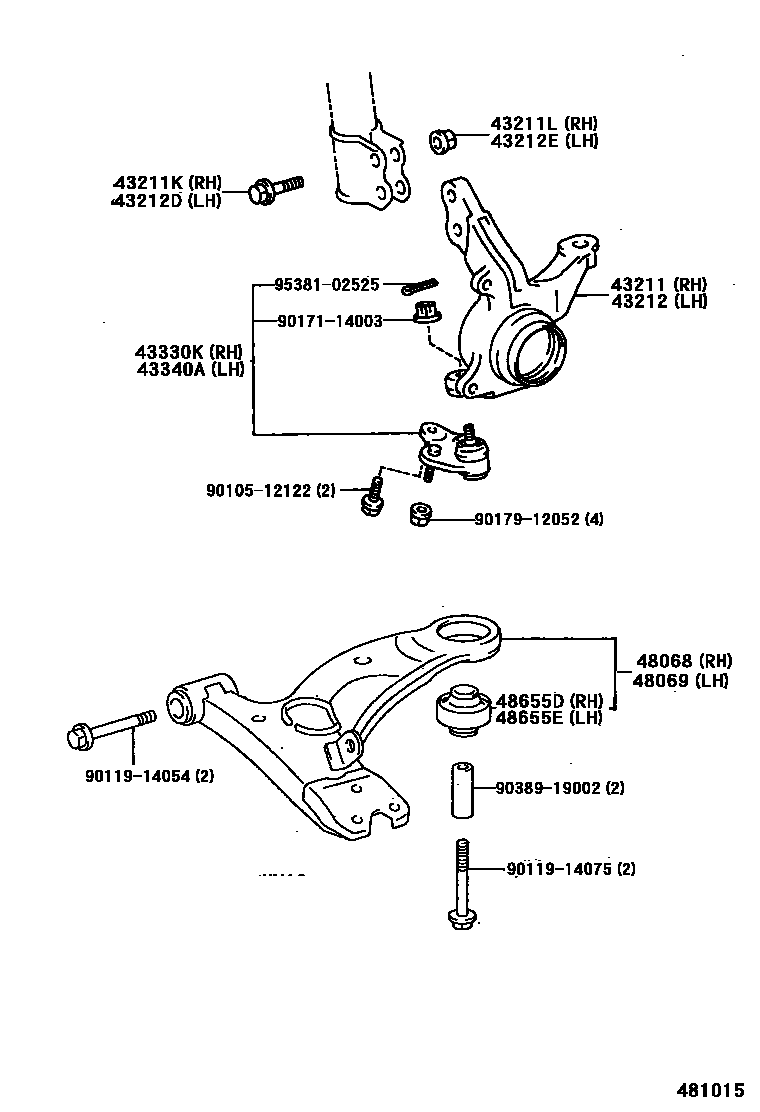

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-44011iSXM10199908

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iSXM10199908

OD=15.0

main90105-15004iSXM10199908

OD=13.9

main90105-15005iSXM10199908

OD=13.3

main90105-15006iSXM10199908

OD=12.4

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iSXM10199908

43212KNUCKLE, STEERING, LH

main43212-44011iSXM10199908

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iSXM10199908

OD=15.0

main90105-15004iSXM10199908

OD=13.9

main90105-15005iSXM10199908

OD=13.3

main90105-15006iSXM10199908

OD=12.4

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iSXM10199908

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29375iSXM10199908

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29375iSXM10199908

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-44010iSXM10199908

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-44010iSXM10199908

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-44010iSXM10199908

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-44010iSXM10199908

9010512122

main90105-12122

9011914054

main90119-14054

9011914075

main90119-14075

9017114003

main90171-14003

9017912052

main90179-12052

9038919002

main90389-19002

9538102525

main95381-02525

19 parts on this diagram · 2 diagrams in section
