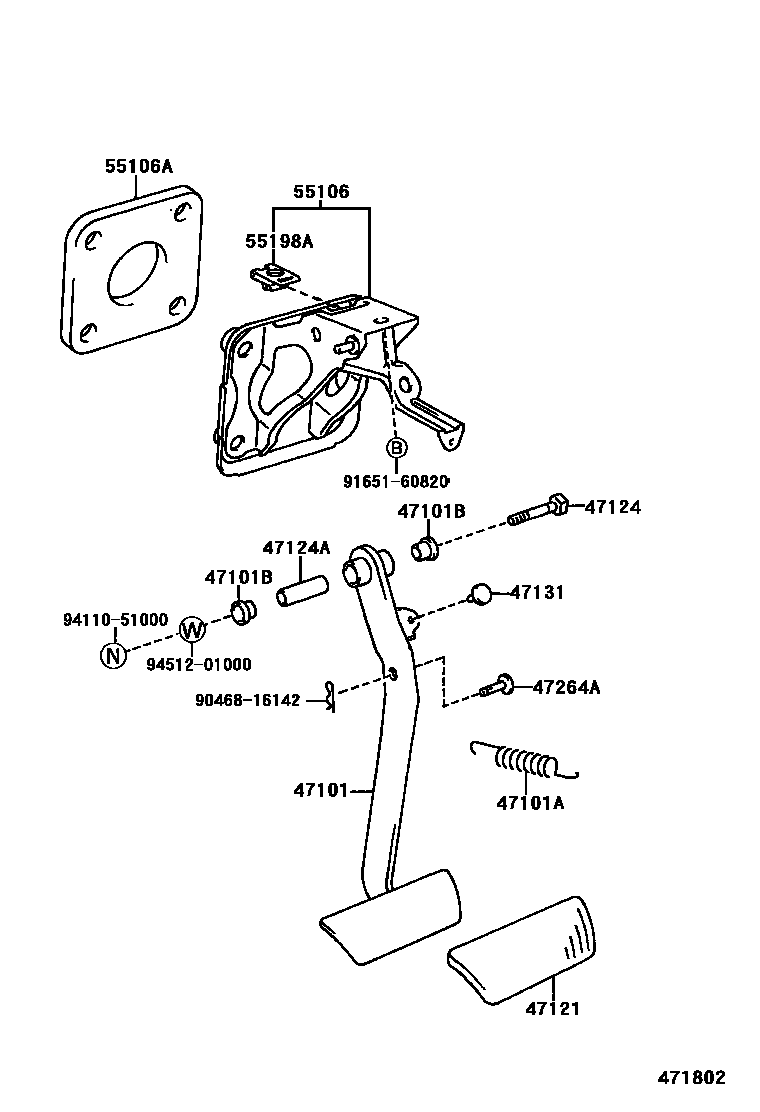

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-44060iSXM10199908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06025iSXM10199908

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSXM10199908

47121PAD, BRAKE PEDAL

main47121-14010iSXM10199908

47124SHAFT, BRAKE PEDAL

main90101-10164iSXM10199908

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iSXM10199908

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iSXM10199908

47264APIN(FOR PUSH ROD)

main90249-10064iSXM10199908

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-44030iSXM10199908

55106ASEAL, DASH PANEL

main55259-20010iSXM10199908

55198AHOLDER, BRAKE AWAY MOUNTING BOLT

main55198-13010iSXM10199908

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
