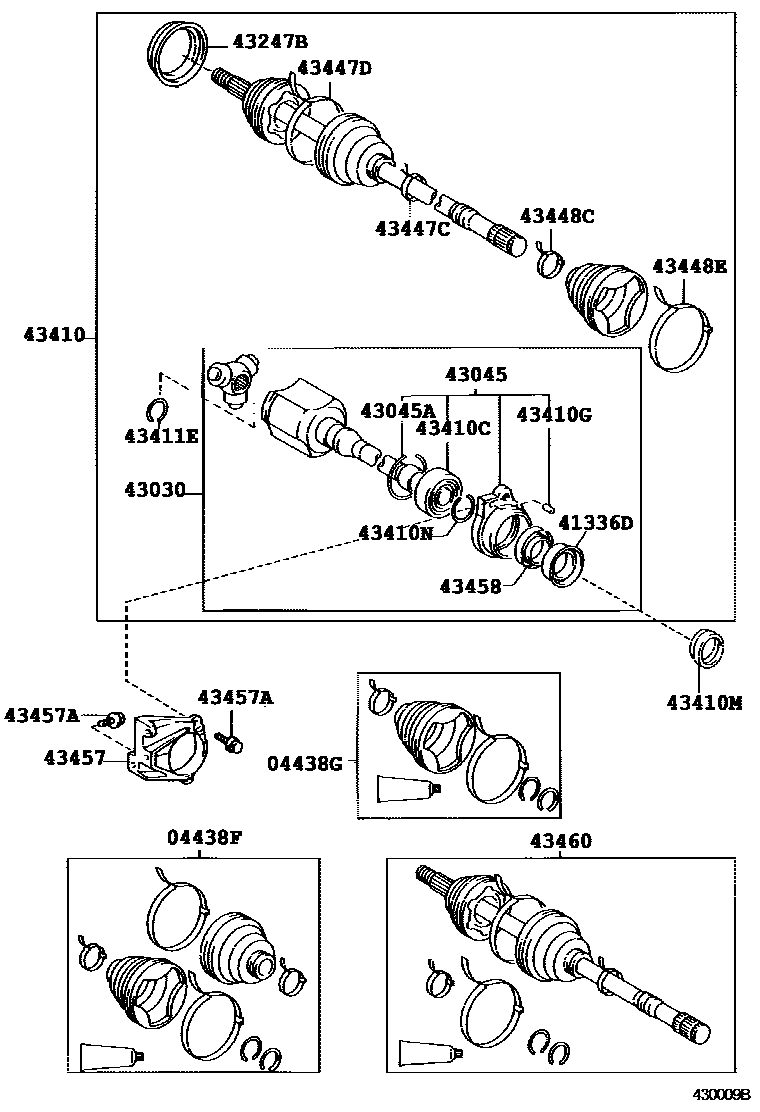

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12481i200104-200105

sub04428-12250

main04438-20132i199908-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12470i200104-200105

sub04438-32240

main04438-20121i199908-200104

sub04438-12470

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-20050i199908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-32060i199908

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010i199908

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680i199908

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010i199908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20582i199908-200104

sub43410-20583

main43410-20583i200104-200105

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36004i199908

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003i199908

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35045i199908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008i199908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005i199908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20100i199908-200104

ID=31.1

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20120i199908-200105

ID=90.6

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078i199908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01076i199908

ID=92.2

sub42345-12160

main90949-01946i199908

ID=91.9

sub42345-12160

43457BRACKET, DRIVE SHAFT BEARING

main43457-20040i199908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10285i199908

*10-1.25PX22-19.5

sub90105-10361

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011i199908

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-19658i199908-200104

sub43470-19659

main43470-19659i200104-200105

21 parts on this diagram · 2 diagrams in section
