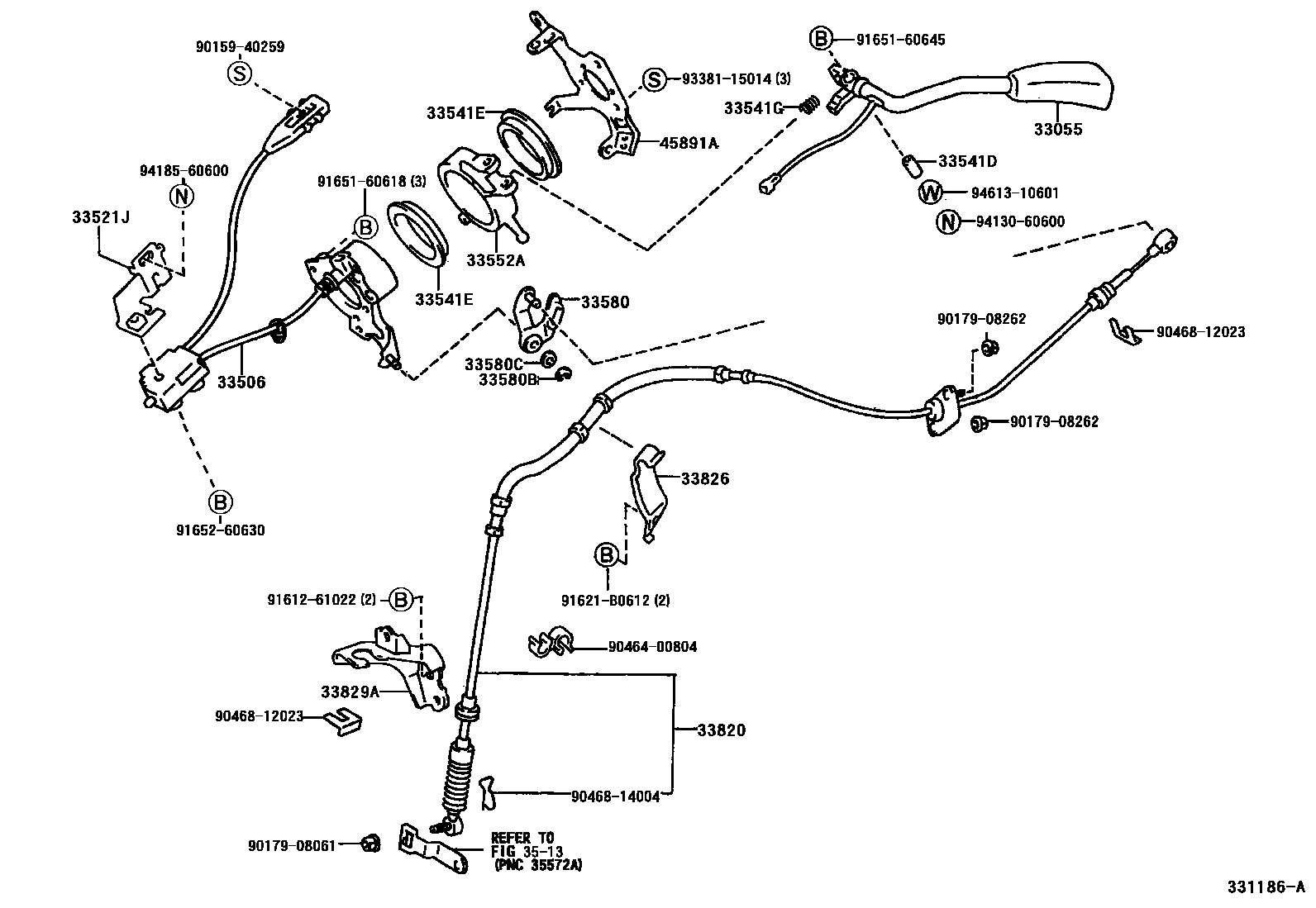

CONTROL SHAFT & CROSSSHAFT

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-44030iSXM10199908

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-44040iSXM10199908

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-44010iSXM10199908

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iSXM10199908

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90387-49001iSXM10199908

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16150iSXM10199908

33552AARM, SHIFT LEVER

main33552-44011iSXM10199908

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-44010iSXM10199908

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iSXM10199908

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iSXM10199908

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-44070iSXM10199908

sub33820-44071

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-44030iSXM10199908

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-44030iSXM10199908

3513

45891ABRACKET, TURN SIGNAL

main45891-44020iSXM10199908

9015940259

main90159-40259

9017908061

main90179-08061

9017908262

main90179-08262

9046400804

main90464-00804

9046812023

main90468-12023

9046814004

main90468-14004

9161261022

main91612-61022

91621B0612

main91621-B0612

9165160618

main91651-60618

9165160645

main91651-60645

9165260630

main91652-60630

9338115014

main93381-15014

9413060600

main94130-60600

9418560600

main94185-60600

9461310601

main94613-10601

30 parts on this diagram · 1 diagram in section
