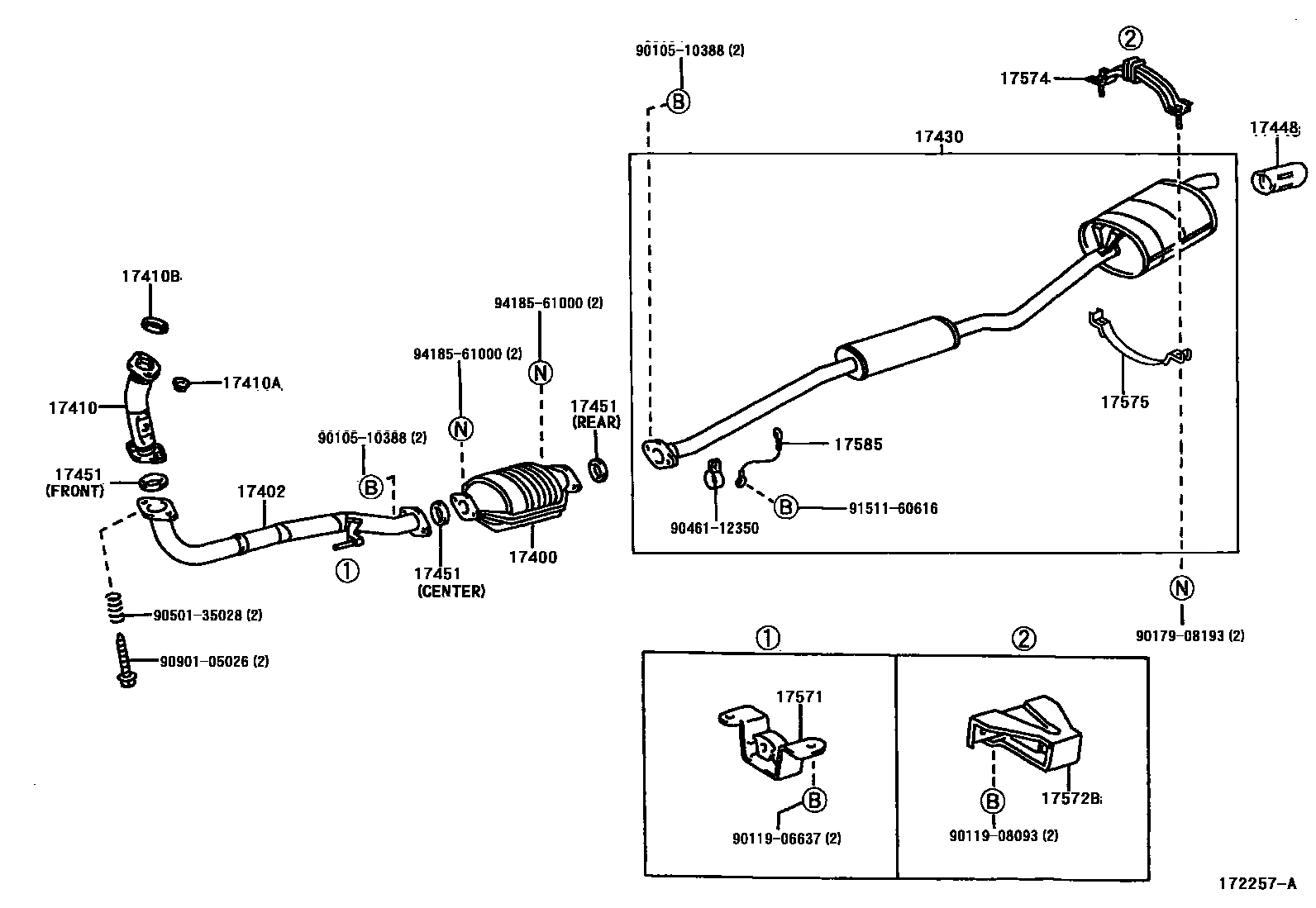

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-74440i3SFE..SXM10199908-200105

*115=TOYOTA/-00/N

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

main17402-74020i3SFE..SXM10199908

17410PIPE ASSY, EXHAUST, FRONT

main17401-74470i3SFE..SXM10199908

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3SFE..SXM10199908

17410BGASKET, EXHAUST PIPE

main90917-06065i3SFE..SXM10199908

17430PIPE ASSY, EXHAUST, TAIL

main17430-7A731i3SFE..SXM10199908

17448BAFFLE, TAILPIPE

main17448-74080i3SFE..SXM10199908

17451GASKET, EXHAUST PIPE

main17451-54010i3SFE..SXM10199908

FRONT

main90917-06043i3SFE..SXM10199908

CENTER

main90917-06076i3SFE..SXM10199908

REAR

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-74450i3SFE..SXM10199908

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-74120i3SFE..SXM10199908

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-74140i3SFE..SXM10199908

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-74140i3SFE..SXM10199908

17585HANGER, EXHAUST PIPE

main17585-74080i3SFE..SXM10199908

9010510388

main90105-10388

9011906637

main90119-06637

9011908093

main90119-08093

9017908193

main90179-08193

9046112350

main90461-12350

9050135028

main90501-35028

9090105026

main90901-05026

9151160616

main91511-60616

9418561000

main94185-61000

22 parts on this diagram · 1 diagram in section
