FRONT SEAT & SEAT TRACK

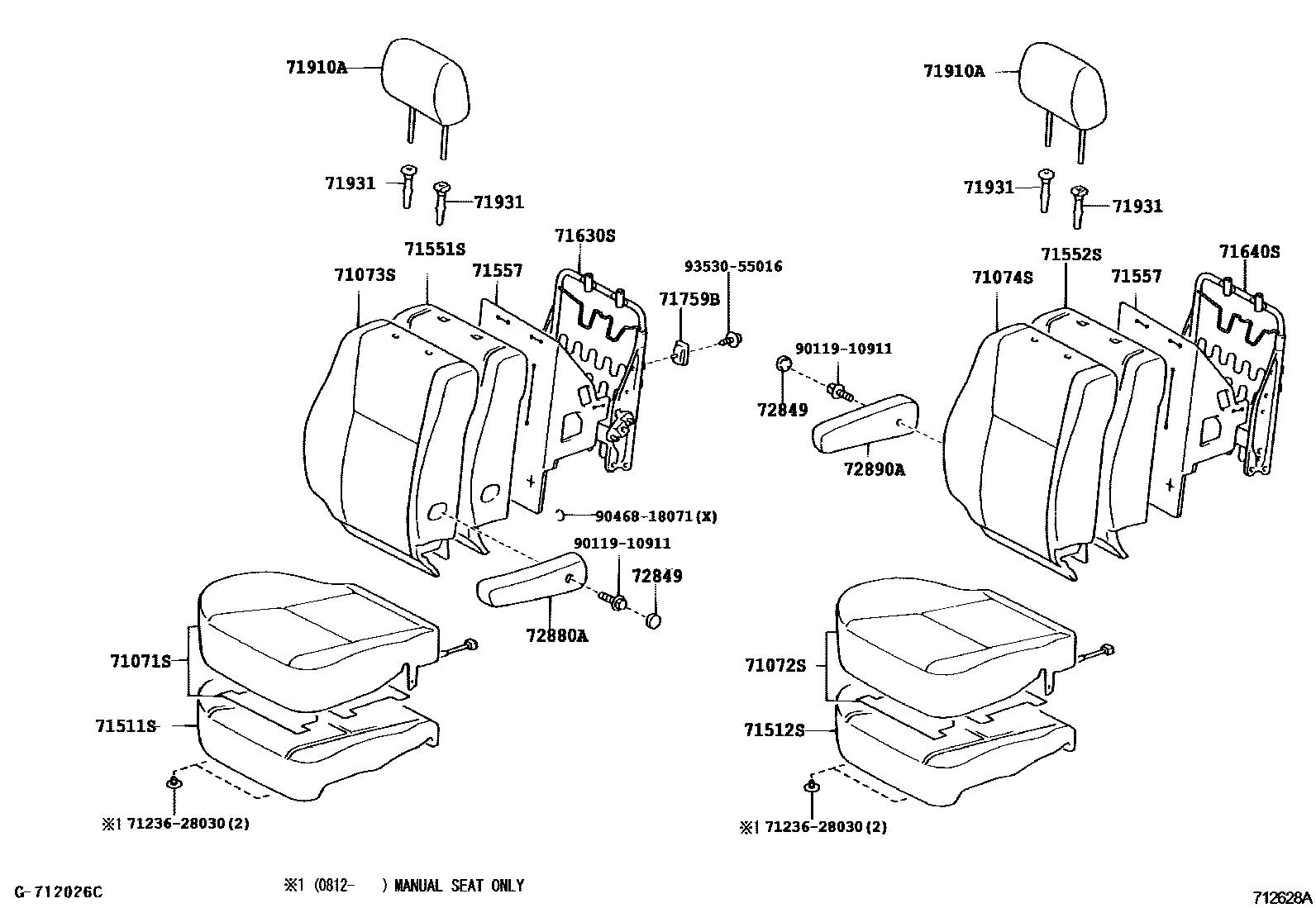

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-44280-A0i200105-200310
IVORY,TRIM0#
sub71071-44281
main71071-44310-A0i200105-200310
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71071-44340-B1i200105-200310
DARK GRAY,TRIM1#
main71071-44340-B2i200310-200507
GRAY,TRIM1#
main71071-44350-B1i200105-200310
W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-44350-B2i200310-200507
W(SRS SIDE AIR BAG),GRAY,TRIM1#
main71071-44360-B1i200105-200310
DARK GRAY,TRIM1#
main71071-44360-B2i200310-200507
GRAY,TRIM1#
main71071-44370-B1i200105-200310
W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-44370-B2i200310-200507
W(SRS SIDE AIR BAG),GRAY,TRIM1#
main71071-44380-B1i200105-200310
W(SEAT HEATER),DARK GRAY,TRIM1#
main71071-44380-B2i200310-200507
W(SEAT HEATER),GRAY,TRIM1#
main71071-44390-B1i200105-200310
W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-44390-B2i200310-200507
W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
main71071-44750-A0i200310-200812
IVORY,TRIM0#
sub71236-28030
main71071-44751-A0i200812-200912
IVORY,TRIM0#
sub71071-44752
main71071-44770-B1i200310-200812
GRAY,TRIM1#
sub71236-28030
main71071-44771-B1i200812-200912
GRAY,TRIM1#
sub71071-44772
main71071-44780-A0i200310-200812
W(SRS SIDE AIR BAG),IVORY,TRIM0#
sub71236-28030
main71071-44781-A0i200812-200912
W(SRS SIDE AIR BAG),IVORY,TRIM0#
sub71071-44782
main71071-44800-B1i200310-200812
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71236-28030
main71071-44801-B1i200812-200912
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71071-44802
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-44360-B1i200105-200310
DARK GRAY,TRIM1#
main71071-44360-B2i200310-200507
GRAY,TRIM1#
main71071-44400-A0i200105-200310
IVOLY,TRIM0#
main71071-44430-A0i200105-200310
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71071-44460-B1i200105-200310
W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71071-44460-B2i200310-200507
W(SRS SIDE AIR BAG),GRAY,TRIM1#
main71071-44470-B1i200105-200310
W(VERTICAL SEAT AJDUSTER),DARK GRAY,TRIM1#
main71071-44470-B2i200310-200507
W(VERTICAL SEAT AJDUSTER),GRAY,TRIM1#
main71071-44480-B1i200105-200310
W(SRS SIDE AIR BAG & VERTICAL SEAT AJDUSTER),DARK GRAY,TRIM1#
main71071-44480-B2i200310-200507
W(SRS SIDE AIR BAG & VERTICAL SEAT AJDUSTER),GRAY,TRIM1#
main71071-44490-B1i200105-200310
W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DARK GRAY,TRIM1#
main71071-44490-B2i200310-200507
W(SEAT HEATER & VERTICAL SEAT AJDUSTER),GRAY,TRIM1#
main71071-44500-B1i200105-200310
W(SRS SIDE AIR BAG & VERTICAL SEAT AJDUSTER & SEAT HEATER),DARK GRAY,TRIM1#
main71071-44500-B2i200310-200507
W(SRS SIDE AIR BAG & VERTICAL SEAT AJDUSTER & SEAT HEATER),GRAY,TRIM1#
main71071-44870-A0i200310-200812
IVORY,TRIM0#
sub71236-28030
main71071-44871-A0i200812-200912
IVORY,TRIM0#
sub71071-44872
main71071-44890-B1i200310-200812
GRAY,TRIM1#
sub71236-28030
main71071-44891-B1i200812-200912
GRAY,TRIM1#
sub71071-44892
main71071-44A00-A0i200310-200812
W(SRS SIDE AIR BAG),IVORY,TRIM0#
sub71236-28030
main71071-44A01-A0i200812-200912
W(SRS SIDE AIR BAG),IVORY,TRIM0#
sub71071-44A02
main71071-44A20-B1i200310-200812
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71236-28030
main71071-44A21-B1i200812-200912
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71071-44A22
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-44370-B0i200105-200310
DARK GRAY,TRIM1#
main71073-44370-B1i200310-200507
GRAY,TRIM1#
main71073-44380-B0i200105-200310
W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-44380-B1i200310-200507
W(SRS SIDE AIR BAG),GRAY,TRIM1#
main71073-44390-B0i200105-200310
W(SEAT HEATER),DARK GRAY,TRIM1#
main71073-44390-B1i200310-200507
W(SEAT HEATER),GRAY,TRIM1#
main71073-44400-B0i200105-200310
W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-44400-B1i200310-200507
W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
main71073-44810-A0i200105-200310
IVOLY,TRIM0#
main71073-44820-A0i200105-200310
W(SRS SIDE AIR BAG),IVOLY,TRIM0#
main71073-44B30-A0i200310-200912
IVORY,TRIM0#
main71073-44B40-A0i200310-200912
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71073-44B50-B1i200310-200912
GRAY,TRIM1#
sub71073-44B51
main71073-44B60-B1i200310-200912
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71073-44B61
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-44470-B0i200105-200310
DARK GRAY,TRIM1#
main71073-44470-B1i200310-200507
GRAY,TRIM1#
main71073-44480-B0i200105-200310
W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-44480-B1i200310-200507
W(SRS SIDE AIR BAG),GRAY,TRIM1#
main71073-44490-B0i200105-200310
W(SEAT HEATER),DARK GRAY,TRIM1#
main71073-44490-B1i200310-200507
W(SEAT HEATER),GRAY,TRIM1#
main71073-44500-B0i200105-200310
W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#
main71073-44500-B1i200310-200507
W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
main71073-44790-A0i200105-200310
IVOLY,TRIM0#
main71073-44800-A0i200105-200310
W(SRS SIDE AIR BAG),IVOLY,TRIM0#
main71073-44B10-A0i200310-200912
IVORY,TRIM0#
main71073-44B20-A0i200310-200912
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71073-44B70-B1i200310-200912
GRAY,TRIM1#
sub71073-44B71
main71073-44B80-B1i200310-200912
W(SRS SIDE AIR BAG),GRAY,TRIM1#
sub71073-44B81
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-44040i200310
main71511-44060i200105-200310
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-44040i200310
main71511-44060i200105-200310
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-44050i200105-200310
main71551-44051i200607
main71551-44130i200310-200606
main71551-44131i200607
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-44070i200105-200310
main71551-44140i200310
71557CLOTH, FRONT SEATBACK UNDER
main71557-44020×2i200310
main71557-44030×2i200310-200507
W(SRS SIDE AIR BAG)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-44010i200310
main71630-44030i200310-200507
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-44010i200105-200310
71759BHOOK, FRONT SEATBACK
main71759-28040-A0i200310-200912
IVORY,TRIM0#
main71759-28040-C0i200310-200912
BLACK,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-44260-A0×2i200105-200310
IVORY,TRIM0#
main71910-44290-B1×2i200105-200310
DARK GRAY,TRIM1#
main71910-44290-B3×2i200310-200507
GRAY,TRIM1#
main71910-44400-A0×2i200310-200912
IVORY,TRIM0#
main71910-44420-B1×2i200310-200912
GRAY,TRIM1#
sub71910-44421
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0×2i200310-200705
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-44020
main71930-42020-C0×2i200105-200310
W(LOCK)&W(BUTTON),BLACK,TRIM1#
sub71930-44020
main71930-52030-A0×2i200706-200912
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-C0×2i200706-200912
W(LOCK)&W(BUTTON),BLACK,TRIM1#
main71931-42020-A0×2i200105-200310
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-C0×2i200310-200912
W(LOCK)&W/O(BUTTON),BLACK,TRIM1#
72849CAP, SEAT ARMREST, NO.2
main72848-28030-A0×2i200105-200310
IVORY,TRIM0#
sub72848-0E020
main72848-28030-C0×2i200310-200912
BLACK,TRIM1#
sub72848-0E020
72880AARMREST ASSY, FRONT SEAT, INNER RH
main72890-44060-A0i200105-200209
IVORY,TRIM0#
main72890-44061-A0i200209-200310
IVORY,TRIM0#
main72890-44090-B0i200105-200209
DARK GRAY,TRIM1#
main72890-44091-B0i200209-200310
DARK GRAY,TRIM1#
main72890-44091-B2i200310-200507
GRAY,TRIM1#
main72890-44200-A0i200310-200912
IVORY,TRIM0#
main72890-44220-B1i200310-200912
MD.GRAY,TRIM1#
72890AARMREST ASSY, FRONT SEAT, INNER LH
main72880-44160-A0i200105-200209
IVORY,TRIM0#
main72880-44161-A0i200209-200310
IVORY,TRIM0#
main72880-44190-B0i200105-200209
DARK GRAY,TRIM1#
main72880-44191-B0i200209-200310
DARK GRAY,TRIM1#
main72880-44191-B1i200310-200507
GRAY,TRIM1#
main72880-44280-A0i200310-200912
IVORY,TRIM0#
main72880-44300-B1i200310-200912
MD.GRAY,TRIM1#
7123628030PACKING, REAR SEATBACK FRAME HINGE, LOWER
main71236-28030
9011910911
main90119-10911
9046818071
main90468-18071
9353055016
main93530-55016

21 parts on this diagram · 3 diagrams in section
