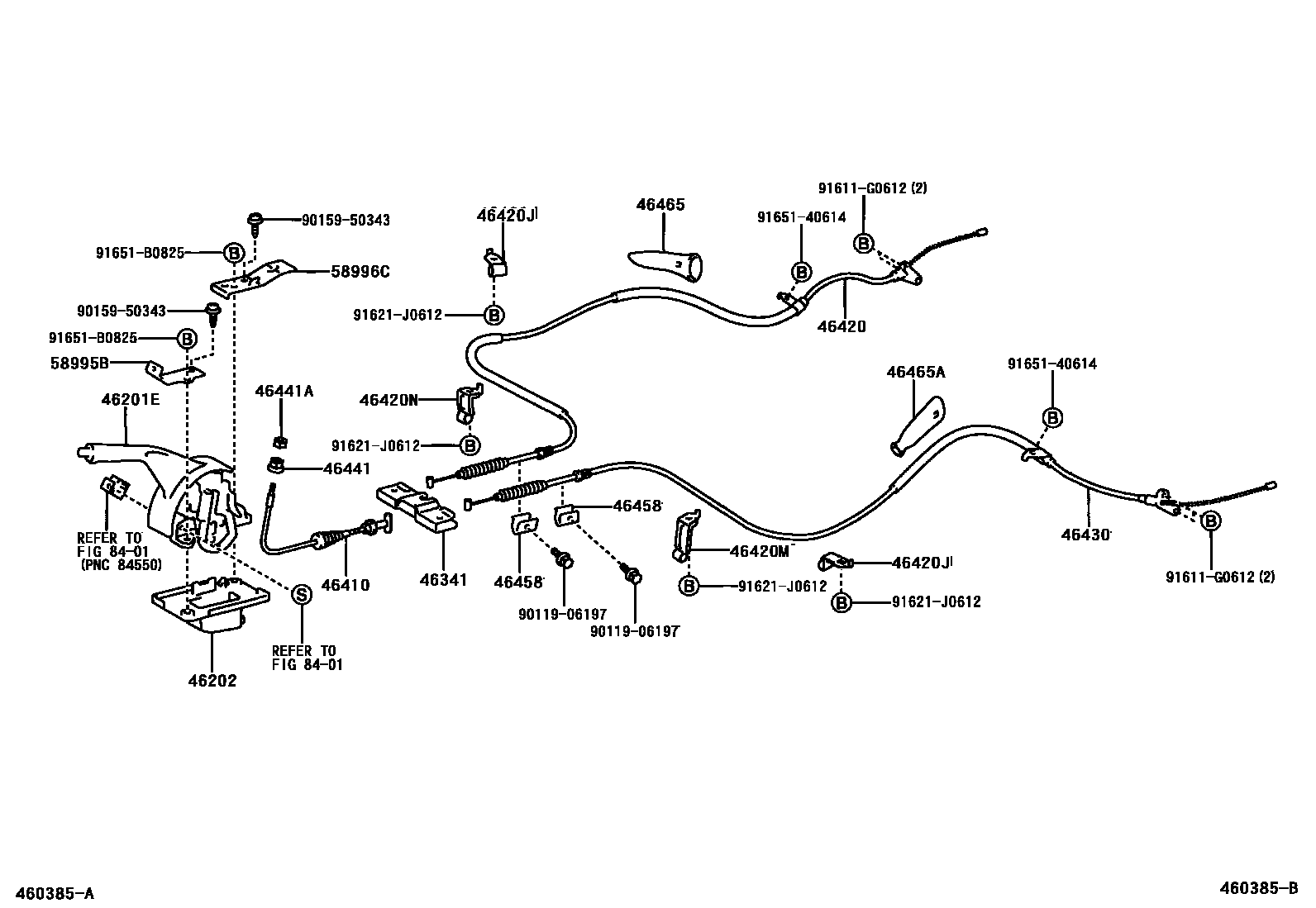

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-44030-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main46201-44030-C0iACM2#,CLM20..ARL,EUR200310-200912

BLACK,TRIM1#

46202BOOT SUB-ASSY, PARKING BRAKE LEVER

main46202-44010iACM20,CLM20200105-200310

46341EQUALIZER, PARKING BRAKE

main46341-12020iACM20,CLM20200105-200310

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-44050iACM20,CLM20200105-200310

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-44040iACM20,CLM20..LHD200105-200310

main46420-44041iACM20,CLM20..LHD200405-200507

main46420-44050iACM2#,CLM20..RHD200310-200405

main46420-44051iACM20,CLM20..RHD..EUR200405

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C69×2iACM20,CLM20200105-200310

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main90949-01C72iACM2#,CLM20200310

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main90949-01C73iACM20,CLM20200105-200310

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-44040iACM20,CLM20..LHD200105-200310

main46430-44041iACM20,CLM20..LHD200405-200507

main46430-44050iACM20,CLM20..RHD200105-200310

main46430-44051iACM20,CLM20..RHD..EUR200405

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACM2#,CLM20200310

main90179-06164iACM20,CLM20200105-200107

sub90179-06171

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06058iACM20,CLM20200105-200310

main90179-06299iACM2#,CLM20200310

46458RETAINER, CABLE

main46458-28010×2iACM20,CLM20200105-200310

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-44010iACM2#,CLM20200310

46465AGUIDE, PARKING BRAKE CABLE, LH

main46465-44020iACM20,CLM20200105-200310

sub46465-28030

58995BBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-44010iACM20,CLM20200105-200310

58996CBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-44010iACM20,CLM20200105-200310

8401

9011906197

main90119-06197

9015950343

main90159-50343

91611G0612

main91611-G0612

91621J0612

main91621-J0612

9165140614

main91651-40614

91651B0825

main91651-B0825

23 parts on this diagram · 2 diagrams in section
