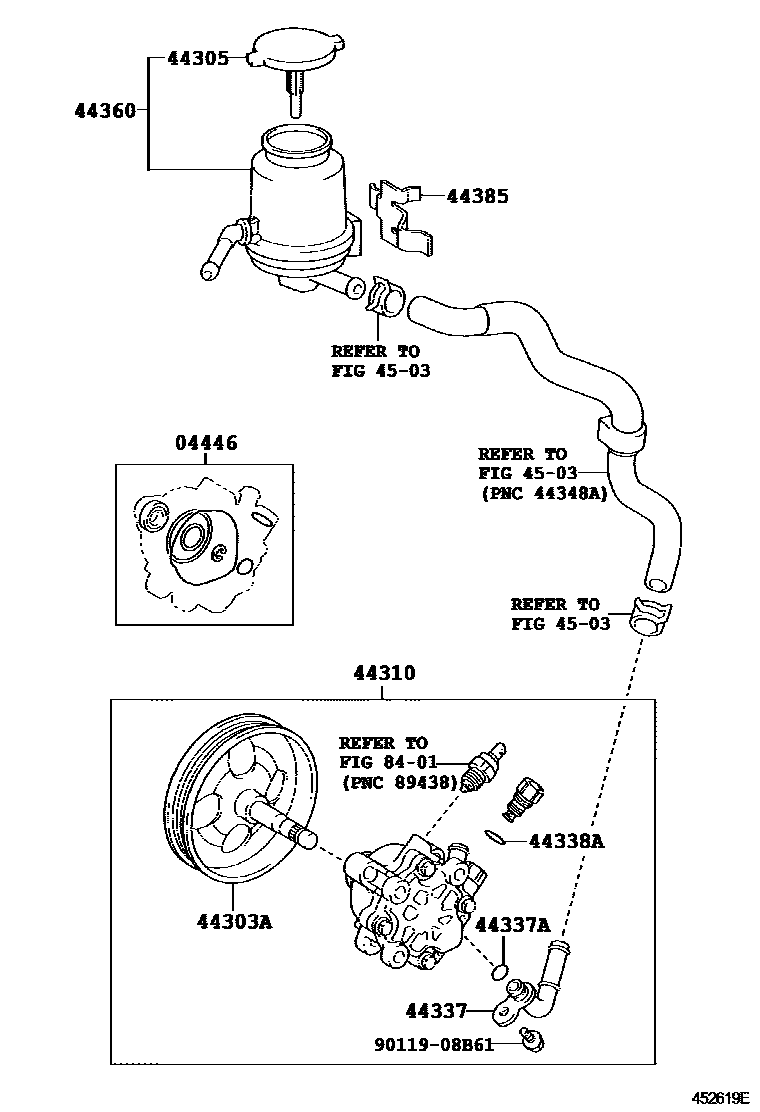

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iACM2#200611

main04446-32050iACM2#200105-200611

main04446-34010iCLM20200105-200310

sub04446-53030

main04446-53030iCLM20200310-200507

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACM2#200105-200310

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iCLM20200105-200507

sub44305-22060

main44305-28030iACM2#200310-200801

sub44305-28060

main44305-28060iACM2#200802

sub44305-28061

44310PUMP ASSY, VANE

main44310-28270iACM2#200611

main44310-42070iACM20200105-200610

sub44310-28270

44337UNION, POWER STEERING SUCTION PORT

main44337-42010iACM20200105-200310

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iCLM20200105-200507

main90301-11020iACM20200105-200310

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iACM2#200310

OD=22,ID=18.6

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-44010iACM20200105-200310

sub44360-44030

main44360-44030iACM2#200310

44385SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR)

main44385-38010iACM20200105-200310

4503

8401

9011908B61

main90119-08B61

12 parts on this diagram · 2 diagrams in section
