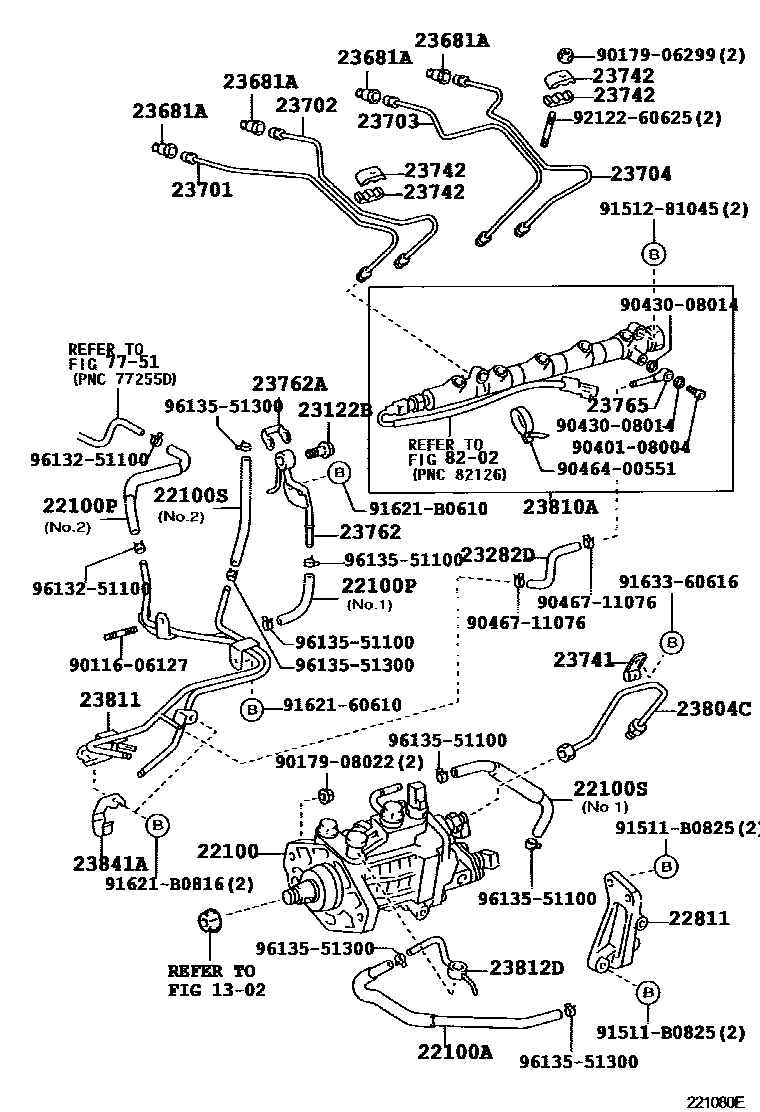

INJECTION PUMP ASSEMBLY
1302
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
NO.2
NO.1
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
NO.1
NO.2
NO.2
22811STAY, INJECTION PUMP, NO.1
23122BVALVE, CHECK
23282DHOSE, FUEL, NO.4
23681ASEAL, NOZZLE HOLDER
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23762PIPE, NOZZLE LEAKAGE, NO.2
23762AGASKET, NOZZLE LEAKAGE PIPE NO.2
23765PIPE, NOZZLE LEAKAGE, NO.5
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23812DPIPE, FUEL, NO.2
23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
7751
8202
9011606127
main90116-06127
9017906299
main90179-06299
9017908022
main90179-08022
9040108004
main90401-08004
9043008014
main90430-08014
9046400551
main90464-00551
9046711076
main90467-11076
91511B0825
main91511-B0825
9151281045
main91512-81045
9162160610
main91621-60610
91621B0610
main91621-B0610
91621B0816
main91621-B0816
9163360616
main91633-60616
9212260625
main92122-60625
9613251100
main96132-51100
9613551100
main96135-51100
9613551300
main96135-51300
42 parts on this diagram · 1 diagram in section
