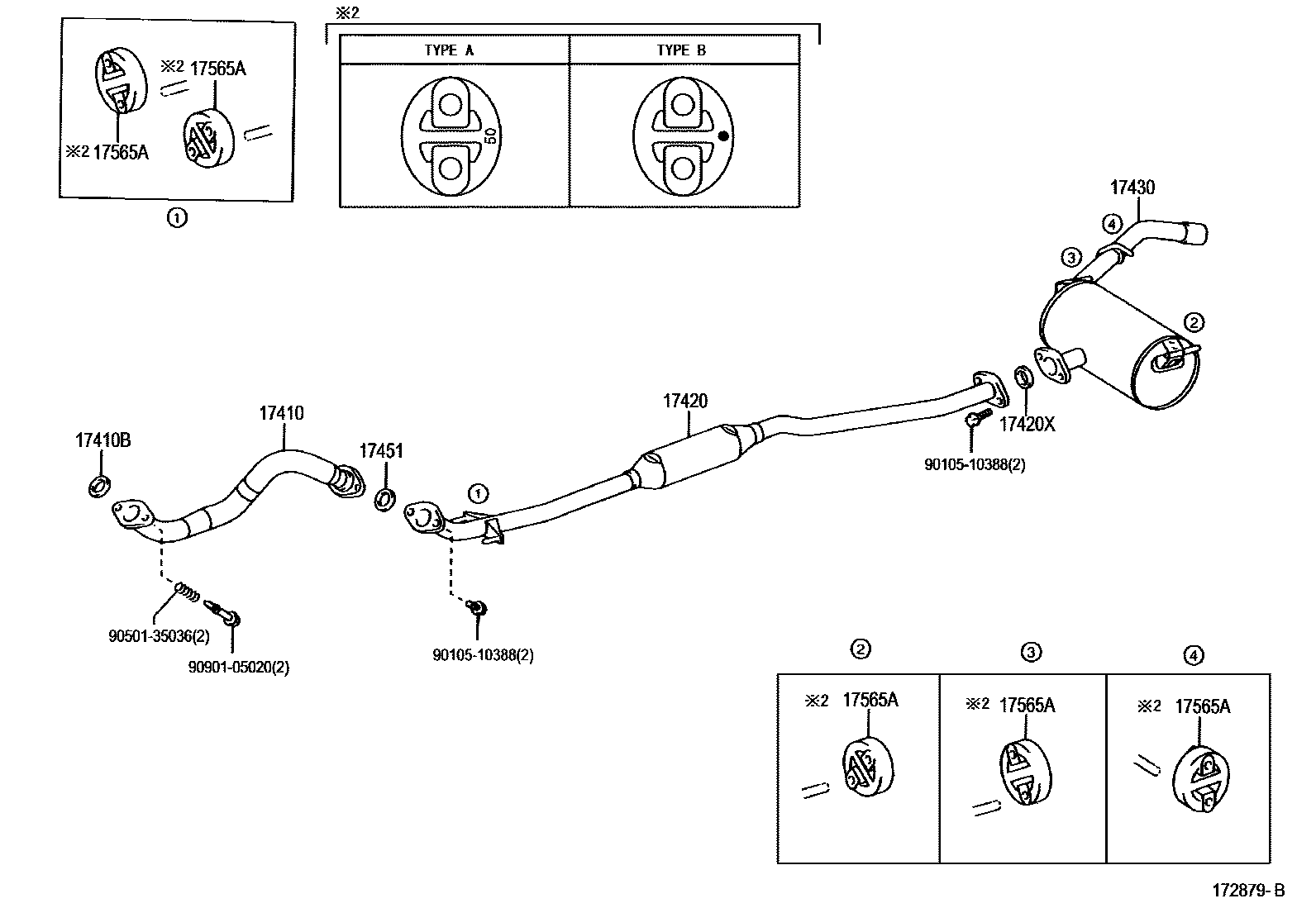

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-27120i1CDFTV..CLM20200105-200507

main17410-28300i1AZFE..ACM20200105-200310

17410BGASKET, EXHAUST PIPE

main17451-22070i1AZFE,1CDFTV..ACM20,CLM20200105-200310

17420PIPE ASSY, EXHAUST, CENTER

main17420-27030i1CDFTV..CLM20200105-200507

*114=TOYOTA/AE5/Y

main17420-28131i1AZFE..ACM20200105-200310

main17420-28430i2AZFE..ACM21200310-200508

main17420-28450i2AZFE..ACM21200310

*114=TOYOTA/GD2/Y

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06073i1AZFE,1CDFTV..ACM20,CLM20200105-200310

17430PIPE ASSY, EXHAUST, TAIL

main17430-27170i1CDFTV..CLM20200310-200507

main17430-28250i1AZFE,1CDFTV..ACM20,CLM20200105-200310

main17430-28590i1AZFE,2AZFE..ACM2#200310

17451GASKET, EXHAUST PIPE

main17451-74060i1CDFTV..CLM20200105-200507

main90917-06078i1AZFE..ACM20200105-200310

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1AZFE,2AZFE,1CDFTV..ACM2#,CLM20200405

TYPE B:REFER ILLUST.

main17565-46040i1AZFE,1CDFTV..ACM20,CLM20200105-200405

main17565-46040i1AZFE,2AZFE,1CDFTV..ACM2#,CLM20200405

TYPE A:REFER ILLUST.

9010510388

main90105-10388

9050135036

main90501-35036

9090105020

main90901-05020

10 parts on this diagram · 2 diagrams in section
