STANDARD TOOL

09110JACK ASSY

main09110-44010iACM20,CLM20..EUR,GEN200105-200310

main09110-44020iACM20..ARL200110-200310

09113HANDLE, JACK

main09113-44010iACM2#,CLM20200310

09120BAG, TOOL

main09120-12011iACM20..ARL,GEN;ACM20,CLM20..LHD200105-200310

W(SPANNER)

main09120-16030iACM20,CLM20200105-200310

09135DRIVER, SCREW

main99915-10700iACM2#..ARL,GEN;ACM20,CLM20..LHD200310

09141SPANNER

main99914-10810iACM20;CLM20..LHD200105-200310

8 X 10

main99914-11214iACM20;CLM20..LHD200105-200310

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iACM2#,CLM20200310-200912

51960HOOK ASSY, FRONT

main51960-28010×2iACM20,CLM20200105-200310

64771FCOVER, SPARE WHEEL

main64771-44010iACM20,CLM20200105-200310

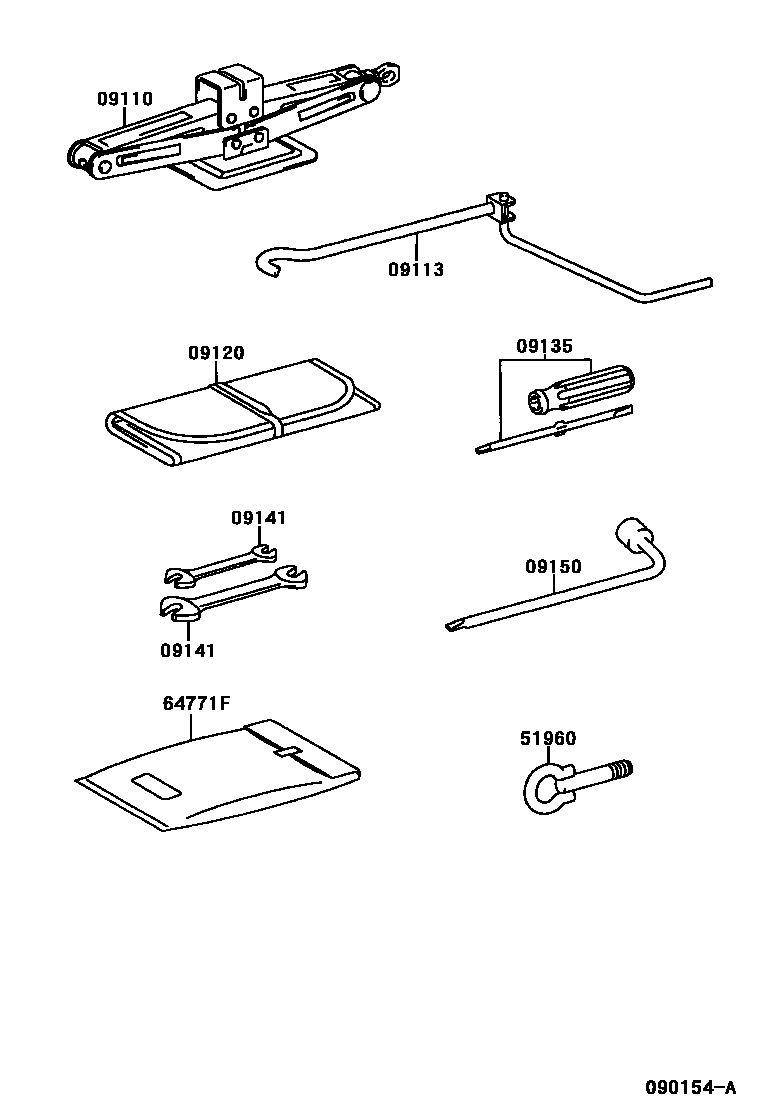

8 parts on this diagram · 1 diagram in section
