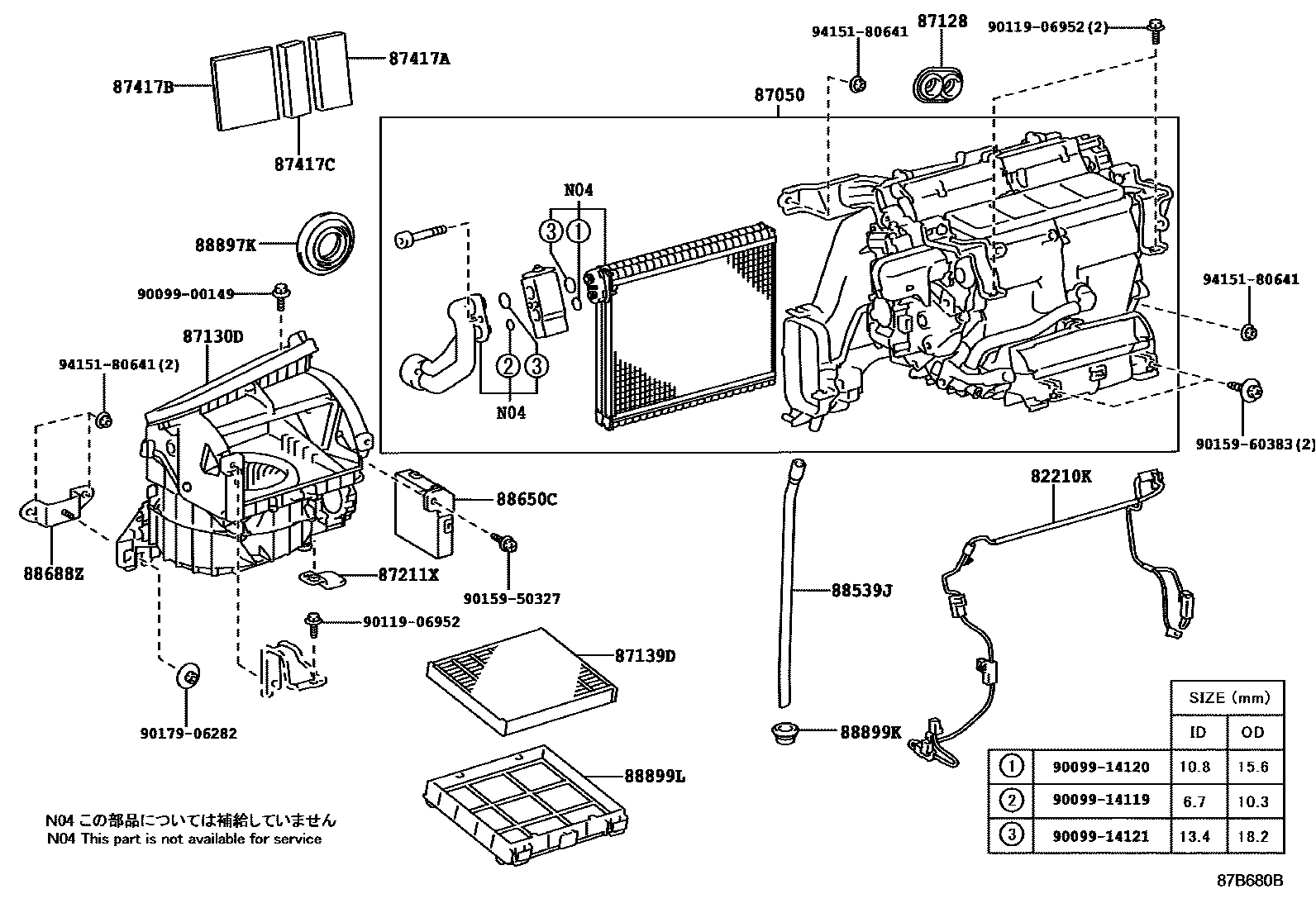

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-77010iLFA10..LHD201012-201212

main82212-77021iLFA10..RHD201012-201212

87050RADIATOR ASSY, AIR CONDITIONER

main87050-77010iLFA10..RHD201012

main87050-77020iLFA10..LHD201012

87128GROMMET, HEATER

main87128-77010iLFA10201012

87130DBLOWER ASSY

main87130-30791iLFA10..RHD201012-201101

main87130-30811iLFA10..LHD201012-201101

main87130-77010iLFA10..RHD201101

main87130-77020iLFA10..LHD201101

87139DELEMENT, AIR REFINER

main87139-30040iLFA10201012-201212

87211XBLOWER COVER

main87211-77160iLFA10..RHD201012

main87211-77170iLFA10..LHD201012

87417APACKING, AIR DUCT

main87417-77010iLFA10201012

87417BPACKING, AIR DUCT

main87417-77020iLFA10201012

87417CPACKING, AIR DUCT

main87417-77030iLFA10201012

88539JHOSE, DRAIN COOLER

main88539-77020iLFA10..RHD201012

main88539-77030iLFA10..LHD201012

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-77010iLFA10..LHD201012

main88650-77020iLFA10..RHD201012

88688ZBRACKET

main88688-77190iLFA10..RHD201012

main88688-77200iLFA10..LHD201012

88897KGROMMET, (FOR COOLER PIPE)

main88897-77190iLFA10201012

88899KPLATE, COVER

main88899-77230iLFA10201012

88899LPARTS, COOLING UNIT

main88899-3A080iLFA10201012

9009900149

main90099-00149

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950327

main90159-50327

9015960383

main90159-60383

9017906282

main90179-06282

9415180641

main94151-80641

24 parts on this diagram · 2 diagrams in section
