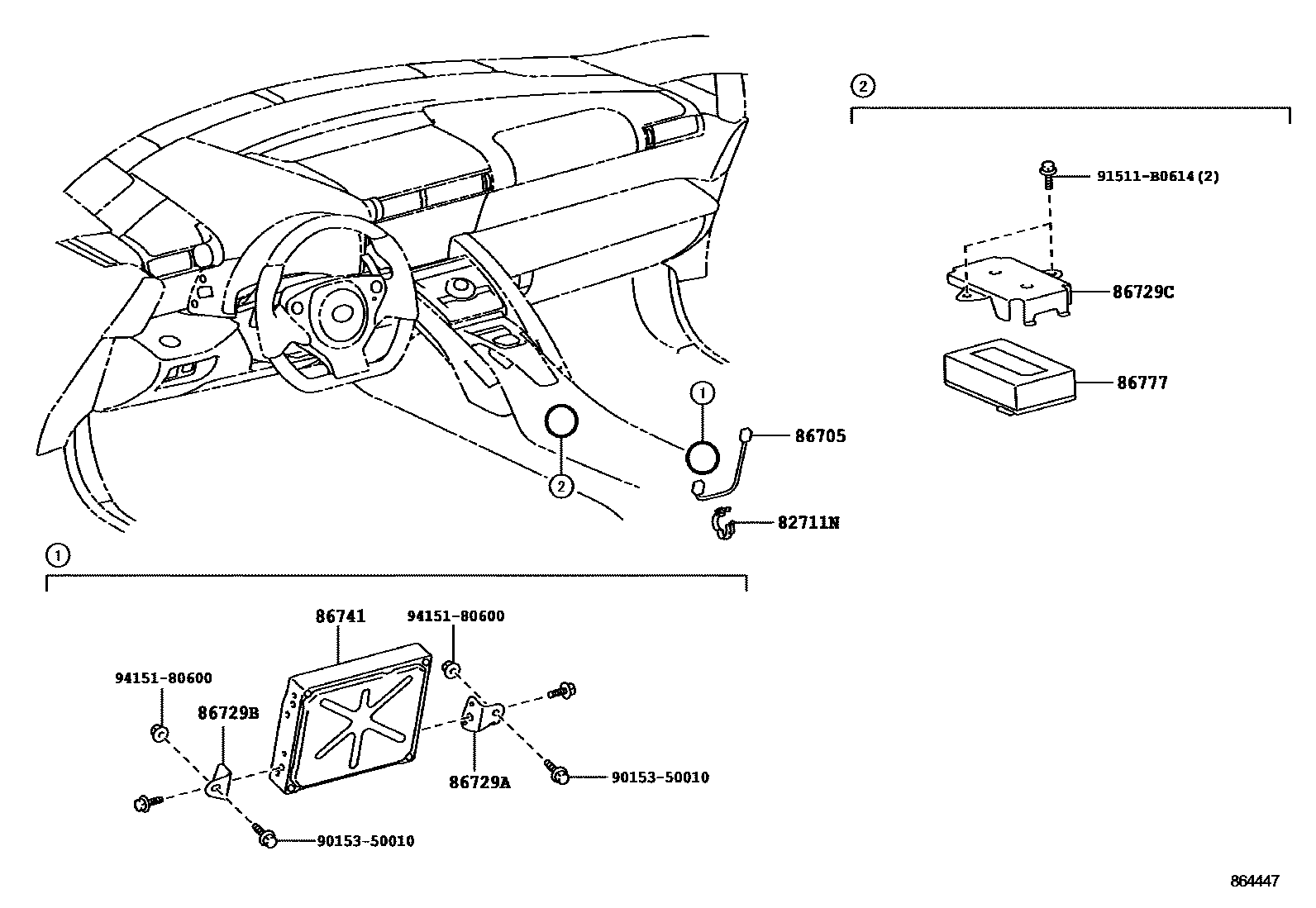

TELEPHONE & MAYDAY

82711NCLAMP, WIRING HARNESS

main82711-10070iLFA10..LHD..EUR201012

MAYDAY SYSTEM-W(TELEMATICS)

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-77020iLFA10..LHD..EUR201012

MAYDAY SYSTEM-W(TELEMATICS)

86729ABRACKET, MOBILEPHONE, NO.1

main86729-77010iLFA10..LHD..EUR201012

MAYDAY SYSTEM-W(TELEMATICS)

86729BBRACKET, MOBILEPHONE, NO.2

main86729-77020iLFA10..LHD..EUR201012

MAYDAY SYSTEM-W(TELEMATICS)

86729CBRACKET, MOBILEPHONE, NO.3

main86729-77030iLFA10..LHD..EUR201012

MAYDAY SYSTEM-W(TELEMATICS)

86741TRANSCEIVER, TELEPHONE

main86741-48040iLFA10..LHD..EUR201012-201205

MAYDAY SYSTEM-W(TELEMATICS)

main86741-48041iLFA10..LHD..EUR201206-201212

MAYDAY SYSTEM-W(TELEMATICS)

sub86741-48042

86777BATTERY, MAYDAY

main86777-0W051iLFA10..LHD..EUR201012-201211

MAYDAY SYSTEM-W(TELEMATICS)

sub86777-76030

9015350010

main90153-50010

91511B0614

main91511-B0614

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
