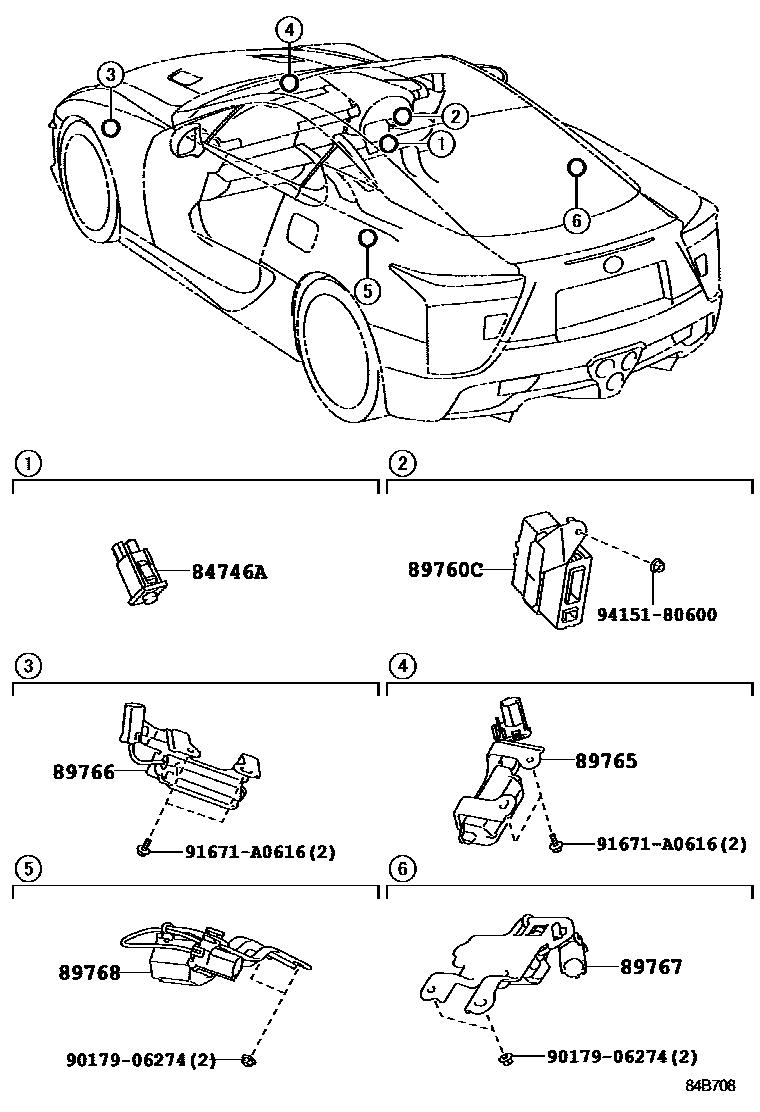

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-48010iLFA10201012

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-77030iLFA10..RHD201012

COSTA RICA SPEC

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-77020iLFA10..RHD201012

PHILIPPINES SPEC

89766ANTENNA, TIRE PRESSURE, FRONT LH

main89766-77020iLFA10..RHD201012

PHILIPPINES SPEC

89767ANTENNA, TIRE PRESSURE, REAR RH

main89767-77020iLFA10..RHD201012

PHILIPPINES SPEC

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-77020iLFA10..RHD201012

PHILIPPINES SPEC

9017906274

main90179-06274

91671A0616

main91671-A0616

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
