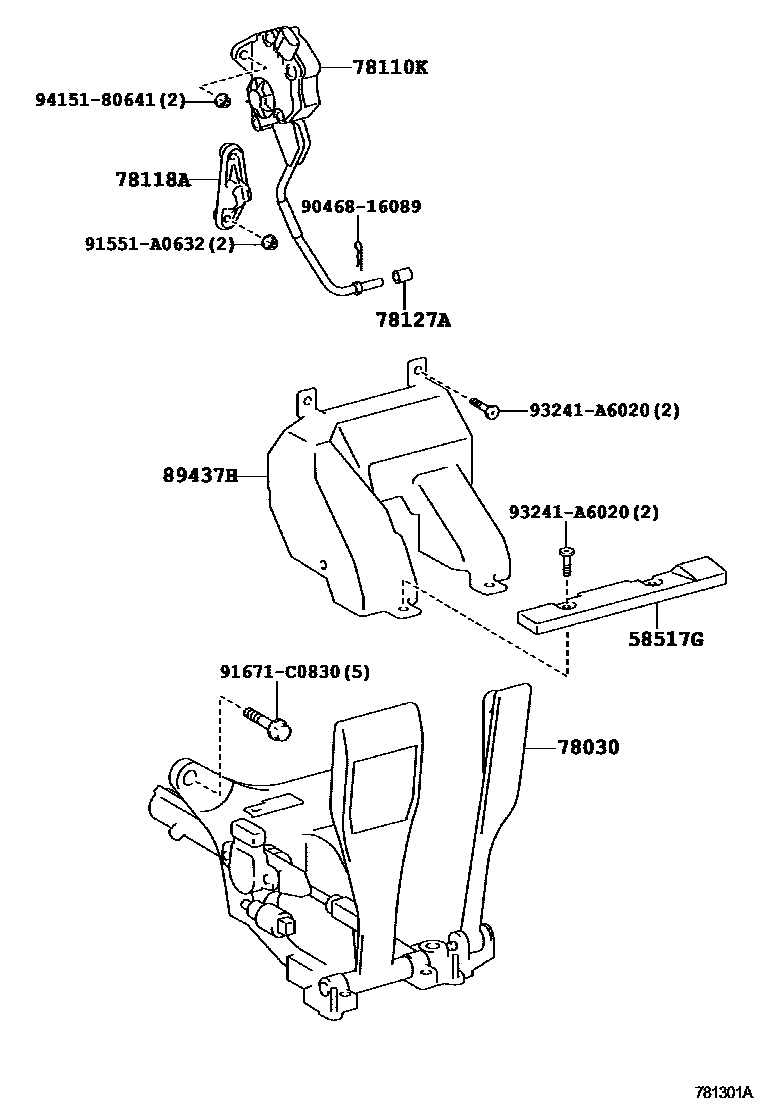

ACCELERATOR LINK

0001 1 0002 1

58517GPAD, HEEL

main58517-77010iLFA10..LHD201012

main58517-77020iLFA10..RHD201012

78030PEDAL ASSY, ACCELERATOR & BRAKE

main47110-77010iLFA10..LHD201012

main47110-77020iLFA10..RHD201012

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-77010iLFA10..LHD201012

sub78110-77030

main78110-77020iLFA10..RHD201012

sub78110-77040

78118ASTOPPER, ACCELERATOR PEDAL

main78118-77010iLFA10201012

78127ABUSH, ACCELERATOR PEDAL TO ROD

main78127-77010iLFA10201012

89437HCOVER, SENSOR

main89437-77020iLFA10..LHD201012

main89437-77030iLFA10..RHD201012

9046816089

main90468-16089

91551A0632

main91551-A0632

91671C0830

main91671-C0830

93241A6020

main93241-A6020

9415180641

main94151-80641

11 parts on this diagram · 2 diagrams in section
