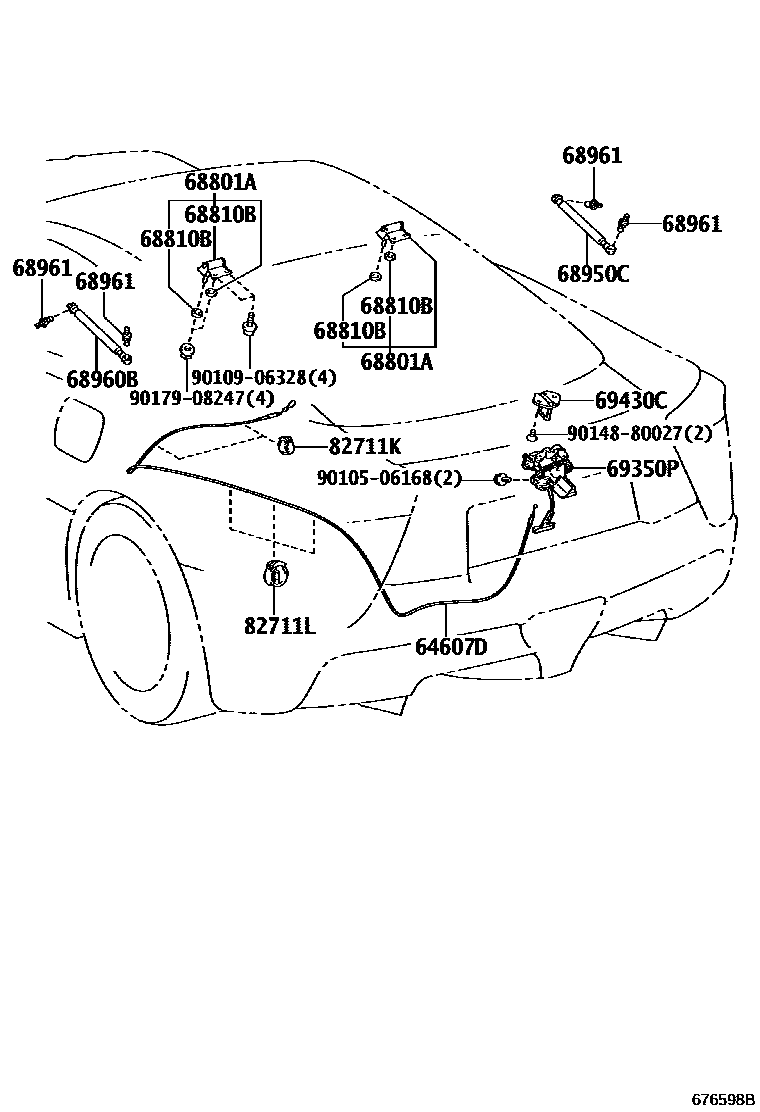

BACK DOOR LOCK & HANDLE

64607DCABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-77010iLFA10201012

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-77010×2iLFA10201012

68810BPAD, BACK DOOR HINGE

main64515-50030×4iLFA10201012

68950CSTAY ASSY, BACK DOOR, RH

main68950-77010iLFA10201012-201112

main68950-77011iLFA10201201

68960BSTAY ASSY, BACK DOOR, LH

main68960-77010iLFA10201012-201112

main68960-77011iLFA10201201

68961BOLT, BACK DOOR STAY

main68961-12050×4iLFA10201012

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-77020iLFA10201012-201212

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-77010iLFA10201012

82711KCLAMP, WIRING HARNESS

main82711-2B660×2iLFA10201012

82711LCLAMP, WIRING HARNESS

main82711-34310×3iLFA10201012

9010506168

main90105-06168

9010906328

main90109-06328

9014880027

main90148-80027

9017908247

main90179-08247

14 parts on this diagram · 1 diagram in section
