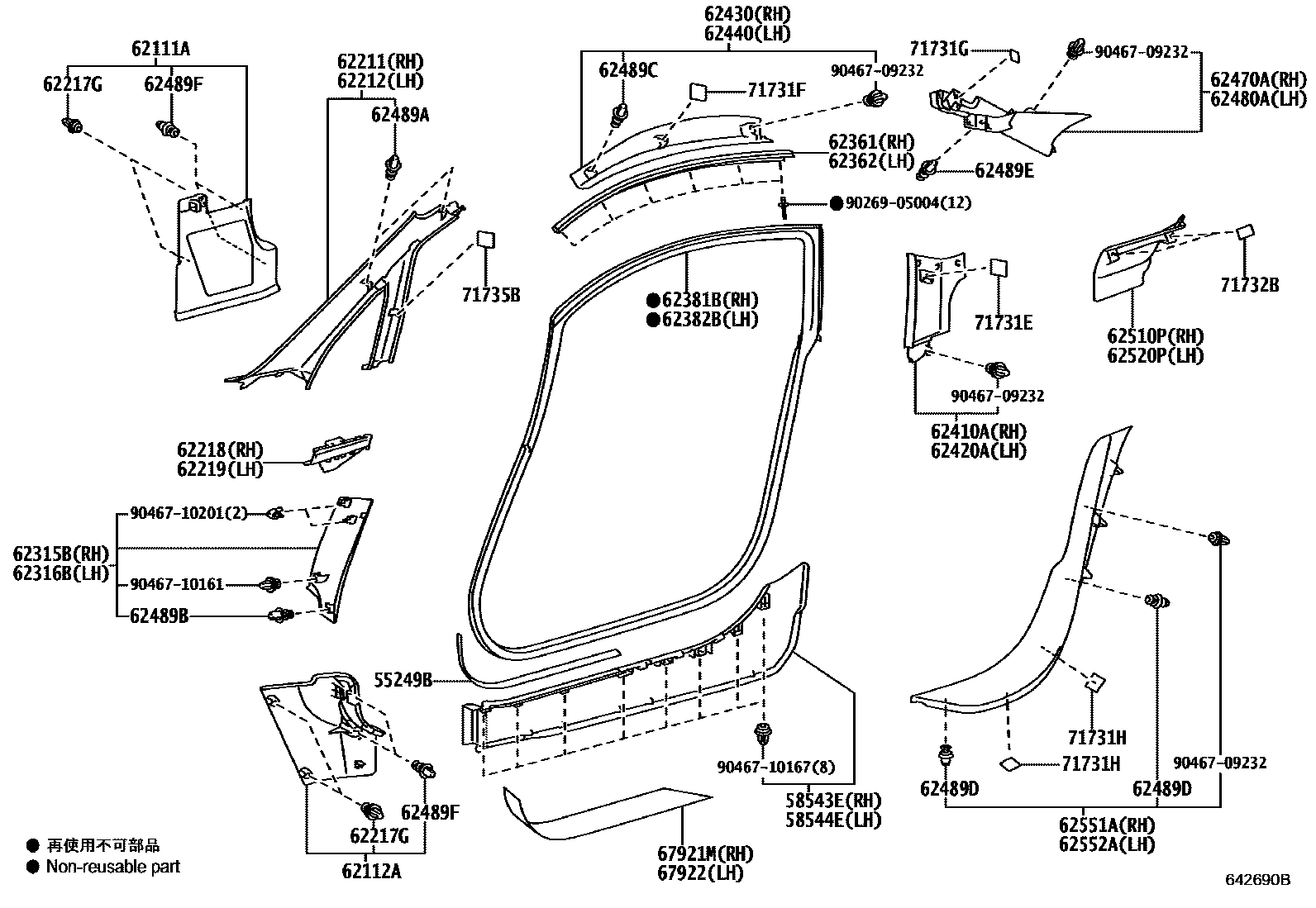

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

55249BSEAL, FRONT PANEL

main55249-77010iLFA10¥10,400201012

58543ECARPET, STEP SIDE, RH

main58543-77010-A0iLFA10201012-201212

CREAM,TRIM20

main58543-77010-C0iLFA10201012-201212

BLACK,TRIM20

main58543-77010-D1iLFA10201012-201212

RED,TRIM20

main58543-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

main58543-77010-J0iLFA10201012-201212

BLUE,TRIM20

58544ECARPET, STEP SIDE, LH

main58544-77010-A0iLFA10201012-201212

CREAM,TRIM20

main58544-77010-C0iLFA10201012-201212

BLACK,TRIM20

main58544-77010-D1iLFA10201012-201212

RED,TRIM20

main58544-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

main58544-77010-J0iLFA10201012-201212

BLUE,TRIM20

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

sub62101-77011

main62101-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

sub62101-77011

main62101-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

sub62101-77011

main62101-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

sub62101-77011

main62101-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

sub62101-77011

main62101-77020-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main62101-77020-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main62101-77020-D1iLFA10..RHD201012-201212

RED,TRIM20

main62101-77020-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main62101-77020-J0iLFA10..RHD201012-201212

BLUE,TRIM20

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main62102-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main62102-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main62102-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main62102-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

main62102-77020-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main62102-77020-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main62102-77020-D1iLFA10..RHD201012-201212

RED,TRIM20

main62102-77020-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main62102-77020-J0iLFA10..RHD201012-201212

BLUE,TRIM20

62211GARNISH, FRONT PILLAR, RH

main62210-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62210-77011¥50,600

main62210-77010-D0iLFA10201012-201212

RED,TRIM20

sub62210-77011¥50,600

main62210-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62210-77011¥50,600

62212GARNISH, FRONT PILLAR, LH

main62220-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62220-77011¥50,600

main62220-77010-D0iLFA10201012-201212

RED,TRIM20

sub62220-77011¥50,600

main62220-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62220-77011¥50,600

62217GCLIP, FRONT PILLAR GARNISH

main62217-13010iLFA10..RHD¥80201012-201201

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-77010iLFA10¥7,200201012

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-77010iLFA10¥7,200201012

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-77010iLFA10¥3,080201012

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-77010iLFA10¥3,080201012

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-77010iLFA10¥11,700201012

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-77010iLFA10¥11,700201012

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-77010iLFA10¥40,200201012

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-77010iLFA10¥40,200201012

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62410-77011¥21,900

main62410-77010-D0iLFA10201012-201212

RED,TRIM20

sub62410-77011¥21,900

main62410-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62410-77011¥21,900

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62420-77011¥21,900

main62420-77010-D0iLFA10201012-201212

RED,TRIM20

sub62420-77011¥21,900

main62420-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62420-77011¥21,900

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62430-77011¥28,400

main62430-77010-D0iLFA10201012-201212

RED,TRIM20

sub62430-77011¥28,400

main62430-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62430-77011¥28,400

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62440-77011¥28,400

main62440-77010-D0iLFA10201012-201212

RED,TRIM20

sub62440-77011¥28,400

main62440-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62440-77011¥28,400

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62470-77011¥32,200

main62470-77010-D0iLFA10201012-201212

RED,TRIM20

sub62470-77011¥32,200

main62470-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62470-77011¥32,200

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62480-77011¥32,200

main62480-77010-D0iLFA10201012-201212

RED,TRIM20

sub62480-77011¥32,200

main62480-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62480-77011¥32,200

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10¥170201012

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10¥170201012

62489CCLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10¥170201012

62489DCLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10¥170201012

62489ECLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10¥170201012

62489FCLIP, ROOF SIDE INNER GARNISH

main62489-77010iLFA10..RHD¥170201012-201201

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62510-77011¥16,700

main62510-77010-D0iLFA10201012-201212

RED,TRIM20

sub62510-77011¥16,700

main62510-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62510-77011¥16,700

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-77010-C1iLFA10201012-201212

BLACK,TRIM20

sub62520-77011¥16,700

main62520-77010-D0iLFA10201012-201212

RED,TRIM20

sub62520-77011¥16,700

main62520-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

sub62520-77011¥16,700

62551ACOVER, REAR SEAT SIDE, RH

main62551-77020-H0iLFA10201012-201212

BORDEAUX,TRIM20

main62551-77020-H5iLFA10201012-201212

SADDLE TAN,TRIM20

main62551-77020-H6iLFA10201012-201212

ORANGE,TRIM20

main62551-77020-H7iLFA10201012-201212

BLACKISH BROWN,TRIM20

main62551-77020-H8iLFA10201012-201212

CAMEL YELLOW,TRIM20

main62551-77020-H9iLFA10201012-201212

VIOLET,TRIM20

main62551-77020-T4iLFA10201012-201212

CREAM,TRIM20

main62551-77020-T5iLFA10201012-201212

BLACK,TRIM20

main62551-77020-T6iLFA10201012-201212

RED,TRIM20

main62551-77020-V6iLFA10201012-201212

BLUE,TRIM20

62552ACOVER, REAR SEAT SIDE, LH

main62552-77020-H4iLFA10201012-201212

SADDLE TAN,TRIM20

main62552-77020-H5iLFA10201012-201212

ORANGE,TRIM20

main62552-77020-H6iLFA10201012-201212

BLACKISH BROWN,TRIM20

main62552-77020-H7iLFA10201012-201212

CAMEL YELLOW,TRIM20

main62552-77020-H8iLFA10201012-201212

VIOLET,TRIM20

main62552-77020-H9iLFA10201012-201212

CREAM,TRIM20

main62552-77020-T4iLFA10201012-201212

BLACK,TRIM20

main62552-77020-T5iLFA10201012-201212

RED,TRIM20

main62552-77020-T6iLFA10201012-201212

BORDEAUX,TRIM20

main62552-77020-V6iLFA10201012-201212

BLUE,TRIM20

67921MPANEL, FRONT DOOR SCUFF, RH

main67921-77010iLFA10¥86,100201012

67922PANEL, FRONT DOOR SCUFF, LH

main67922-77010iLFA10¥86,100201012

71731EFASTENER, SEAT COVER, A

main71731-77010iLFA10¥610201012

71731FFASTENER, SEAT COVER, A

main71731-77010iLFA10¥610201012

71731GFASTENER, SEAT COVER, A

main71731-77010iLFA10¥610201012

71731HFASTENER, SEAT COVER, A

main71731-77010iLFA10¥610201012

71732BFASTENER, SEAT COVER, B

main71732-77010iLFA10¥320201012

71735BFASTENER, SEAT COVER, C

main71735-77010iLFA10¥320201012

9026905004

main90269-05004¥440

9046709232

main90467-09232¥70

9046710161

main90467-10161¥90

9046710167

main90467-10167¥90

9046710201

main90467-10201¥80

45 parts on this diagram · 2 diagrams in section
