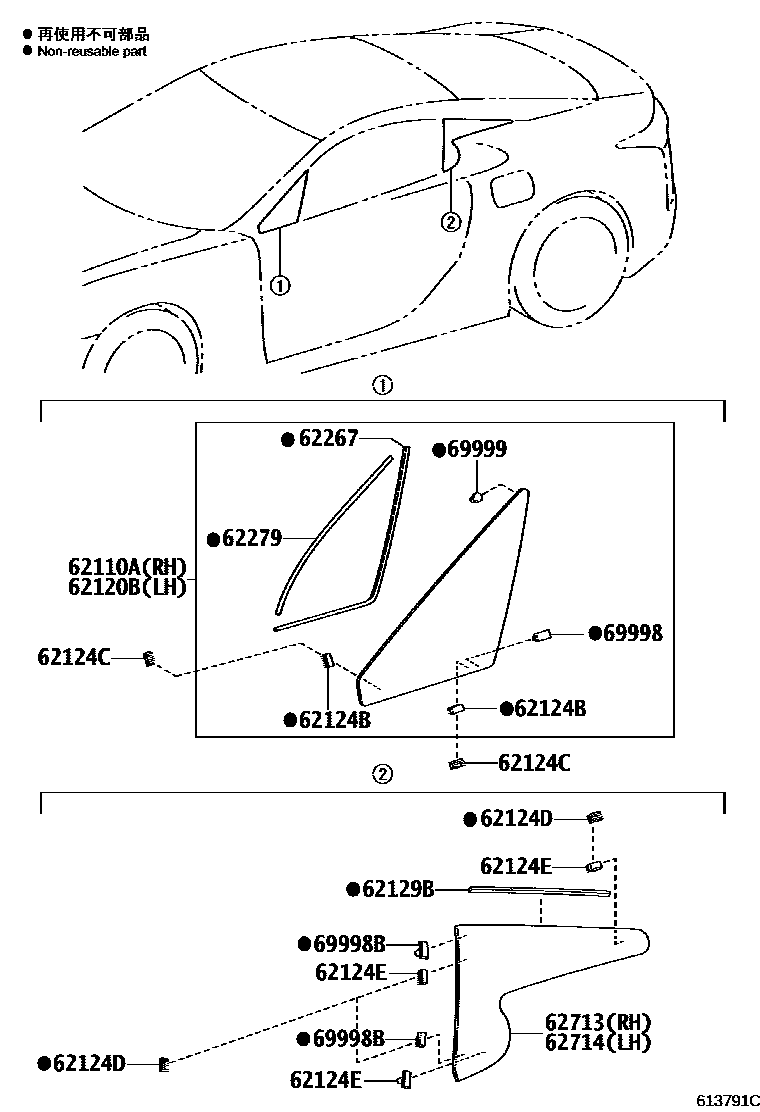

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-77010iLFA10201012-201212

main62110-77020iLFA10..RHD201012-201212

INDONESIA SPEC

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-77010iLFA10201012-201212

main62120-77020iLFA10..RHD201012-201212

INDONESIA SPEC

62124BFASTENER, FRONT SIDE WINDOW FIX

main62124-77010iLFA10201012-201212

62124CFASTENER, FRONT SIDE WINDOW FIX NO.1

main62124-77010iLFA10201012-201212

62124DFASTENER, FRONT SIDE WINDOW FIX NO.2

main62124-77010iLFA10201012-201212

62124EFASTENER, FRONT SIDE WINDOW FIX NO.3

main62124-77010iLFA10201012-201212

62129BDAM, REAR SIDE WINDOW

main56117-50140iLFA10201012-201212

62267DAM, SIDE WINDOW ADHESIVE

main56117-50140iLFA10201012-201212

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-77010iLFA10201012-201212

62713GLASS, QUARTER WINDOW, REAR RH

main62713-77010iLFA10201012-201212

62714GLASS, QUARTER WINDOW, REAR LH

main62714-77010iLFA10201012-201212

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-20020iLFA10201012-201212

69998BPIN, QUARTER WINDOW GUIDE PIECE, NO.2

main69998-20020iLFA10201012-201212

69999PIN, QUARTER WINDOW GUIDE PIECE, NO.2

main69999-77010iLFA10201012-201212

14 parts on this diagram · 1 diagram in section
