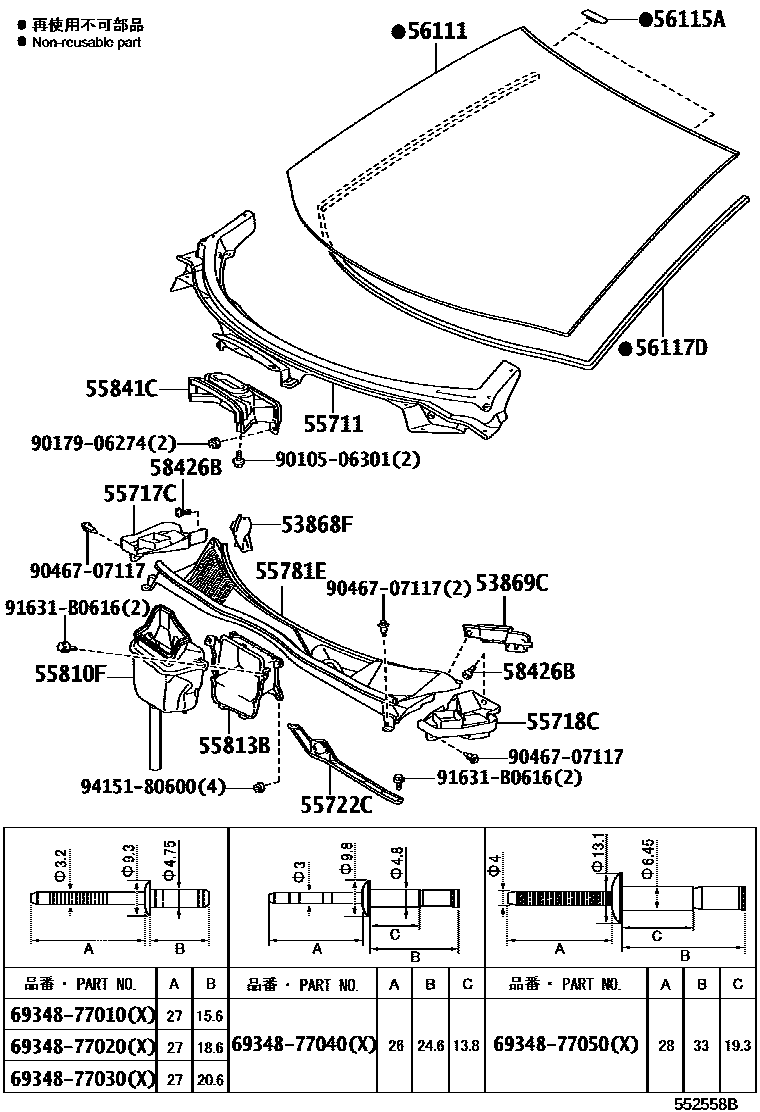

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-77010iLFA10201012

53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-77010iLFA10201012

55711PANEL, COWL TOP, OUTER

main55711-77010iLFA10201012

55717CPROTECTOR, FRONT, LOWER RH

main55717-77010iLFA10201012

55718CPROTECTOR, FRONT, LOWER LH

main55718-77010iLFA10201012

55722CBRACE, COWL TOP TO COWL, INNER

main55721-77010iLFA10..LHD201012

main55721-77020iLFA10..RHD201012

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-77010iLFA10..LHD201012

main55708-77020iLFA10..RHD201012

55810FVENTILATOR ASSY, FRONT

main55810-77010iLFA10..LHD201012

main55810-77020iLFA10..RHD201012

55813BDUCT, SIDE VENTILATOR

main55813-77010iLFA10..LHD201012

main55813-77020iLFA10..RHD201012

55841CDUCT, FRONT REGISTER, UPPER

main55841-77010iLFA10201012

56111GLASS, WINDSHIELD

main56101-77010iLFA10201012

*IRCL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iLFA10201012

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iLFA10201012

*D,L=2883

58426BPROTECTOR, ENGINE SUB COVER

main58426-77020iLFA10201012

6934877010JOINT, ADJUSTING

main69348-77010

6934877020JOINT, ADJUSTING

main69348-77020

6934877030JOINT, ADJUSTING

main69348-77030

6934877040JOINT, ADJUSTING

main69348-77040

6934877050JOINT, ADJUSTING

main69348-77050

9010506301

main90105-06301

9017906274

main90179-06274

9046707117

main90467-07117

91631B0616

main91631-B0616

9415180600

main94151-80600

24 parts on this diagram · 2 diagrams in section
