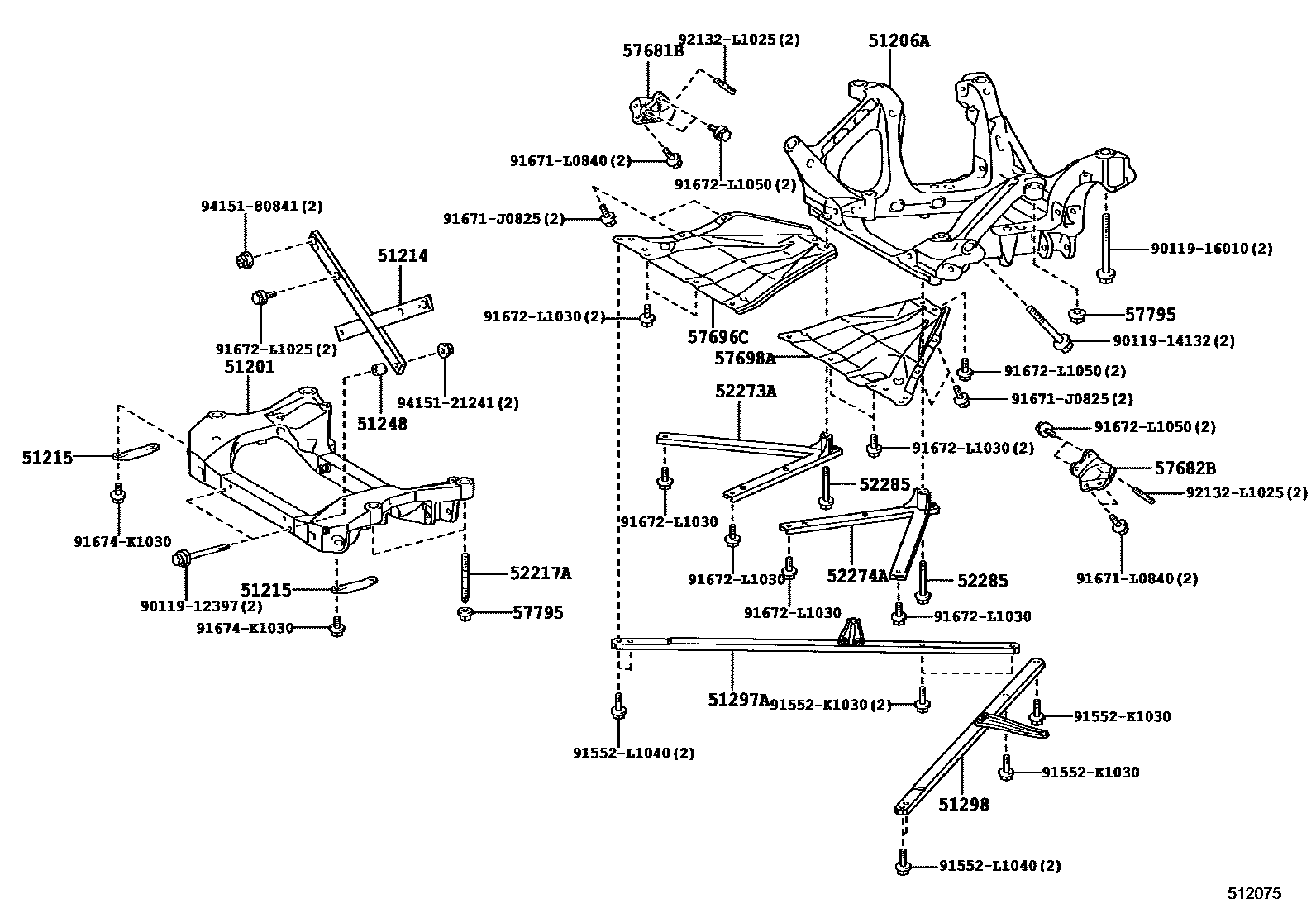

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51214BRACE, FRONT SIDE MEMBER TO SUSPENSION CROSSMEMBER
51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51248SPACER, FLAME CROSSMEMBER
51297AREINFORCEMENT, REAR SUSPENSION MEMBER, LOWER RH
51298REINFORCEMENT, REAR SUSPENSION MEMBER, LOWER LH
52217ABOLT, BODY MOUNTING
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
57681BREINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, RH
57682BREINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, LH
57696CGUIDE, FUEL TANK CROSSMEMBER, RH
57698AGUIDE, FUEL TANK CROSSMEMBER, LH
57795NUT, SUSPENSION MENBER BODY BRACKET
9011912397
main90119-12397
9011914132
main90119-14132
9011916010
main90119-16010
91552K1030
main91552-K1030
91552L1040
main91552-L1040
91671J0825
main91671-J0825
91671L0840
main91671-L0840
91672L1025
main91672-L1025
91672L1030
main91672-L1030
91672L1050
main91672-L1050
91674K1030
main91674-K1030
92132L1025
main92132-L1025
9415121241
main94151-21241
9415180841
main94151-80841
30 parts on this diagram · 2 diagrams in section
