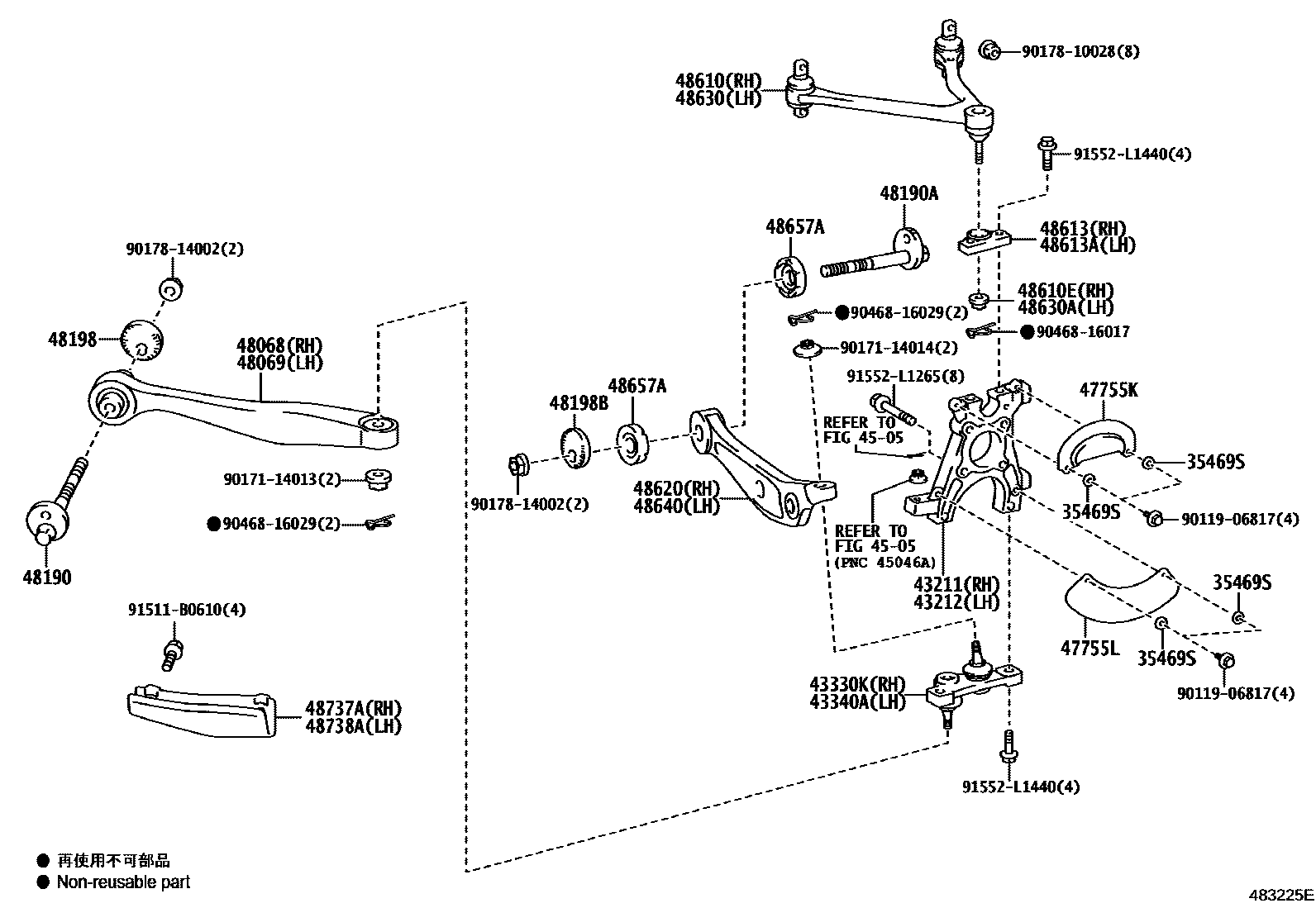

FRONT AXLE ARM & STEERING KNUCKLE
35469SSPACER
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43340AJOINT ASSY, LOWER BALL, FRONT LH
4505
47755KINSULATOR, DISC BRAKE HEAT, NO.1
47755LINSULATOR, DISC BRAKE HEAT, NO.2
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48190CAM ASSY, CAMBER ADJUST
48190ACAM ASSY, CAMBER ADJUST, NO.2
48198CAM, CAMBER ADJUST, NO.2
48198BCAM, CAMBER ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
48613ATTACHMENT, UPR ARM BALL JOINT RH
48613AATTACHMENT, UPR ARM BALL JOINT LH
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
48657ASTOPPER, FRONT LOWER ARM BUSH
48737ACOVER, LOWER CONTROL ARM, RH
48738ACOVER, LOWER CONTROL ARM, LH
9011906817
main90119-06817
9017114013
main90171-14013
9017114014
main90171-14014
9017810028
main90178-10028
9017814002
main90178-14002
9046816017
main90468-16017
9046816029
main90468-16029
91511B0610
main91511-B0610
91552L1265
main91552-L1265
91552L1440
main91552-L1440
35 parts on this diagram · 1 diagram in section
