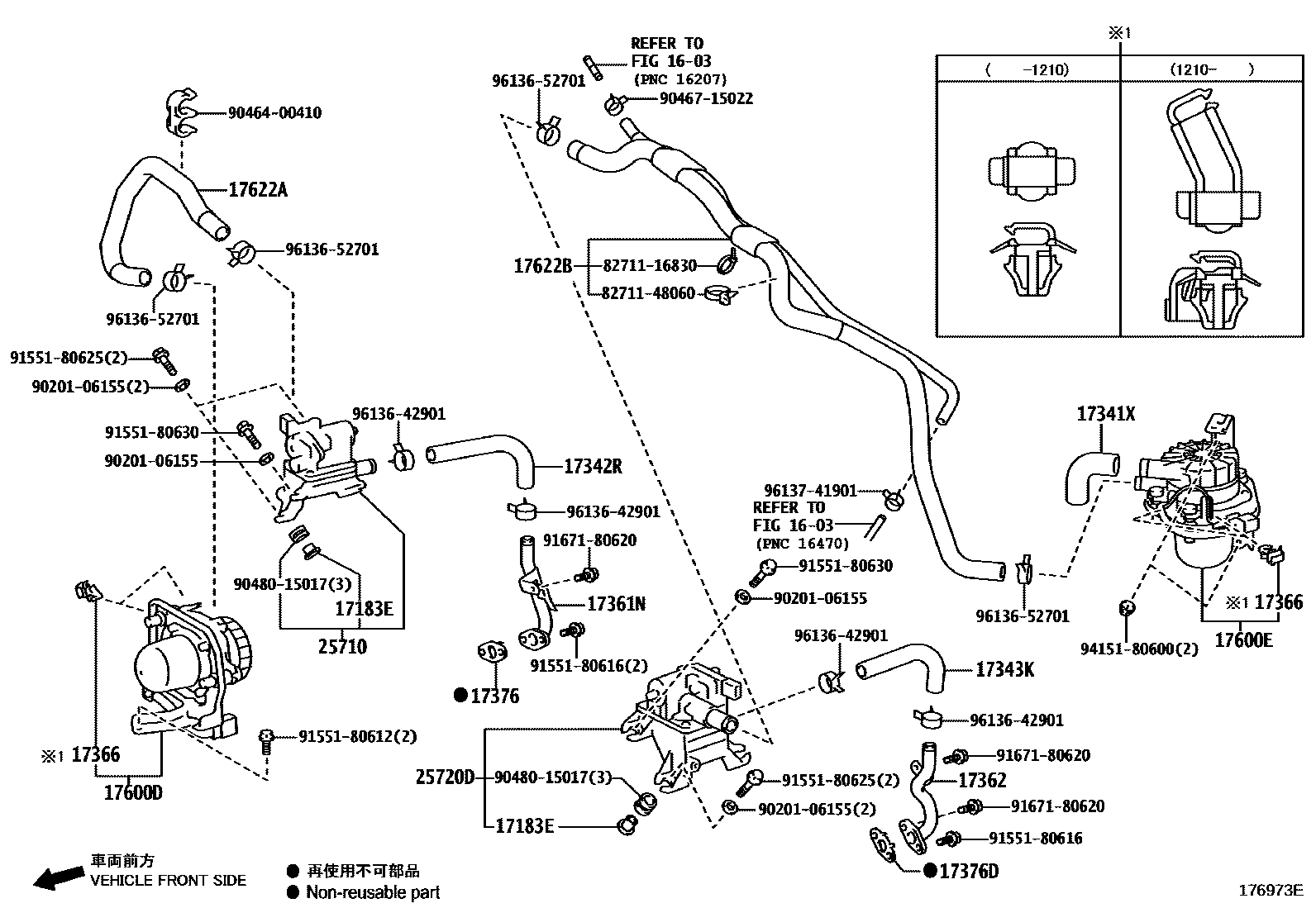

MANIFOLD AIR INJECTION SYSTEM

1603

17183ECOLLAR, MANIFOLD

main17183-45010i1LRGUE..LFA10201012

17341XHOSE, AIR, NO.1

main17341-45070i1LRGUE..LFA10201012

17342RHOSE, AIR, NO.2

main17342-45040i1LRGUE..LFA10201012

17343KHOSE, AIR, NO.3

main17343-45040i1LRGUE..LFA10201012

17361NTUBE, AIR, NO.1

main17361-45010i1LRGUE..LFA10201012

17362TUBE, AIR, NO.2

main17362-45010i1LRGUE..LFA10201012

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0P010i1LRGUE..LFA10201210

main17366-38020i1LRGUE..LFA10201012-201210

17376GASKET, AIR TUBE, NO.1

main17376-38020i1LRGUE..LFA10201012

17376DGASKET, AIR TUBE, NO.2

main17376-38020i1LRGUE..LFA10201012

17600DPUMP ASSY, AIR W/BRACKET, RH

main17600-0W080i1LRGUE..LFA10201012

17600EPUMP ASSY, AIR W/BRACKET, LH

main17600-0W090i1LRGUE..LFA10201012

17622AOUTLET, AIR PUMP, RH

main17622-45020i1LRGUE..LFA10201012

17622BOUTLET, AIR PUMP, LH

main17622-45030i1LRGUE..LFA10201012

25710VALVE ASSY, AIR SWITCHING

main25710-45050i1LRGUE..LFA10201012

25720DVALVE ASSY, AIR SWITCHING, NO.2

main25720-45010i1LRGUE..LFA10201012

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

9020106155

main90201-06155

9046400410

main90464-00410

9046715022

main90467-15022

9048015017

main90480-15017

9155180612

main91551-80612

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9167180620

main91671-80620

9415180600

main94151-80600

9613642901

main96136-42901

9613652701

main96136-52701

9613741901

main96137-41901

31 parts on this diagram · 1 diagram in section
