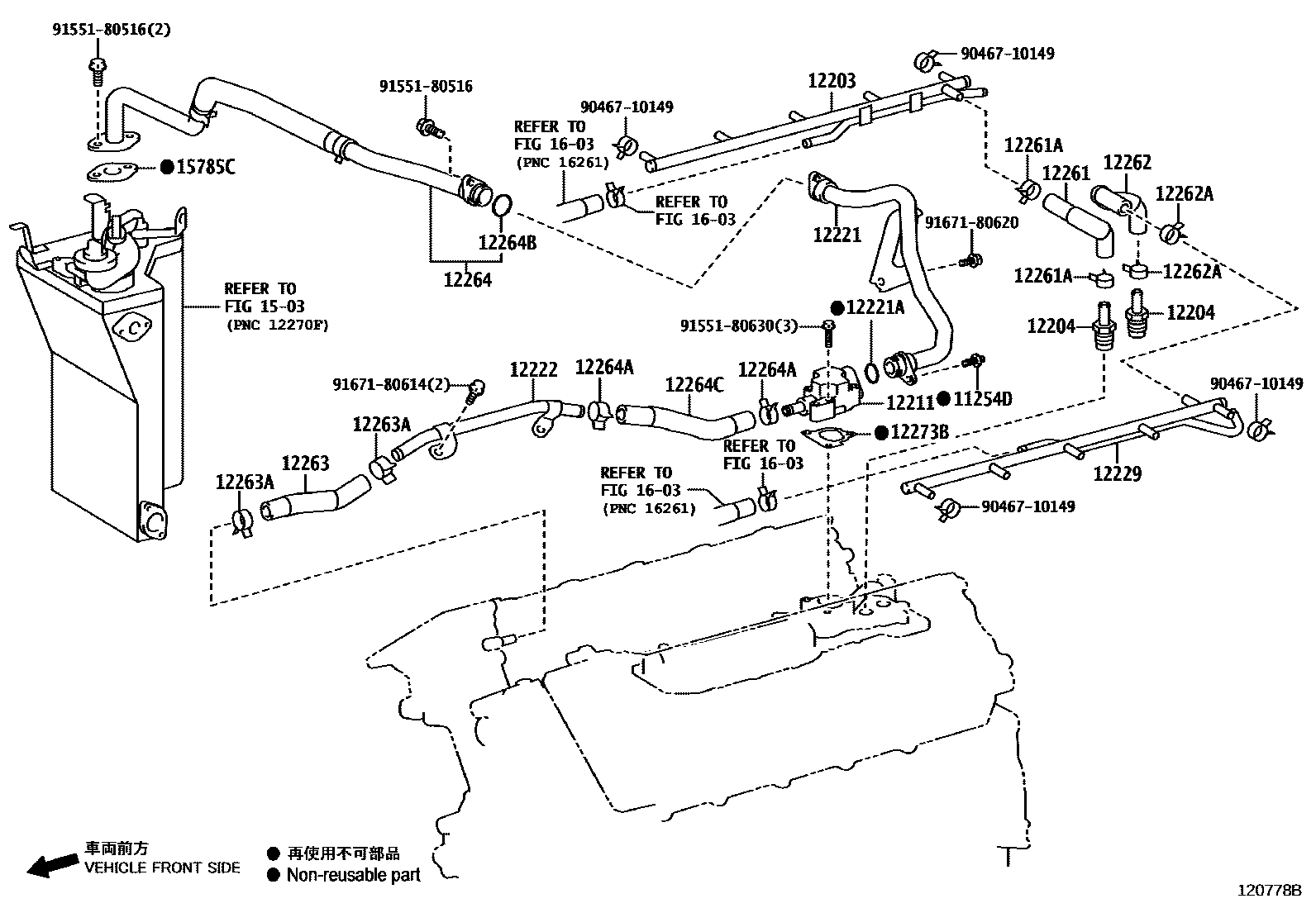

VENTILATION HOSE
11254DBOLT, V-BANK COVER
12203PIPE SUB-ASSY, VENTILATION
12204VALVE SUB-ASSY, VENTILATION
12211CASE, VENTILATION, NO.1
12221TUBE, VENTILATION NO.1
12221ARING, O(FOR VENTILATION TUBE NO.1)
12222TUBE, VENTILATION, NO.2
12229PIPE, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12264HOSE, VENTILATION, NO.4
12264ACLIP(FOR VENTILATION HOSE)
12264BRING O(FOR VENTILATION HOSE NO.4)
12264CHOSE, VENTILATION, NO.5
12273BGASKET, OIL SEPARATOR
1503
15785CGASKET, OIL COOLER
1603
9046710149
main90467-10149
9155180516
main91551-80516
9155180630
main91551-80630
9167180614
main91671-80614
9167180620
main91671-80620
27 parts on this diagram · 1 diagram in section
