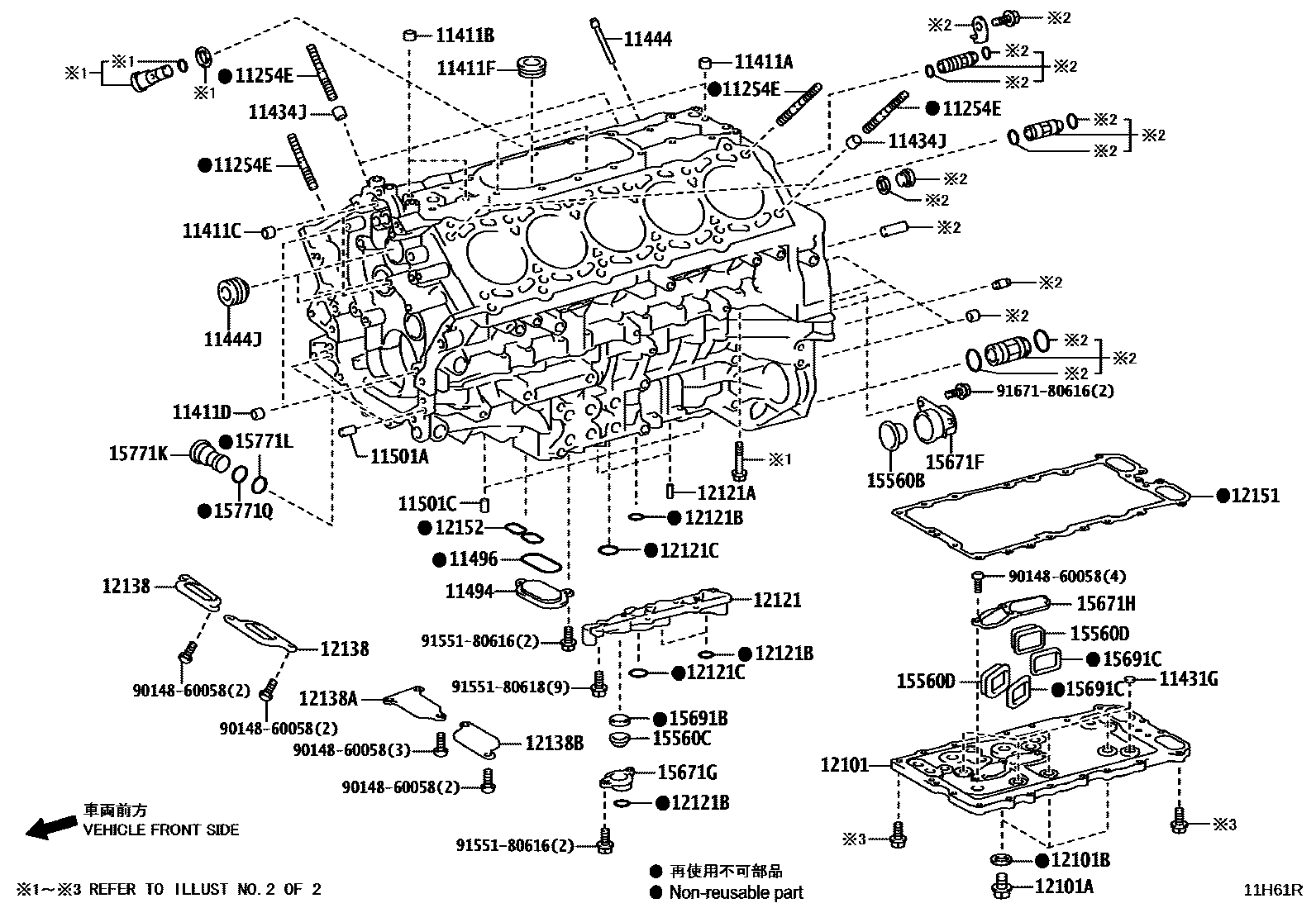

CYLINDER BLOCK
11254EBOLT, V-BANK COVER
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11411BPIN, RING(FOR CYLINDER BLOCK NO.2)
11411CPIN, RING(FOR CYLINDER BLOCK NO.3)
11411DPIN, RING(FOR CYLINDER BLOCK NO.4)
11411FPLUG, STRAIGHT SCREW(FOR CYLINDER BLOCK)
11431GPLUG, TIGHT
11434JPIN, RING (FOR CYLINDER HEAD SET)
11444PLUG, HOLE
11444JPLUG, HOLE
11494PLATE, OIL HOLE COVER
11496GASKET, OIL HOLE COVER PLATE
11501APIN, STRAIGHT(FOR CRANKSHAFT BEARING CAP FRONT)
11501CPIN, STRAIGHT(FOR OIL PAN COVER)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
12121APIN, STRAIGHT(FOR OIL PAN BAFFLE PLATE)
12121BRING O(OIL PAN BAFFLE PLATE NO.1)
12121CRING O(OIL PAN BAFFLE PLATE NO.2)
12138PLATE, OIL PAN BOTTOM, NO.1
12138APLATE, OIL PAN BOTTOM, NO.2
12138BPLATE, OIL PAN BOTTOM, NO.3
12151GASKET, OIL PAN
12152GASKET, OIL PAN, NO.2
15560BFILTER ASSY, BY-PASS FLOW OIL, NO.1
15560CFILTER ASSY, BY-PASS FLOW OIL, NO.2
15560DFILTER ASSY, BY-PASS FLOW OIL, NO.3
15671FBRACKET, OIL FILTER, NO.1
15671GBRACKET, OIL FILTER, NO.2
15671HBRACKET, OIL FILTER, NO.3
15691BGASKET, OIL FILTER
15691CGASKET, OIL FILTER, NO.2
15771KPIPE, OIL, NO.1
15771LRING, O(FOR OIL PIPE NO.1)
15771QRING, O(FOR OIL PIPE NO.2)
9014860058
main90148-60058
9155180616
main91551-80616
9155180618
main91551-80618
9167180616
main91671-80616
41 parts on this diagram · 2 diagrams in section
