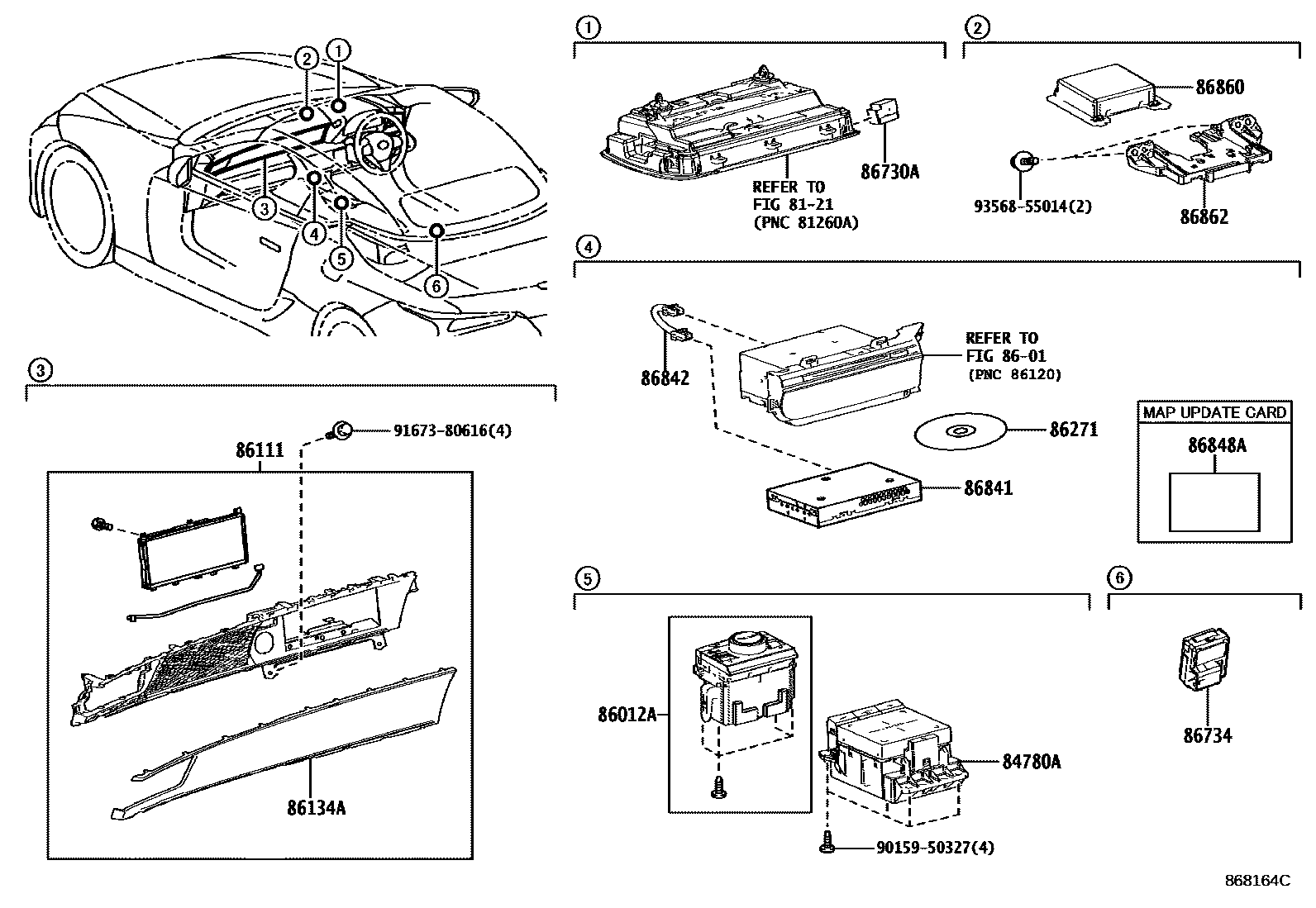

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

8121

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-11011iURZ100202007-202111

main84780-11170iURZ100202111

main84780-11031iURZ100..GEN202007-202111

CURACAO SPEC

main84780-11180iURZ100..GEN202111

GUATEMALA SPEC

8601

86012APARTS SET, RADIO SETTING

main86011-11030iURZ100202007

86111MULTI-DISPLAY

main86111-11010iURZ100..RHD202007

DENSO

main86111-11022iURZ100..LHD202007

DENSO

86134APARTS, MULTI-DISPLAY

main86134-11010iURZ100..LHD202007

main86134-11020iURZ100..RHD202007

86271DISC, DISC PLAYER

main86807-11034iURZ100..GCC202007-202106

main86807-11035iURZ100..GCC202107-202209

main86807-11036iURZ100..GCC202210

sub86807-11037

main86807-11013supersedes 86807-11025iURZ100..ARL202007-202106

BRUNEI SPEC

main86807-11014supersedes 86807-11045iURZ100..ARL202107-202209

BRUNEI SPEC

main86807-11015iURZ100..ARL202210

BRUNEI SPEC

sub86807-11016

main86807-11064supersedes 86807-11045iURZ100..ARL202007-202106

SOUTH AFRICA SPEC

main86807-11065iURZ100..ARL202107-202210

SOUTH AFRICA SPEC

sub86807-11066

main86807-11073supersedes 86807-11025iURZ100..GEN202007-202106

PANAMA SPEC

main86807-11074iURZ100..GEN202107-202210

PANAMA SPEC

sub86807-11075

main86807-33012supersedes 86807-11025iURZ100..GEN202007-202106

ARGENTINA SPEC

main86807-33013supersedes 86807-11025iURZ100..GEN202107-202207

ARGENTINA SPEC

main86807-33014supersedes 86807-11025iURZ100..GEN202208

ARGENTINA SPEC

sub86807-33015

86730AMICROPHONE ASSY, TELEPHONE

main86250-12020iURZ100202007

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iURZ100202007

86841COMPUTER, NAVIGATION

main86840-0W230iURZ100..EUR202007-202204

main86840-0W231iURZ100..EUR202204

main86840-48192iURZ100..GCC202007-202106

main86840-48193iURZ100..GCC202107-202206

main86840-48194iURZ100..GCC202207

sub86840-48195

main86840-0W240iURZ100..LHD..EUR202007-202209

TURKEY SPEC

main86840-11190supersedes 86840-48264iURZ100..GEN202007

GUATEMALA SPEC

main86840-48212supersedes 86840-48264iURZ100..GEN202007-202106

PANAMA SPEC

main86840-48213supersedes 86840-48264iURZ100..GEN202107-202210

PANAMA SPEC

sub86840-48214

main86840-48242supersedes 86840-48224iURZ100..ARL202007-202106

BRUNEI SPEC

main86840-48243supersedes 86840-48264iURZ100..ARL202107-202206

BRUNEI SPEC

main86840-48244supersedes 86840-48224iURZ100..ARL202207

BRUNEI SPEC

sub86840-48245

main86840-48272supersedes 86840-48224iURZ100..ARL202007-202106

SOUTH AFRICA SPEC

main86840-48273supersedes 86840-48224iURZ100..ARL202107-202210

SOUTH AFRICA SPEC

sub86840-48274

main86840-48282supersedes 86840-48264iURZ100..GEN202007-202106

ARGENTINA SPEC

main86840-48283supersedes 86840-48264iURZ100..GEN202107-202206

ARGENTINA SPEC

main86840-48284supersedes 86840-48264iURZ100..GEN202207

ARGENTINA SPEC

86842WIRE, NAVIGATION, NO.1

main86842-11010iURZ100202007

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33060iURZ100..GCC202007

main86848-33010supersedes 86848-33050iURZ100..GEN202007

ARGENTINA SPEC

main86848-33020supersedes 86848-33050iURZ100..GEN202007-202210

PANAMA SPEC

main86848-33070supersedes 86848-33040iURZ100..ARL202007

BRUNEI SPEC

main86848-33080supersedes 86848-33040iURZ100..ARL202007-202210

SOUTH AFRICA SPEC

86860ANTENNA ASSY, NAVIGATION

main86860-78010iURZ100202007

main86880-11020iURZ100..GCC202009

U.A.E SPEC

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iURZ100202007

9015950327

main90159-50327

9167380616

main91673-80616

9356855014

main93568-55014

17 parts on this diagram · 4 diagrams in section
