SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W450iURZ100..EUR202007

RH

main86150-0W460iURZ100..GEN202007

LH

main86150-11020iURZ100..GEN202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER,RH

main86150-11020iURZ100..GEN202007-202210

RH

main86150-11030iURZ100..EUR202007-202210

LH

main86150-11030iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX50iURZ100..GEN202007

main86160-11070iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86160-11070iURZ100..EUR202007-202210

86160BSPEAKER ASSY, REAR

main86150-0W430iURZ100..GEN202007

main86150-33070iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86150-33070iURZ100..EUR202007-202210

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WX50iURZ100..ARL,GCC202007

main86160-11060iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86160-11060iURZ100..EUR202007-202210

86160YSPEAKER ASSY, REAR NO.2

main86160-0WS20iURZ100..GEN202007-202103

AUDIO-EMV & *MAR & AM/FM & DVD & 13SPEAKER

main86160-33A40iURZ100..GEN202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86160-33A40iURZ100..EUR202007-202210

main86160-78090iURZ100..GEN202104

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-11010iURZ100202007

9011906951

main90119-06951

9011906983

main90119-06983

9015950311

main90159-50311

9015960303

main90159-60303

9018906246

main90189-06246

9167380620

main91673-80620

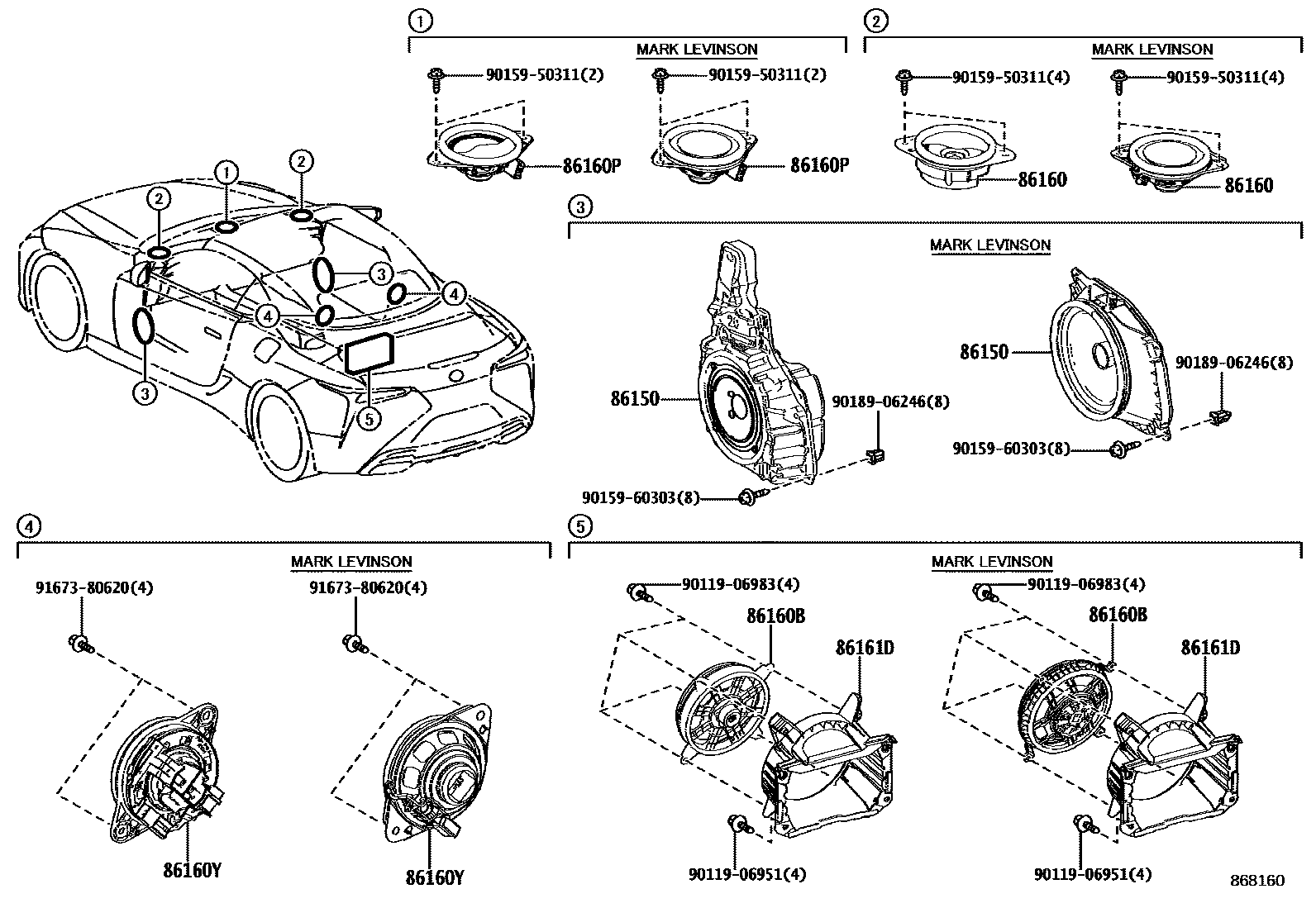

12 parts on this diagram · 1 diagram in section
