WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1LUGGAGE ROOM 0011 1FLOOR & ROOF 0012 1FLOOR UNDER 0013 1FLOOR UNDER 0014 1SEAT 0015 1CLAMP & BRACKET 0016 1CLAMP & BRACKET 0017 1CONNECTOR 1/2 0018 1CONNECTOR 2/2

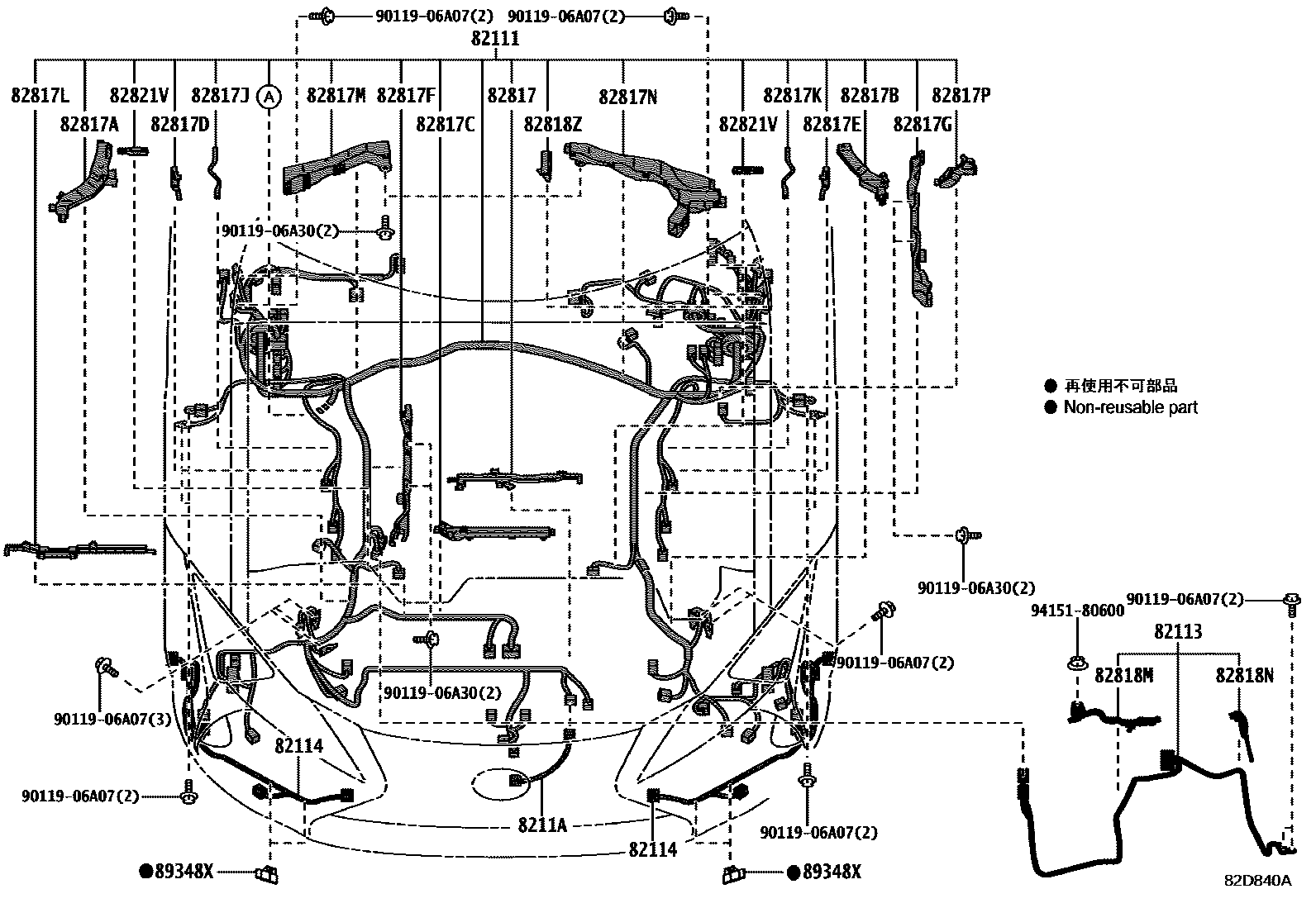

82111WIRE, ENGINE ROOM MAIN

main82111-11033iURZ100..LHD202111

main82111-11510iURZ100..LHD..(EUR,GEN)202007-202110

sub82111-11033

main82111-11520iURZ100..RHD¥165,000202007

main82111-11550iURZ100..GCC202007-202111

82113WIRE, ENGINE ROOM, NO.3

main82113-11010iURZ100..LHD202007

main82113-50130iURZ100..RHD¥7,700202007

82114WIRE, ENGINE ROOM, NO.4

main82114-11020iURZ100¥1,430202007

8211AWIRE, ENGINE ROOM, NO.6

main8211A-11010iURZ100¥810202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-11670iURZ100¥610202007

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-11740iURZ100¥1,010202007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-11780iURZ100¥930202007

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-11790iURZ100¥970202007

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50P80iURZ100¥400202007

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50P90iURZ100¥440202007

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-50Q10iURZ100¥2,120202007

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50Q60iURZ100¥2,440202007

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50Z70iURZ100¥530202007

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-50Z80iURZ100¥530202007

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-11770iURZ100..LHD202007

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-50N50iURZ100..LHD202007

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-5AA70iURZ100..LHD202007

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-5AD60iURZ100..LHD202007

main82817-5AD70iURZ100..RHD¥630202007

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-11700iURZ100..RHD¥330202007

82818MPROTECTOR, WIRING HARNESS, NO.13

main82817-50P40iURZ100..LHD202007

main82817-50P50iURZ100..RHD¥970202007

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-5AE30iURZ100¥390202007

82818ZPROTECTOR, WIRING HARNESS, NO.22

main82817-12860iURZ100¥80202007

82821VCOVER, CONNECTOR

main82821-11070iURZ100¥280202007

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iURZ100¥260202007

9011906A07

main90119-06A07¥60

9011906A30

main90119-06A30¥80

9415180600

main94151-80600¥60

27 parts on this diagram · 18 diagrams in section
