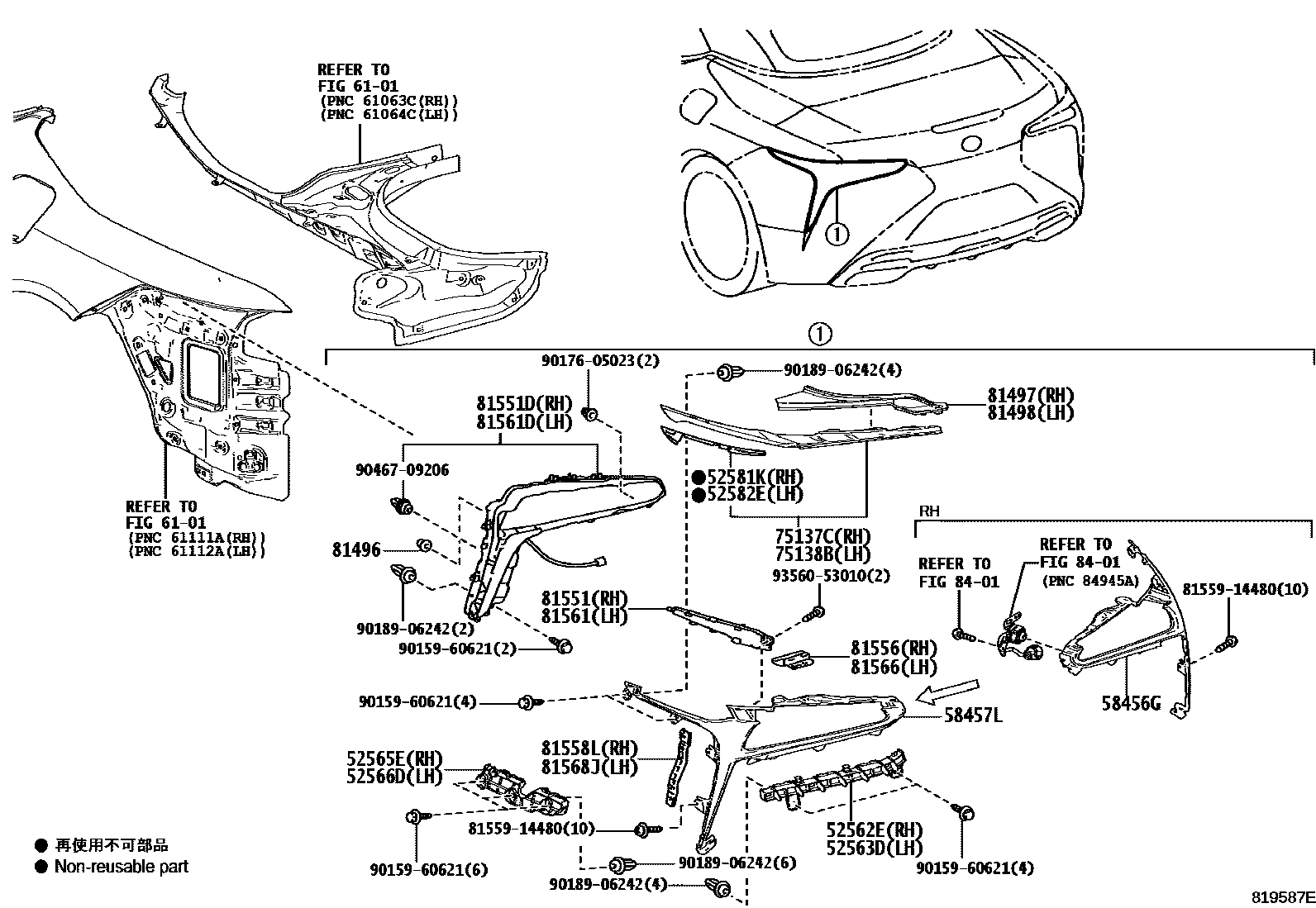

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-11010iURZ100202007

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-11010iURZ100202007

52565ERETAINER, REAR BUMPER, LOWER RH

main52565-11010iURZ100202007

52566DRETAINER, REAR BUMPER, LOWER LH

main52566-11010iURZ100202007

52581KPROTECTOR, REAR BUMPER, RH

main52581-11010iURZ100202007

52582EPROTECTOR, REAR BUMPER, LH

main52582-11010iURZ100202007

58456GBRACKET, REAR GARNISH, NO.1 RH

main58456-11030iURZ100202007-202111

main58456-11060iURZ100202111

58457LBRACKET, REAR GARNISH, NO.1 LH

main58457-11030iURZ100202007-202111

main58457-11060iURZ100202111

6101

75137CCOVER, COMBINATION REAR LAMP, RH

main75137-11030iURZ100202007

75138BCOVER, COMBINATION REAR LAMP, LH

main75138-11030iURZ100202007

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iURZ100202007

81497COVER, REAR COMBINATION LAMP, RH

main81497-11010iURZ100202007

81498COVER, REAR COMBINATION LAMP, LH

main81498-11010iURZ100202007

81551LENS, REAR COMBINATION LAMP, RH

main81553-11170iURZ100202007

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-11200iURZ100202007

81556RIM, REAR COMBINATION LAMP, RH

main81556-11160iURZ100202007

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-11160iURZ100202007

81561LENS, REAR COMBINATION LAMP, LH

main81563-11170iURZ100202007

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-11200iURZ100202007

81566RIM, REAR COMBINATION LAMP, LH

main81566-11160iURZ100202007

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-11160iURZ100202007

8401

8155914480MOULDING, REAR COMBINATION LAMP, RH

main81559-14480

9015960621

main90159-60621

9017605023

main90176-05023

9018906242

main90189-06242

9046709206

main90467-09206

9356053010

main93560-53010

29 parts on this diagram · 1 diagram in section
