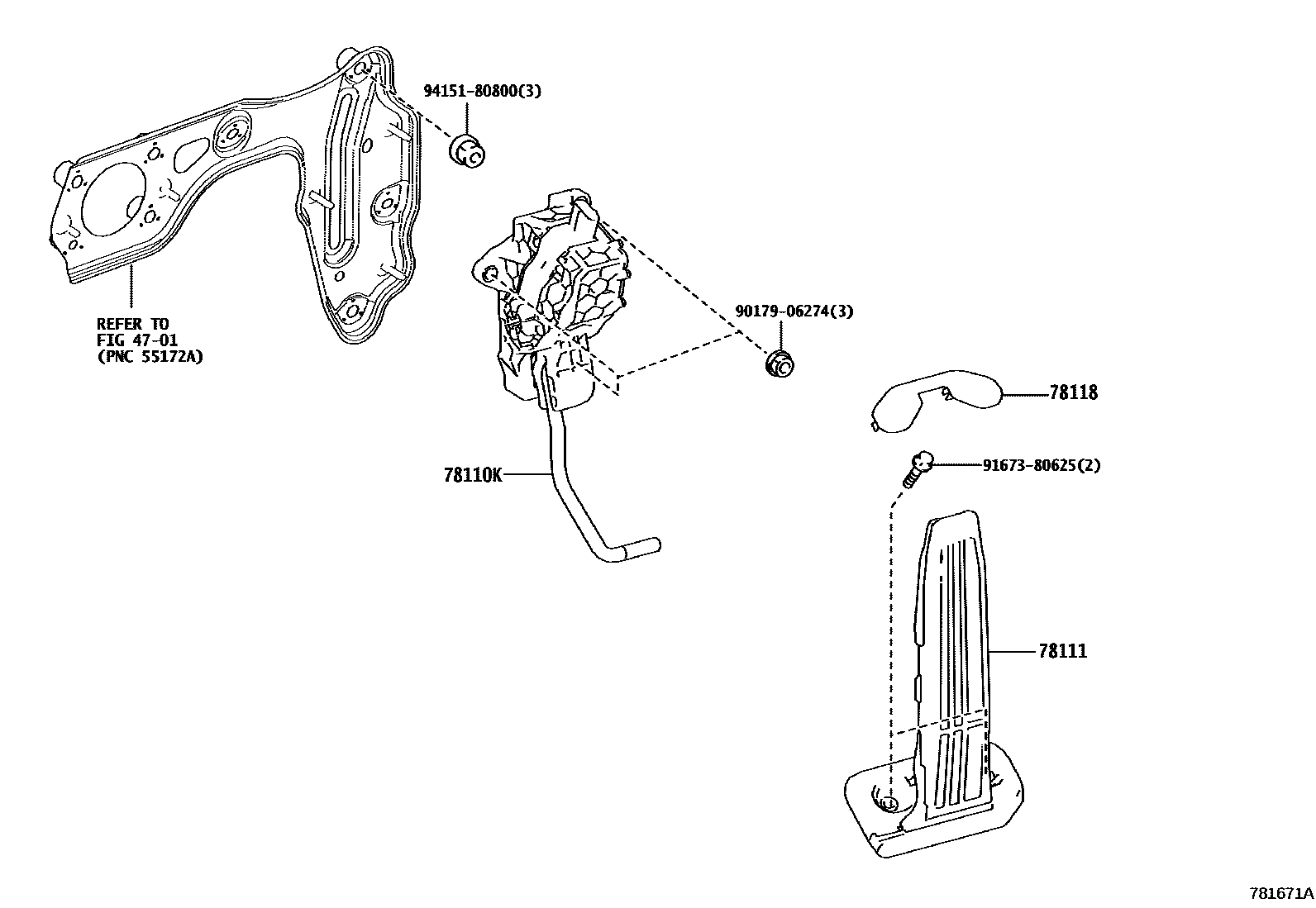

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11030iURZ100..LHD202007-202009

sub78110-11031

main78110-11031iURZ100..LHD202010

main78110-11040iURZ100..RHD202007-202009

sub78110-11041

main78110-11041iURZ100..RHD202010

78111PEDAL, ACCELERATOR

main78101-11010iURZ100202007

78118PAD, ACCELERATOR PEDAL

main78117-11010iURZ100202007

9017906274

main90179-06274

9167380625

main91673-80625

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
