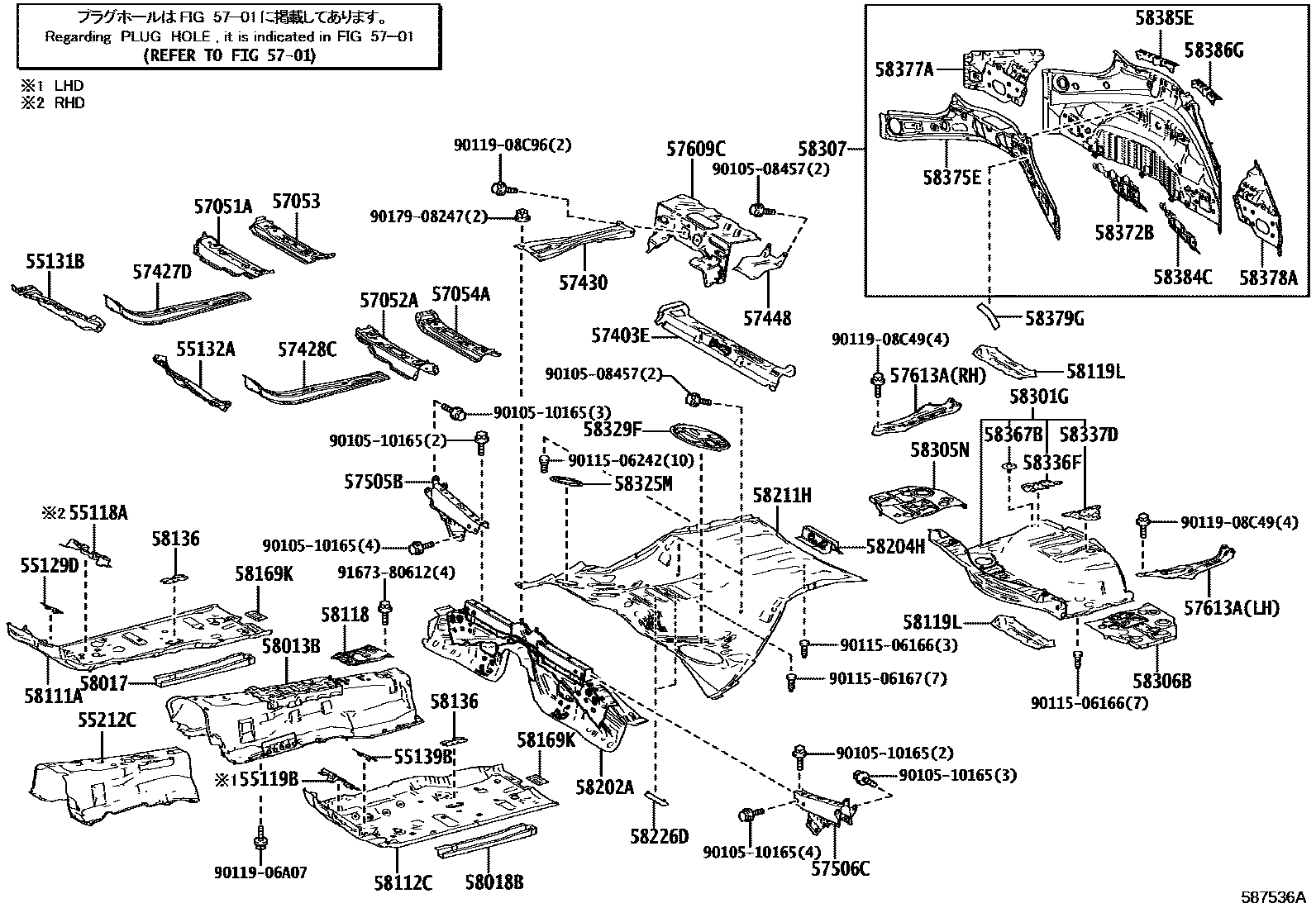

FLOOR PAN & LOWER BACK PANEL

55118AEXTENSION, DASH PANEL, RH

main55118-11011iURZ100..RHD202007

55119BEXTENSION, DASH PANEL, LH

main55119-11010iURZ100..LHD202007

55129DCOVER, DASH PANEL HOLE, RH

main55129-11010iURZ100202007

55131BREINFORCEMENT, TOE BOARD, RH

main55131-11010iURZ100202007

55132AREINFORCEMENT, TOE BOARD, LH

main55132-11010iURZ100202007

55139BCOVER, DASH PANEL HOLE, LH

main55139-11010iURZ100202007

55212CSILENCER, FRONT PANEL, LOWER

main55212-11010iURZ100202007

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-11010iURZ100202007

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-11010iURZ100202007

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-11010iURZ100202007

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-11010iURZ100202007

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-11011iURZ100202007

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-11010iURZ100202007

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-11010iURZ100202007

57430MEMBER ASSY, CENTER FLOOR CROSS

main57430-11010iURZ100202007

57448RETAINER, CENTER FLOOR CROSSMEMBER

main57448-11010iURZ100202007

57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH

main57505-11010iURZ100202007

57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

main57506-11010iURZ100202007

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-11020iURZ100202007

57613AMEMBER, REAR FLOOR SIDE CENTER

main57613-11020iURZ100202007

RH

main57614-11020iURZ100202007

LH

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-11900iURZ100202007-202205

sub58013-11901

sub90950-01931

main58013-11901iURZ100202205

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-11011iURZ100202007

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58017-11011iURZ100202007

58111APAN, FRONT FLOOR, RH

main58111-11040iURZ100202007

58112CPAN, FRONT FLOOR, LH

main58112-11030iURZ100202007

58118PANEL, FRONT FLOOR, REAR LOWER CENTER

main58118-11010iURZ100202007

58119LPLATE, REAR FLOOR SIDE

main58348-11010iURZ100202007-202210

sub58348-11011

main58348-11011iURZ100202211

58136COVER, FRONT FLOOR HOLE

main58136-11010iURZ100202007

58169KPATCH, FRONT FLOOR, REAR

main58169-11010iURZ100202007

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-11050iURZ100202007

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-11010iURZ100202007

58211HPAN, CENTER FLOOR

main58211-11904iURZ100202007

58226DPATCH, BRACKET CENTER MOUNTING

main58226-50010iURZ100202007

58301GPAN SUB-ASSY, REAR FLOOR

main58301-11902iURZ100202007

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-11020iURZ100202007

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-11010iURZ100202007

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-11040iURZ100202007

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-50040iURZ100202007

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-50030iURZ100202007

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-11020iURZ100202007

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-11020iURZ100202007

58367BBRACKET, FUEL TUBE

main58367-12020iURZ100202007

58372BPANEL, BODY LOWER BACK, LOWER

main58372-11030iURZ100202007

58375EREINFORCEMENT, BODY LOWER BACK PANEL

main58375-11020iURZ100202007

58377APANEL, BODY LOWER BACK, RH

main58377-11010iURZ100202007

58378APANEL, BODY LOWER BACK, LH

main58378-11010iURZ100202007

58379GPAD, BODY LOWER BACK

main58379-11020iURZ100202007

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-11020iURZ100202007

58385EBRACKET, REAR BUMPER COVER, RH

main58385-53040iURZ100202007

58386GBRACKET, REAR BUMPER COVER, LH

main58386-53020iURZ100202007

9010508457

main90105-08457

9010510165

main90105-10165

9011506166

main90115-06166

9011506167

main90115-06167

9011506242

main90115-06242

9011906A07

main90119-06A07

9011908C49

main90119-08C49

9011908C96

main90119-08C96

9017908247

main90179-08247

9167380612

main91673-80612

61 parts on this diagram · 1 diagram in section
