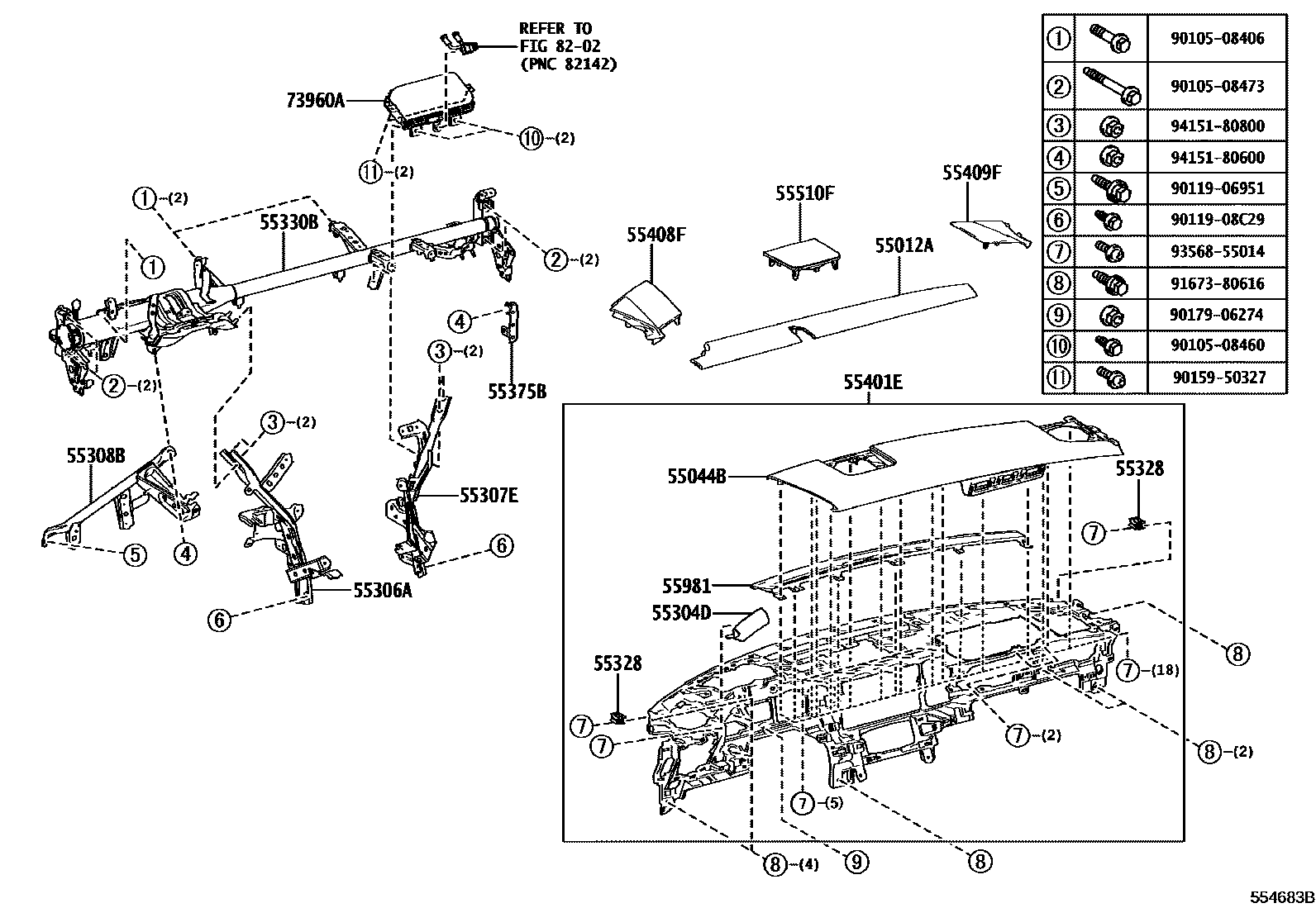

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55012AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

main55012-11030-C2iURZ100..LHD202007

BLACK,TRIM2#,3#

main55012-11030-E2iURZ100..LHD202007

OCHRE,TRIM4#

main55012-11030-J1iURZ100..LHD202007

BLUE,TRIM0#

main55012-11040-C2iURZ100..RHD202007

BLACK,TRIM2#,3#

main55012-11040-E2iURZ100..RHD202007

OCHRE,TRIM4#

main55012-11040-J1iURZ100..RHD202007

BLUE,TRIM0#

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-11010-C1iURZ100..LHD202007-202202

BLACK,TRIM2#,3#

main55044-11010-C1iURZ100..LHD202202

BLACK,TRIM20,3#

main55044-11010-C5iURZ100..LHD202202

BLACK/RED,TRIM23

main55044-11010-E1iURZ100..LHD202007

OCHRE,TRIM4#

main55044-11010-J0iURZ100..LHD202007

BLUE,TRIM0#

main55044-11030-C1iURZ100..RHD202007-202202

BLACK,TRIM2#,3#

main55044-11030-C1iURZ100..RHD202202

BLACK,TRIM20,3#

main55044-11030-C5iURZ100..RHD202202

BLACK/RED,TRIM23

main55044-11030-E1iURZ100..RHD202007

OCHRE,TRIM4#

main55044-11030-J0iURZ100..RHD202007

BLUE,TRIM0#

55304DPANEL SUB-ASSY, INSTRUMENT, MAIN

main55304-11010-C1iURZ100..LHD202202

BLACK,TRIM20,3#

main55304-11010-C1iURZ100..LHD202007-202202

BLACK,TRIM2#,3#

main55304-11010-C5iURZ100..LHD202202

BLACK/RED,TRIM23

main55304-11010-E1iURZ100..LHD202007

OCHRE,TRIM4#

main55304-11010-J0iURZ100..LHD202007

BLUE,TRIM0#

main55304-11020-C1iURZ100..RHD202007-202202

BLACK,TRIM2#,3#

main55304-11020-C1iURZ100..RHD202202

BLACK,TRIM20,3#

main55304-11020-C5iURZ100..RHD202202

BLACK/RED,TRIM23

main55304-11020-E1iURZ100..RHD202007

OCHRE,TRIM4#

main55304-11020-J0iURZ100..RHD202007

BLUE,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-11030iURZ100..LHD202007

main55306-11040iURZ100..RHD¥2,460202007

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-11030iURZ100..LHD202007

main55307-11040iURZ100..RHD¥2,750202007

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-11030iURZ100..LHD202007-202210

sub55308-11031

main55308-11031iURZ100..LHD202211

main55308-11040iURZ100..RHD¥2,780202007-202210

sub55308-11041¥2,520

main55308-11041iURZ100..RHD¥2,520202211

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iURZ100¥340202007

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-11050iURZ100..LHD202007

main55330-11060iURZ100..RHD¥19,600202007

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-11030iURZ100..LHD202007

main55375-11040iURZ100..RHD¥610202007

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-11040-C2iURZ100..LHD202202

BLACK,TRIM20,3#

main55401-11040-C2iURZ100..LHD202007-202202

BLACK,TRIM2#,3#

main55401-11040-C6iURZ100..LHD202202

BLACK/RED,TRIM23

main55401-11040-E2iURZ100..LHD202007

OCHRE,TRIM4#

main55401-11040-J1iURZ100..LHD202007

BLUE,TRIM0#

main55401-11050-C2iURZ100..RHD202202

BLACK,TRIM20,3#

main55401-11050-C2iURZ100..RHD202007-202202

BLACK,TRIM2#,3#

main55401-11050-C6iURZ100..RHD202202

BLACK/RED,TRIM23

main55401-11050-E2iURZ100..RHD202007

OCHRE,TRIM4#

main55401-11050-J1iURZ100..RHD202007

BLUE,TRIM0#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-11010-C6iURZ100..LHD202007

BLACK,TRIM2#,3#

main55408-11010-E6iURZ100..LHD202007

OCHER,TRIM4#

main55408-11010-J5iURZ100..LHD202007

BLUE/WHITE,TRIM0#

main55408-11020-C6iURZ100..RHD202007

BLACK,TRIM2#,3#

main55408-11020-E6iURZ100..RHD202007

OCHER,TRIM4#

main55408-11020-J5iURZ100..RHD202007

BLUE/WHITE,TRIM0#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-11010-C6iURZ100..LHD202007

BLACK,TRIM2#,3#

main55409-11010-E6iURZ100..LHD202007

OCHER,TRIM4#

main55409-11010-J5iURZ100..LHD202007

BLUE/WHITE,TRIM0#

main55409-11020-C6iURZ100..RHD202007

BLACK,TRIM2#,3#

main55409-11020-E6iURZ100..RHD202007

OCHER,TRIM4#

main55409-11020-J5iURZ100..RHD202007

BLUE/WHITE,TRIM0#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-11010-C2iURZ100202007

BLACK,TRIM2#,3#

main55510-11010-E1iURZ100202007

OCHRE,TRIM4#

main55510-11010-J1iURZ100202007

BLUE,TRIM0#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-11010-C1iURZ100..LHD202007

BLACK,TRIM2#,3#

main55981-11010-E1iURZ100..LHD202007

OCHRE,TRIM4#

main55981-11010-J1iURZ100..LHD202007

BLUE,TRIM0#

main55981-11020-C1iURZ100..RHD202007

BLACK,TRIM2#,3#

main55981-11020-E1iURZ100..RHD202007

OCHRE,TRIM4#

main55981-11020-J1iURZ100..RHD202007

BLUE,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-11010iURZ100..LHD202007

main73960-11020iURZ100..RHD¥75,600202007

8202

9010508406

main90105-08406¥80

9010508460

main90105-08460¥80

9010508473

main90105-08473¥100

9011906951

main90119-06951¥80

9011908C29

main90119-08C29¥80

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

27 parts on this diagram · 8 diagrams in section
