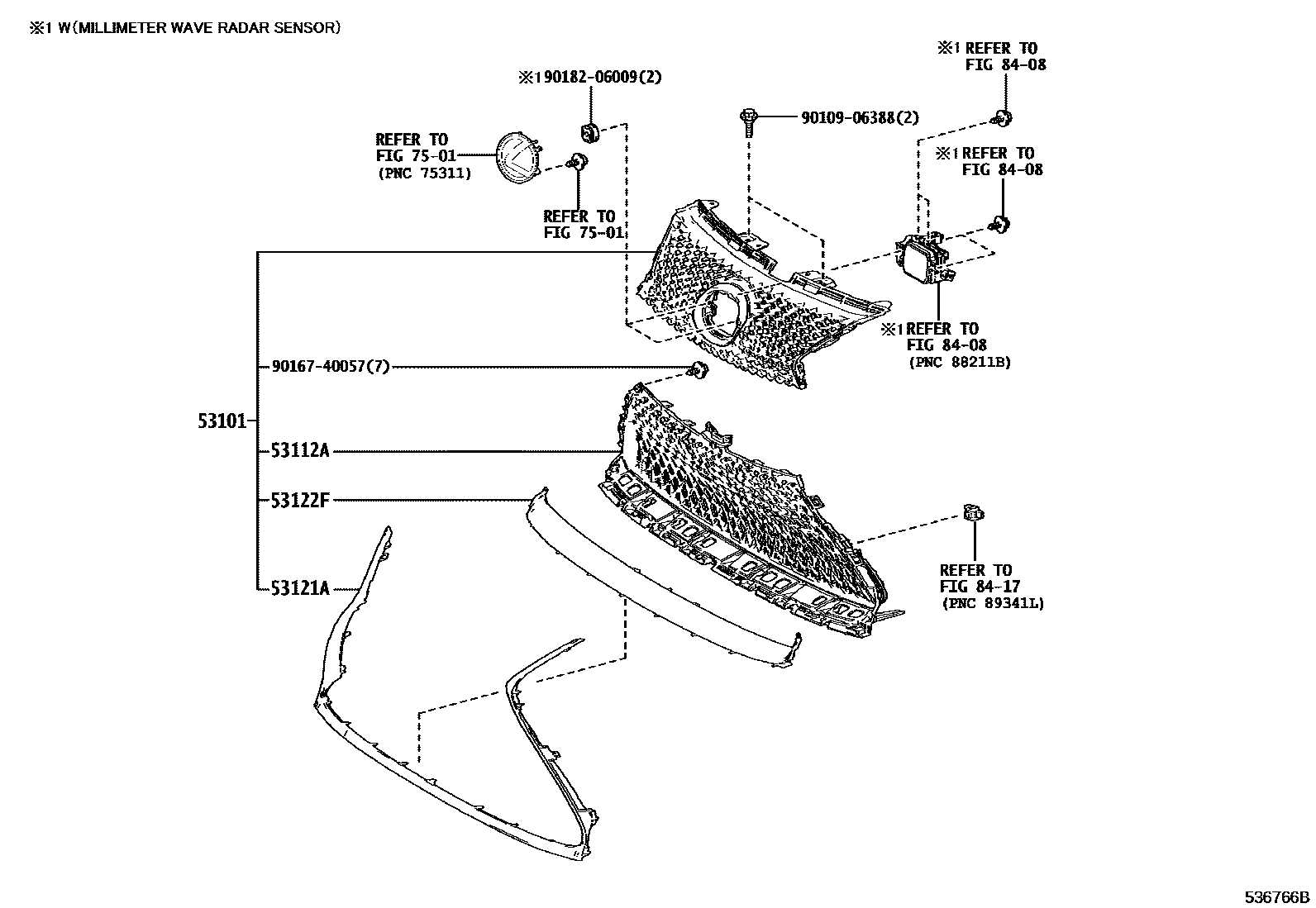

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

PLATED,AZERBAIJAN SPEC

PLATED,"UNWIND"*(E)&HEADLAMP-LED & WITH(*AHB) & UNWIND

53112AGRILLE, RADIATOR, LOWER

main53112-11906i202111-202210

AZERBAIJAN SPEC& PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND&BLIND SPOT MONITOR-WITHOUT

53121AMOULDING, RADIATOR GRILLE

main53121-11020i202111-202210

AZERBAIJAN SPEC&BLIND SPOT MONITOR-WITHOUT

AZERBAIJAN SPEC& PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND

53122FMOULDING, RADIATOR GRILLE, NO.2

AZERBAIJAN SPEC

PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND

7501

8408

8417

9010906388

9016740057

9018206009

10 parts on this diagram · 1 diagram in section
