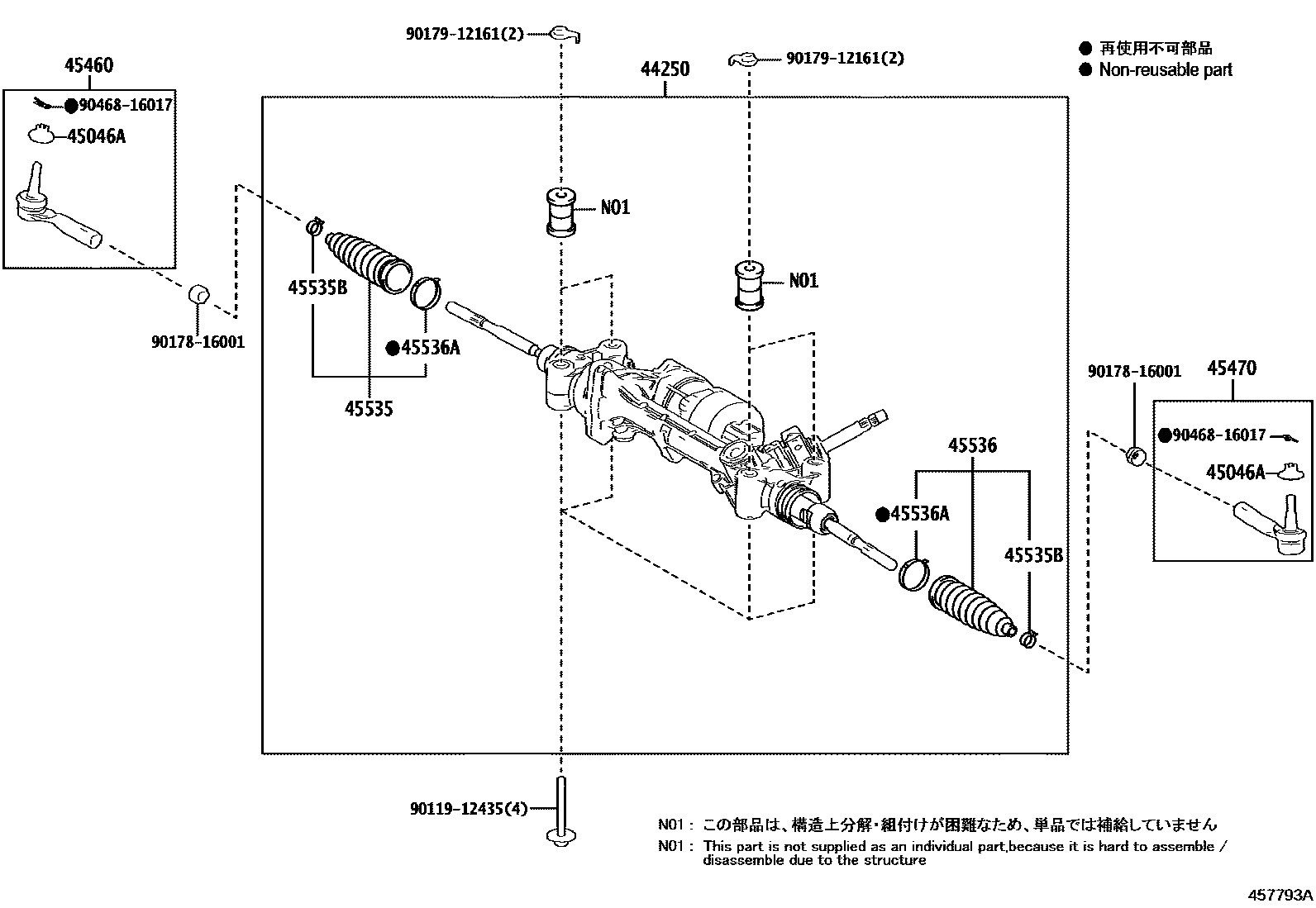

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-11090iURZ100..LHD202007-202111

main44250-11091iURZ100..LHD202111

main44250-11100iURZ100..RHD202007-202111

main44250-11101iURZ100..RHD202111

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iURZ100202007

45460ROD ASSY, TIE, RH

main45460-19255iURZ100202007

45470ROD ASSY, TIE, LH

main45470-19085iURZ100202007

45535BOOT, STEERING RACK, NO.1

main45535-19005iURZ100202007

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iURZ100202007

45536BOOT, STEERING RACK, NO.2

main45535-19005iURZ100202007

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iURZ100202007

9011912435

main90119-12435

9017816001

main90178-16001

9017912161

main90179-12161

9046816017

main90468-16017

12 parts on this diagram · 2 diagrams in section
